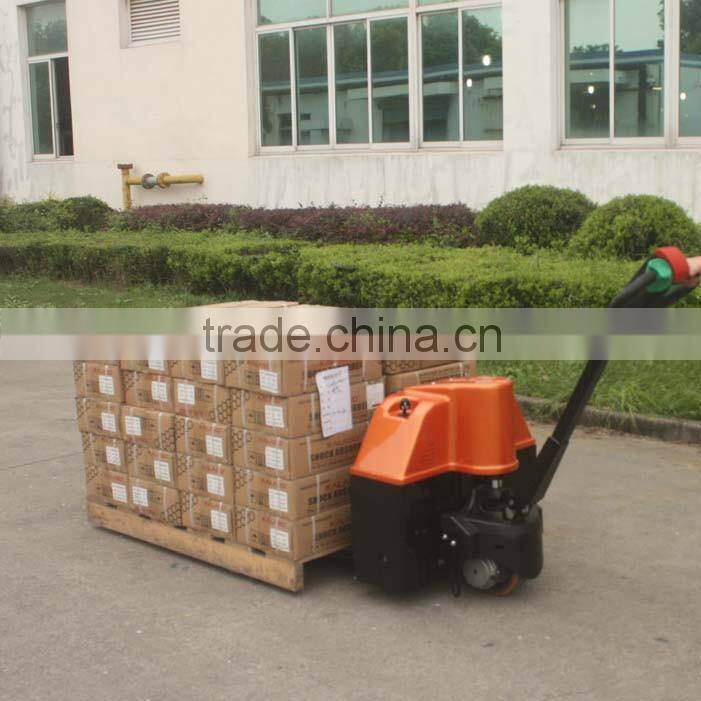

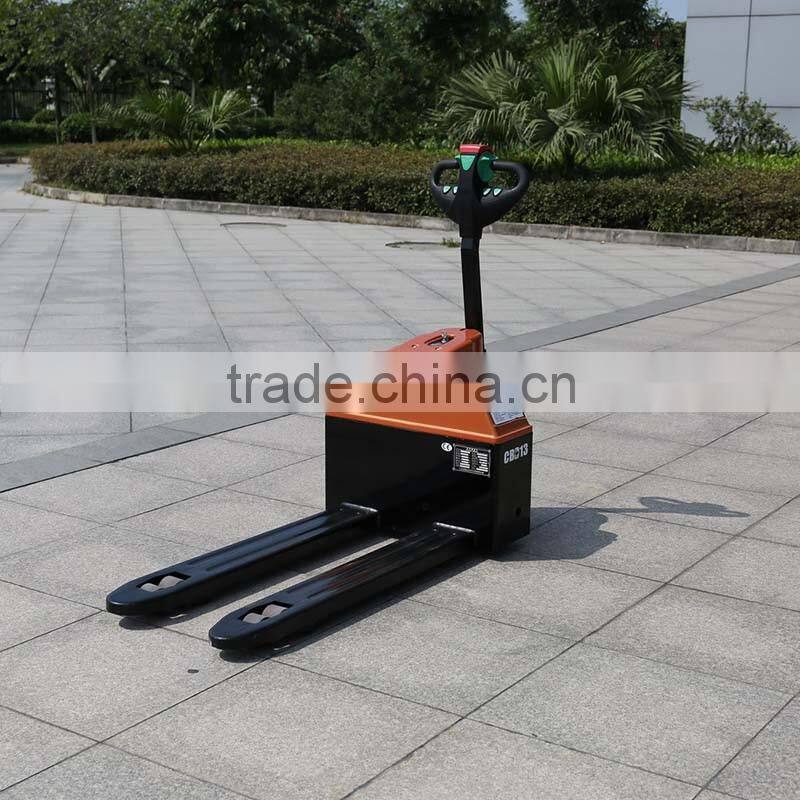

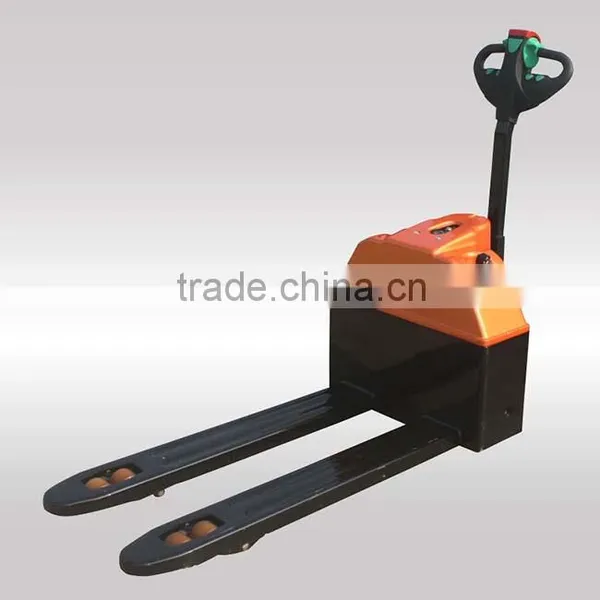

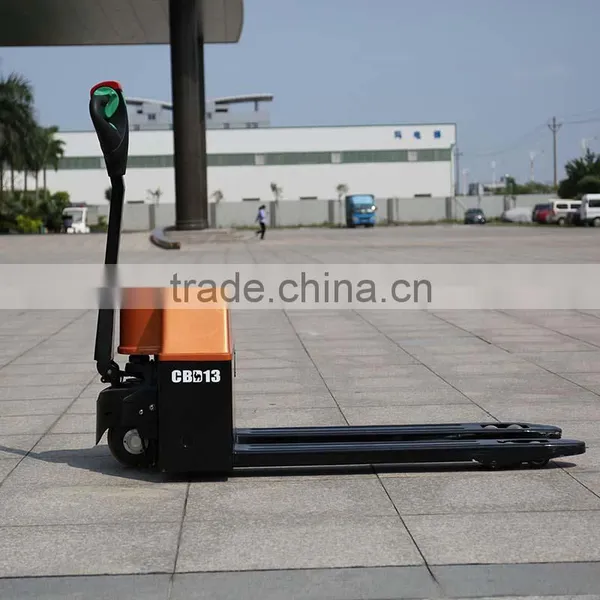

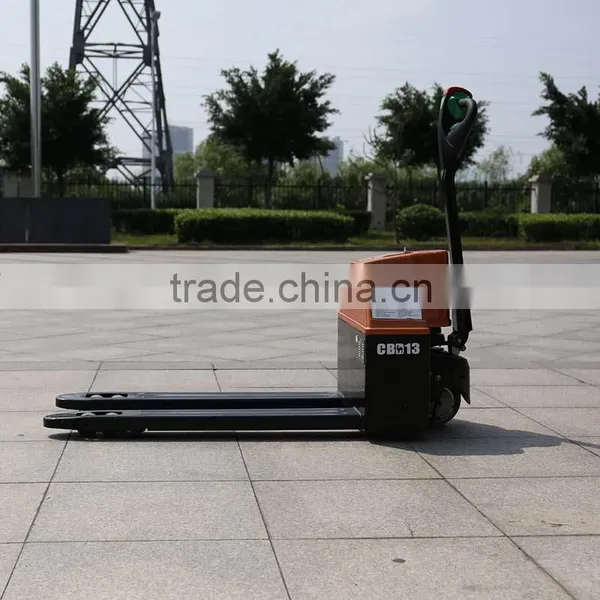

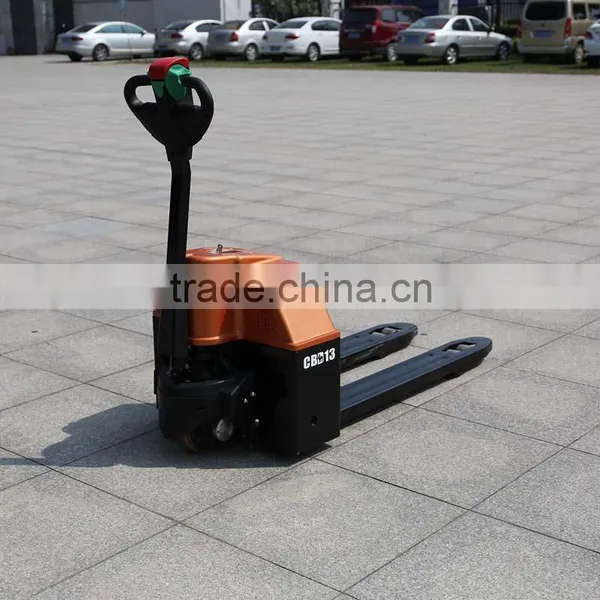

High Quality Pallet Lifter 1.5 Ton Full Electric Pallet Truck (CBD15)
Negotiable
/ Unit
1 Unit(Min.Order)
- 500 Unit / Units per Month
- shanghai
- T/T
You May Like
Product Details
| Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | Marshell |
| Model Number: | CBD15 | Type: | Powered Pallet Truck | Power Souce: | AC Motor |
| Rated Loading Capacity: | 1500 | Max. Lifting Height: | 205mm | Min. Lifting Height: | 85mm |
| Fork Length: | 1322mm | Fork Width: | 540/685 | Overall Dimensions: | 1608x685x1260mm |
| Certification: | CE | After-sales Service Provided: | Overseas third-party support available |
Product Description
High Quality Pallet Lifter 1.5 Ton Full Electric Pallet Truck (CBD15)
Main configuration
1, the dc permanent magnet motor
2, 24 v / 75 ah and maintenance-free lead-acid batteries
3, Curtis controller/meter
4, built-in full voltage charger
5, high strength and a integrated ChaJiao
6 power, electromagnetic brake, safe and reliable
suitable mode
1, relatively flat cement or similar hard pavement
2, suitable for single pallets
3, is suitable for low and middle frequency cargo handling
4, working time is about 5 hours
TIPS
Does not apply to contain flammable and explosive gas or dust
High Quality Pallet Lifter 1.5 Ton Full Electric Pallet Truck (CBD15)
| Model | CBD15 | |||
| Load capacity | Q(kg) | 1500 | ||
| Load centre distance | c(mm) | 600 | ||
| Overall length | I1(mm) | 1608 | ||
| Overall width | b1(mm) | 685 | ||
| Height of tiller in drive position min./max. | h14(mm) | 920/1260 | ||
| Fork height,lowered | h13(mm) | 85 | ||
| Max.lift height | h3(mm) | 205 | ||
| Minimum ground clearance | m2(mm) | 35 | ||
| Wheelbase | y(mm) | 1322 | ||
| Width overall forks | b5(mm) | 540/685 | ||
| Fork width | e(mm) | 160 | ||
| Front tread | b11(mm) | 380/525 | ||
| Max.lift speed | unladen | mm/s | 35 | |
| laden | mm/s | 30 | ||
| Max. travel speed | unladen | km/h | 4 | |
| laden | km/h | 3.5 | ||
| Turning radius | Wa(mm) | 1475 | ||
| Max. gradability,laden | % | 3 | ||
| Max. gradability,unladen | % | 10 | ||
| Service weight(with battery) | kg | 210 | ||
| Battery capacity(optional) | Ah | 75/80 | ||
| Battery voltage | V | 24 | ||
| Aisle width for lengthways | Pallets 1000x1200 | Ast(mm) | 1950 | |
| Pallets 800x1200 | Ast(mm) | 1900 | ||
High Quality Pallet Lifter 1.5 Ton Full Electric Pallet Truck (CBD15)
