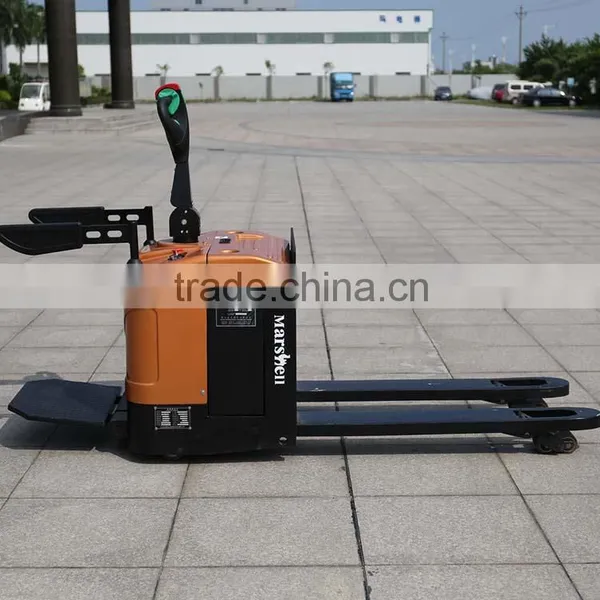

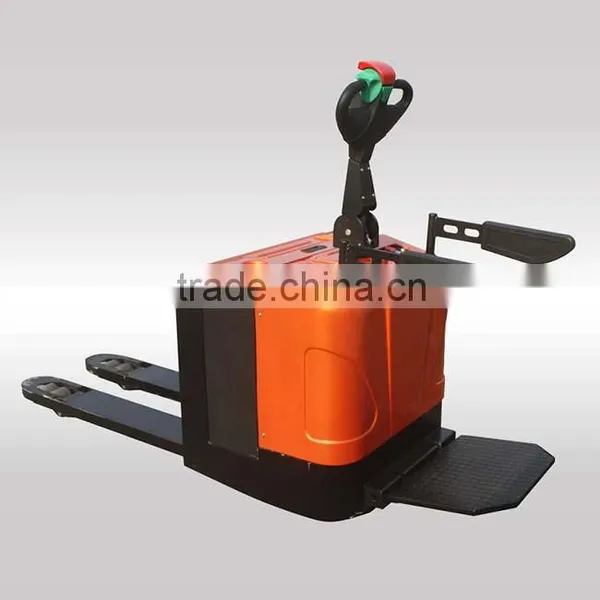

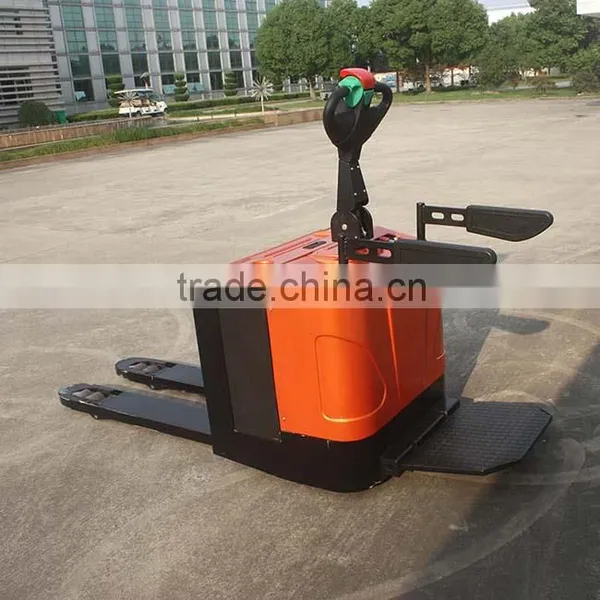

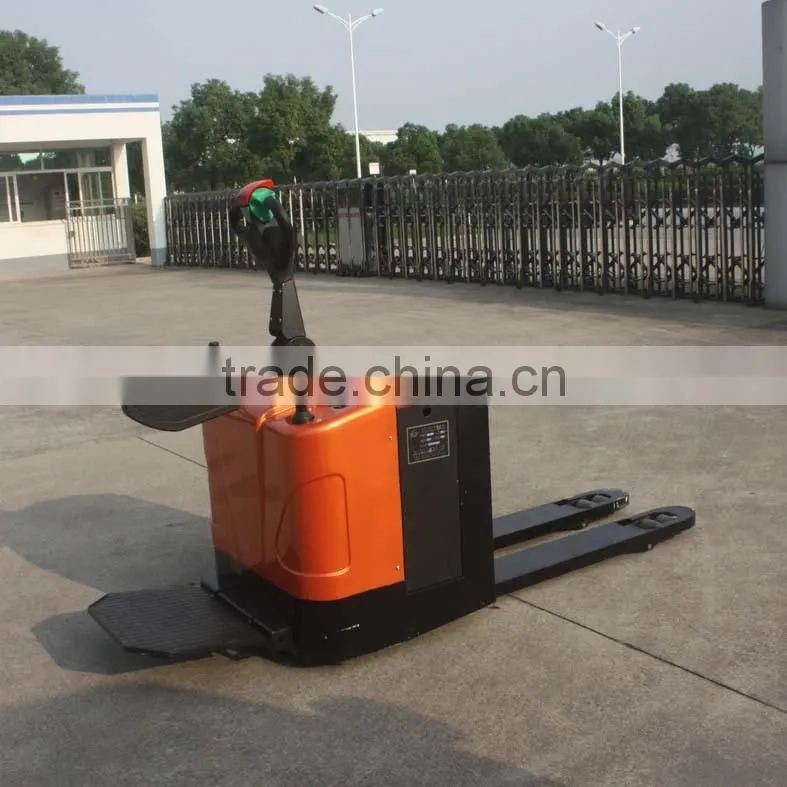

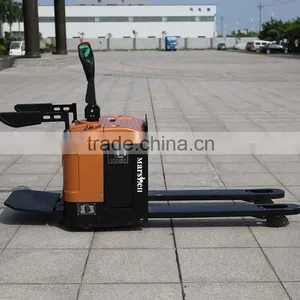

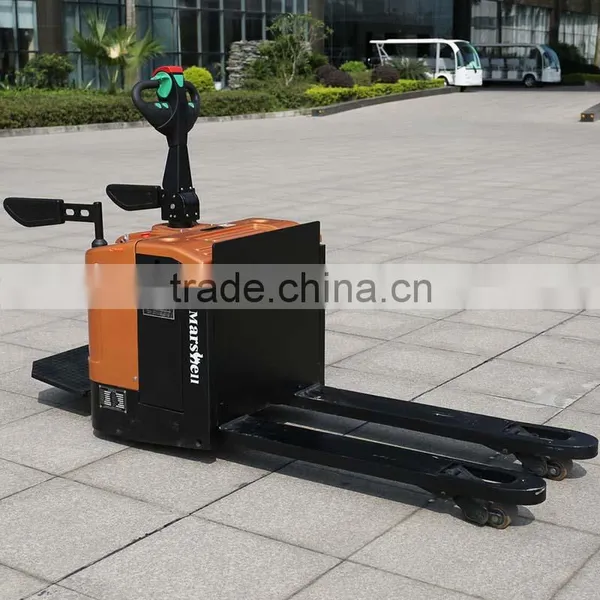

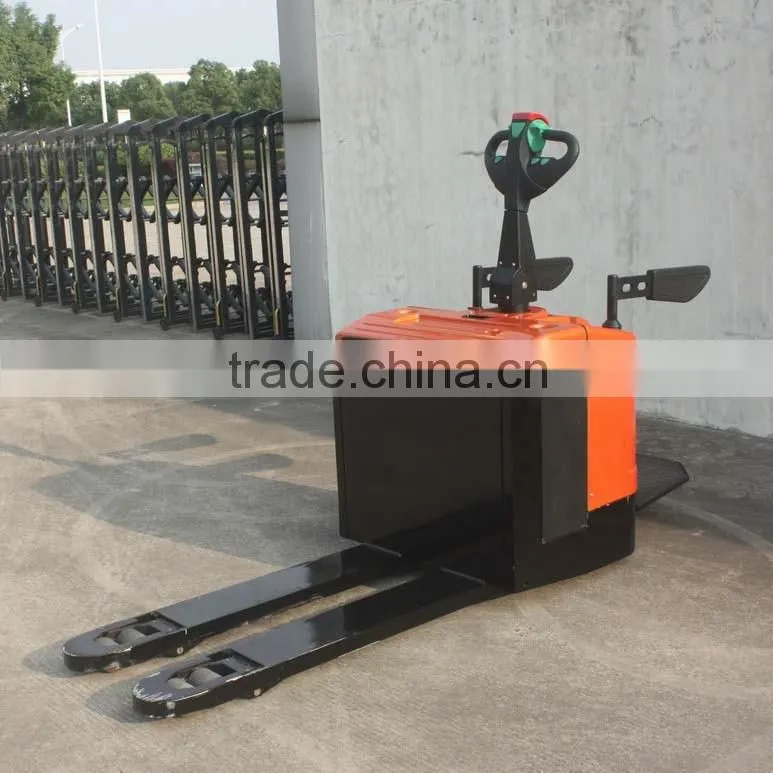

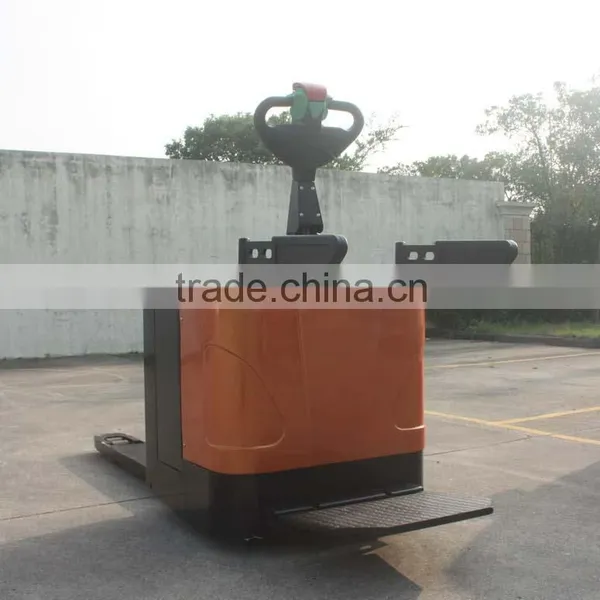

CE Approval 2.5 Ton Full Electric Pallet Truck (CBD25)
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Marshell
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marshell Brand 2 Ton Power Electric Pallet Truck (CBD20)NegotiableMOQ: 1 Unit -
Electric Powered Pallet Truck 2 Ton and 2.5 Ton Capacity (CBD20)NegotiableMOQ: 1 Unit
-
2.0ton Pallet Forklift Electric Power Pallet Truck (CBD20)NegotiableMOQ: 1 Unit
-
Electric Powered Pallet Truck 2 Ton and 3.0 Ton Capacity (CPD30)NegotiableMOQ: 1 Unit
-
Reach Forklift 3.0t Electric Reach Forklift Hot Sale (CPD30)NegotiableMOQ: 1 Unit
Condition
New
Place of Origin
Shanghai, China
Brand Name
Marshell
Model Number
CBD25
Type
Powered Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
2500
Max. Lifting Height
205mm
Min. Lifting Height
85mm
Fork Length
1492mm
Fork Width
550mm
Overall Dimensions
2300x790x1450mm
Certification
CE
After-sales Service Provided
Overseas third-party support available
CE Approval 2.5 Ton Full Electric Pallet Truck (CBD25)
Main configuration
1 maintenance-free AC drive system
2, the electronic steering system
3,24V / 270Ah capacity of lead-acid batteries
4, Curtis AC controller
5, imported hydraulic power unit
6, can quickly replace the battery side pull structure
suitable mode
1, relatively flat cement or similar hard surface
2, suitable for single pallet cargo handling
3, for high frequency, heavy load cargo handling
4, the working time of about 6 hours
TIPS
Does not apply to contain flammable and explosive gas or dust
CE Approval 2.5 Ton Full Electric Pallet Truck (CBD25)
| Item | Parameters | unit | |
| Rated Loading | 2500 | kg | |
| Loading center distance | 600 | mm | |
| Overall Length | 2302 | mm | |
| Overall Width | 790 | mm | |
| Height(handle) | 1497 | mm | |
| The minimum height of fork | 85 | mm | |
| Fork maximum lifting distance | 205 | mm | |
| Ground Clearance | 25 | mm | |
| front wheel tread | 365 | mm | |
| Wheelbase | 1492 | mm | |
| Fork outside spacing | 550 | mm | |
| Fork inside spacing | 180 | mm | |
| Maximum lifting speed | without loading | 25 | mm/s |
| full loading | 20 | mm/s | |
| Maximum running speed | without loading | 6 | km/h |
| full loading | 6 | km/h | |
| Minimum outside turning radius | 1475 | mm | |
| Full-load maximum gradeability | 5 | % | |
| No-load maximum gradability | 8 | % | |
| Weight(without loading) | 680 | kg | |
| Battery | 24/270 | V/Ah | |
CE Approval 2.5 Ton Full Electric Pallet Truck (CBD25)
