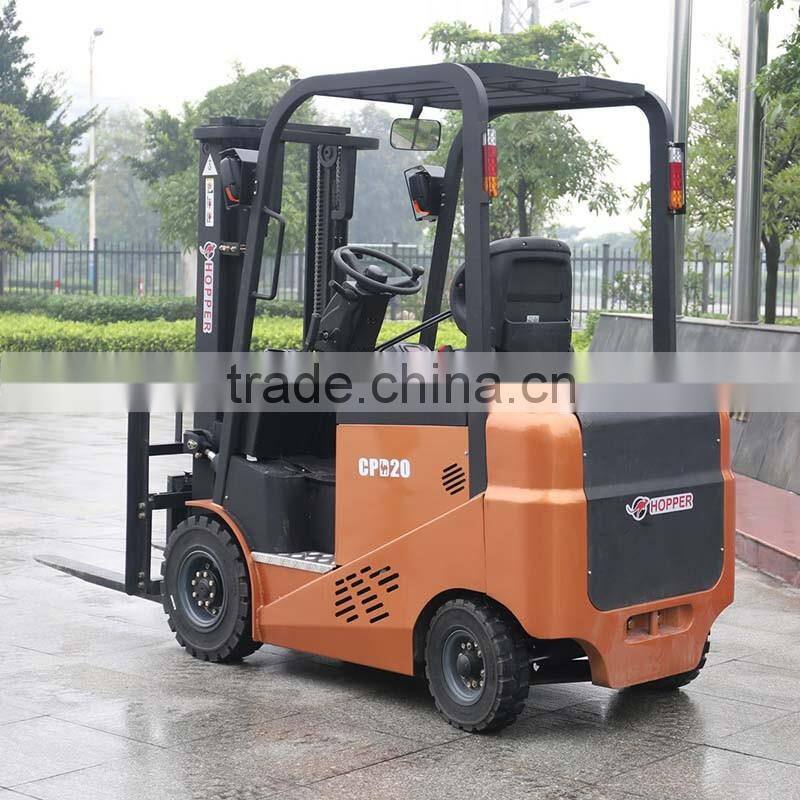

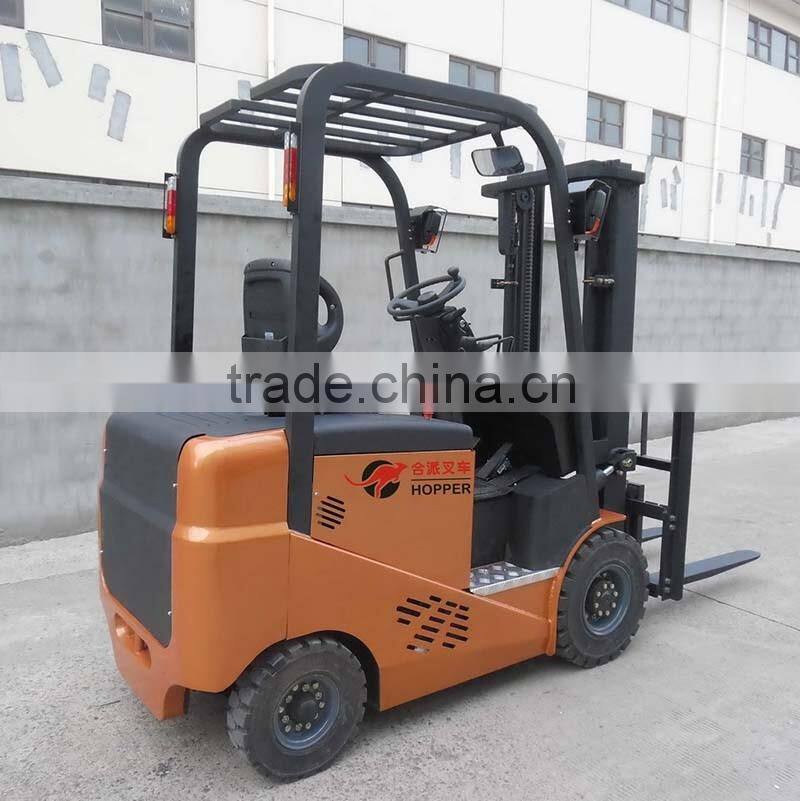

CE Approved 2.0 Ton Loading Capacity Electric Forklift (CPD20E)
1 full exchange system control precision, smooth running, driving speed 15km / h, climbing up to 14%
at full load, Lifting speeds up to 370mm / s
2, high-performance hydraulic system, low noise, small vibration, high efficiency
3,80V / 500Ah industrial battery, powerful lasting, most enterprises to meet the high frequency,
high efficiency, demand for goods handling;
4, overhead guard and body welding the overall structure, the overall strength.
5, low noise gear pumps, multi-stage motor speed control, fall protection solenoid valves;
built-in safety valve lift cylinder.
6, suitable for indoor and outdoor operation, less demanding on the ground.
1, human-oriented design of the control handle, easy to operate hand movements, improving driving comfort;
2, load sensing hydraulic steering system, lightweight, low noise, more effort;
3, wide view mast design, the view is clear, lifting height of 3-6 meters.
4, good regenerative braking process to avoid damage to the goods.
1 controller with overvoltage, overcurrent protection features, high-temperature, short circuit;
2, emergency off switch, you can quickly cut off the vehicle power supply
3, lifting the bottom of the fuel tank explosion-proof valve is installed, immediate pipeline rupture,
the door frame is not rapid decline
4, intelligent design improves cornering stability of the vehicle deceleration when walking to avoid tipping
cargo. (Optional)
5, OPS driver's presence sensing system; When the driver leaves the position after the operation to
cut off all operating functions, to avoid misuse brings security risks.
CE Approved 2.0 Ton Loading Capacity Electric Forklift (CPD20E)
| Model | CPD20E | |||
| Load capacity/rated load Q | kg | 2000 | ||
| Overall length(without fork)L′ | mm | 2210 | ||
| Overall width W | mm | 1070 | ||
| Height, mast extended H1 | mm | 2120 | ||
| Height of overhead guard H4 | mm | 2180 | ||
| height when lift H2 | mm | 3995 | ||
| Minimum ground clearance | Height, mast lowered H5 | mm | 120 | |
| Ground clearance,unladen/laden,centre of wheelbase H6 | mm | 125 | ||
| wheel tread | Front W3 | mm | 890 | |
| Rear W2 | mm | 920 | ||
| Wheelbase L1 | mm | 1400 | ||
| Load distance,centre of drive axle to fork L2 | mm | 430 | ||
| Lift height H | mm | 3000 | ||
| Free lift height H3 | mm | 100 | ||
| Mast tilt angle front/rear α/β | ° | 6/8 | ||
| Max.lift speed | unladen | mm/s | 400 | |
| laden | mm/s | 260 | ||
| Max.travel speed | unladen | km/h | 14 | |
| laden | km/h | 12 | ||
| Turning radius R | mm | 2010 | ||
| Max. gradability,laden | % | 15 | ||
| Load centre distance C | mm | 500 | ||
| Service weight(unladen) | kg | 3200 | ||
| Tyre | Front | 6.50-10(solid tyre) | ||
| Rear | 5.00-8(solid tyre) | |||
| Motor | Drive | KW | 8 | |
| Lift | KW | 7.5 | ||
| Battery | V/Ah | 48/450 | ||
| Type of drive control | full AC | |||
CE Approved 2.0 Ton Loading Capacity Electric Forklift (CPD20E)
