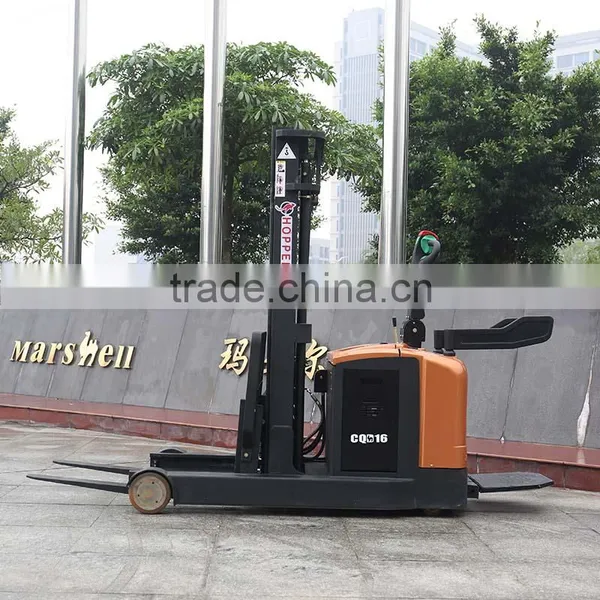

China OEM Supplier Forklift Truck Electric Reach Stacker (CQD16)

Name: China OEM Supplier Forklift Truck Electric Reach Stacker (CQD16)
Brand: Marshell
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 500 Unit / Units per Month
Port shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Shanghai, China	Brand Name:	Marshell
Model Number:	CQD16	Type:	Manual Pallet Truck	Power Souce:	AC Motor
Rated Loading Capacity:	1600KG	Max. Lifting Height:	3000mm	Min. Lifting Height:	80mm
Fork Length:	2320MM	Fork Width:	1035MM	Overall Dimensions:	100/40/1070MM
Certification:	CE	After-sales Service Provided:	Overseas third-party support available

Product Description

China OEM Supplier Forklift Truck Electric Reach Stacker (CQD16)

Main configuration

1, maintenance-free ac drive system
2, electronic steering system
3, 24 v / 270 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs

suitable mode

1. Vertical driving wheel, driving efficiency, easy installation & maintenance.

2. Compact struture and low gravity.

3. Tilting system forks easy for loading and stacking.

TIPS

Does not apply to contain flammable and explosive gas or dust

Model	CQD10	CQD16	CQD20
Loading capacity	1000KG	1600KG	2000KG
Loading center distance	500MM	500MM	500MM
Wheelbase	1100MM	1400MM	1500MM
Servise weight (with battery)	1500KG	1600KG	2500KG
Tyre size, drving wheel	230/75MM	230/75MM	230/75MM
Tyre size, loading wheel	180/55MM	210/85MM	210/85MM
Tyre size, balance wheel	130/55MM	130/55MM	130/55MM
Driving wheel+Loading wheel/Balance wheel	1+2/2	1+2/2	1+2/2
Front overhang	100mm	130mm	130mm
Lift height	2500/3000mm	3500/4000mm	4500/5000mm
Height of triller in drive position min./max.	1100/1400mm	1100/1400mm	1100/1400mm
Height, mast lowered	1725/1925mm	2225/2475mm	2015/2240mm
Overall lengh	2250MM	2320MM	2420MM
Overall width	1000MM	1035MM	1035MM
Turn radius	1350MM	1640MM	1760MM
Fork dimensions	100/35/1070MM	100/40/1070MM	100/40/1070MM
Fork carriage width	200-725mm	200-725mm	200-725mm
Aisle width for pallets 1000*1200 crossways	2500mm	2800mm	2900m
Aisle width for pallet 800*1200 crossways	2650MM	2950MM	3050MM
Reach distance	350mm	470mm	470mm
Travel speed(laden/unladen)	4/5KM/H	4/5KM/H	4/5KM/H
Lift speed(laden/unladen)	30/50MM/S	25/45MM/S	18/40MM/S
Max. gradeability(laden/unladen)	5/8%	5/8%	5/8%
Driving motor	1.5KW	1.5KW	1.5KW
Lift Motor	2.2KW	3KW	3KW
Battery volts./Cap.	24V 240AH	24V 240AH	24V 240AH
Container qty (20FT/40FT/40HQ)	4/8/8PCS	4/8/8PCS	4/8/8PCS
