Home > Products > FUME EXTRACTION SYSTEMS > Pure-Air 1500M3/H Hot Sales 3D Printing Fume Extractor For Printing
Pure-Air 1500M3/H Hot Sales 3D Printing Fume Extractor For Printing
USD $1,600 - $2,000
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- ShenZhen; HongKong
- Credit Card
You May Like
- Charcoal Grill Barbecue Stove with Smoke Elimination Effects
- Natural gas purifier for oil and gas gathering and transportation
- OD 150mm 20um Titanium Aeration Head for Ozone Sparger
- SCR Systems For Gas Turbines
- 316L Sintered Stainless Steel Hydrogen Dissolving Stone
- SS 316L Diffuser Stone For Ozone Generator Food Grade
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Pure-Air | Model Number: | PA-1500FS |
Product Description
1500M3/H Hot Sales 3D Printing Fume Extractor For Printing Process
1. Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet.
2. Specific sound-absorbing materials reduce operating noise to improve operation efficiency.
3. This fume extractor use China blower, high pressure, low noise. It can effectively absorb particle and extend filter life of less power.
4. PA-1500FS filtration system consist of four parts, they are metal filter, F5 class pre-filter, HEPA main filter and gas filter.

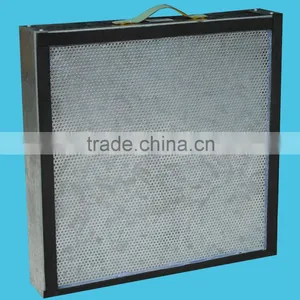

(a). Well-proportioned holes to ensure that large dust particles are trapped on the metal filter, to prevent them block the pre-filter.

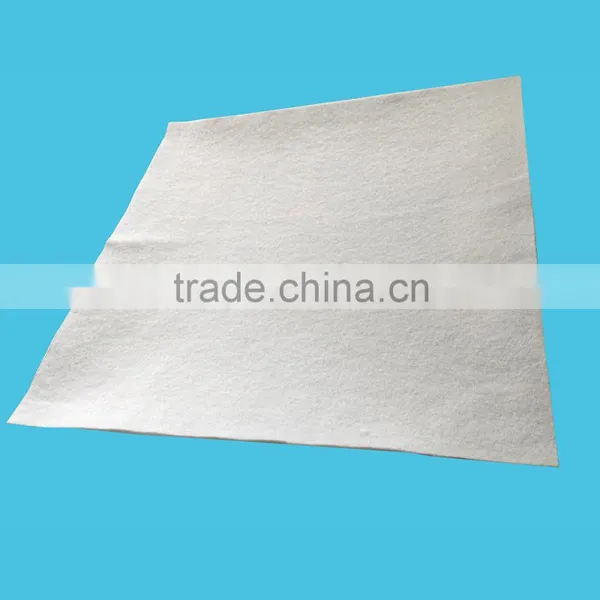

(b). F5 class pre-filter comprised by cotton and metal mesh, full-thickness adhesive, can be adsorbed middling particles in the air to avoid main filter is blocked.

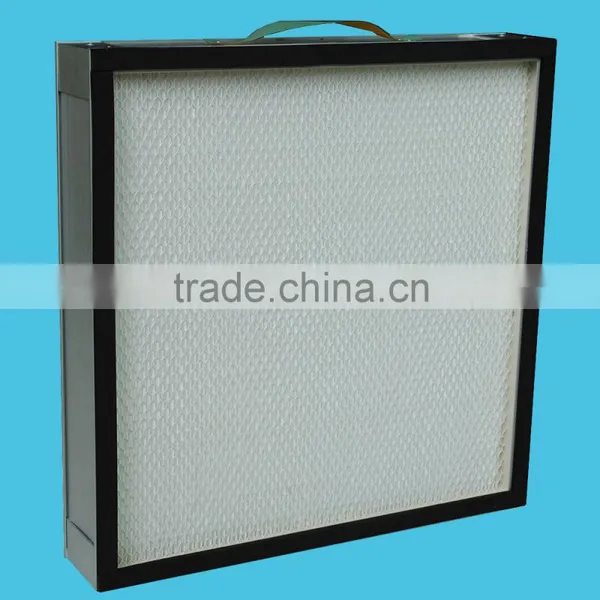

(c). Main filter consists of efficient HEPA element, in independent tests, these filters remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.
(d). Gas filter layer formed by the chemical materials can effectively remove harmful gases and pungent odor in the air.
5. Fume extrator's Fliter Data
Filter Elements Data | ||
Item | Technical Data | Remark |

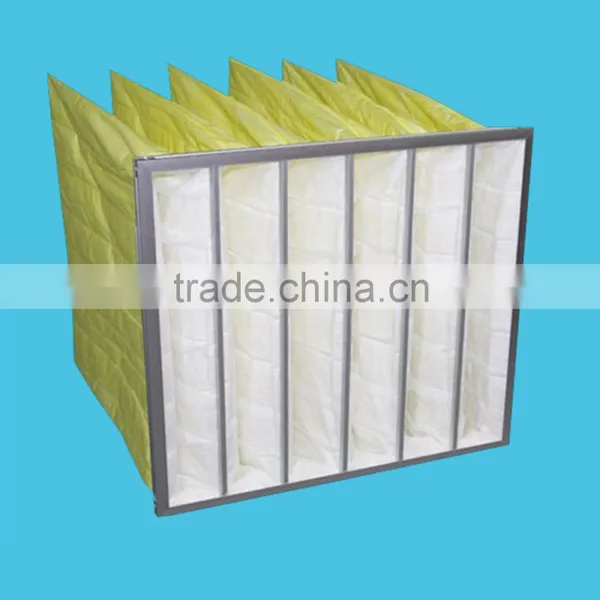

Pre-filter bag | F8 class, life-time 1-3 months | PP pre-filter. |
Main-filter | H14 class HEPA, life-time 6-10 months | Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron. |
Air-filter | Chemical material, life-time 5-6 months | Chemical molecular, Oxidant & Active carbon adsorb noxious gas. |
Average filtration rate | ≥99.7% | It will be a little fluctuation according to different materials. |
6. Fume extractor's Technical Paremeters
Blower Technical Data | ||
Item | Technical Data | Remark |
Running period | more than 10,000h | One year guarantee |
Max. air flow | 1500m³/h | / |
Input capacity | 1100W | Low capacity |
Air pressure | 3000pa | High pressure |
Running sound | ≤65dBA | / |
Input power | 110/220V, 50/60Hz | International standard |
Equipment Data | ||
Item | Technical Data | Remark |
Fume & dust inlet | 150mm | Single/Double fume inlets, include one/two set fume extract tubes |
Fresh air outlet | 200mm | Trapezoid hole |
Machine weight | 98KG (N.W.) | Machine with all elements |
Dimension | 550*550*1450mm | Machine size |
Package dimension | 650*650*1600mm | Packed by plywood crate |
7. Application and collection Photos
8. Packaging Photos
9. Why choose US?
1) We are not a trading company, we are a professional fume extractor factory, well expertise in the field of industrial air purification. With many different product types: Laser fume extractor / Soldering Fume Extractor / Welding Fume Extraction / Dust Collector / Metal Cutting Fume Filter / Printing Odor Filter / Beauty & Medical Fume Filter / Oil Filter, etc.
2) Comptitive Price & High Quality Product;
3) Very Short Lead Time, we normally keep stocks for regualr products, so production time 0-5days for most customers;
4) Our factory is glad to make customized products as per different application, we produce suitable products for clients to resolve their air purification demand;
5) Strong team with solution providing, engineering, system design, best product suggestion, quality control, delivery, good after sales service, etc
6) You can get your reply during 12 hours.
10. Contact Us
We will reply you shortly during 12 hours.
Contact Person: Ms Charlene Chen
E-mail: sales01(at)
Skype: pureairtech
Tel: 0086-(0)-769-22867970
Mobile: 0086-18676972919(whatsapp)
