Tungsten Carbide Cutter Blade,Cutting Tool,Carbide Blade
- 50000 Kilogram / Kilograms per Month
- Chongqing Shanghai or as to buyer's requirements
- Credit Card
- ZY SUPER HARD PCD Polishing Cutter for Acrylic
- Zy Super Hard PCD Straight Bit PCD End Mill Milling Cutter for CNC Router
- ZY Super Hard Polycrystalline Diamond PCD 2-Edge End Mills
- ZY Super Hard PCD Thread Milling Cutter
- ZY SUPER HARD PCD Notching Tools for Roll Machining
- ZY Super Hard PCD 1 and 2 edge End Milling Cutters
Product Details
Place of Origin: | China | Brand Name: | Henghui | Material: | Carbide |
Type: | Other, End Mill, Power Tool Parts | Coating: | TiAIN |
Product Description

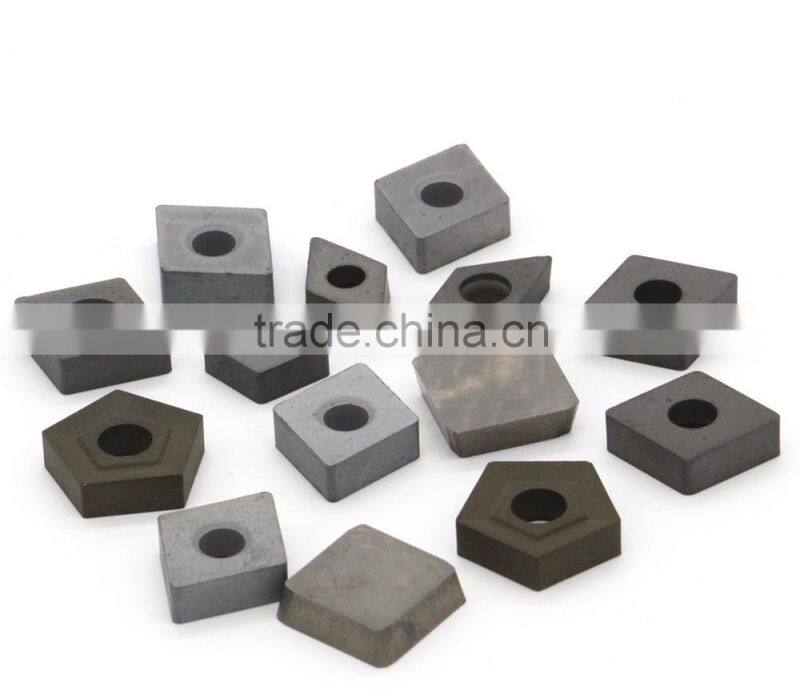

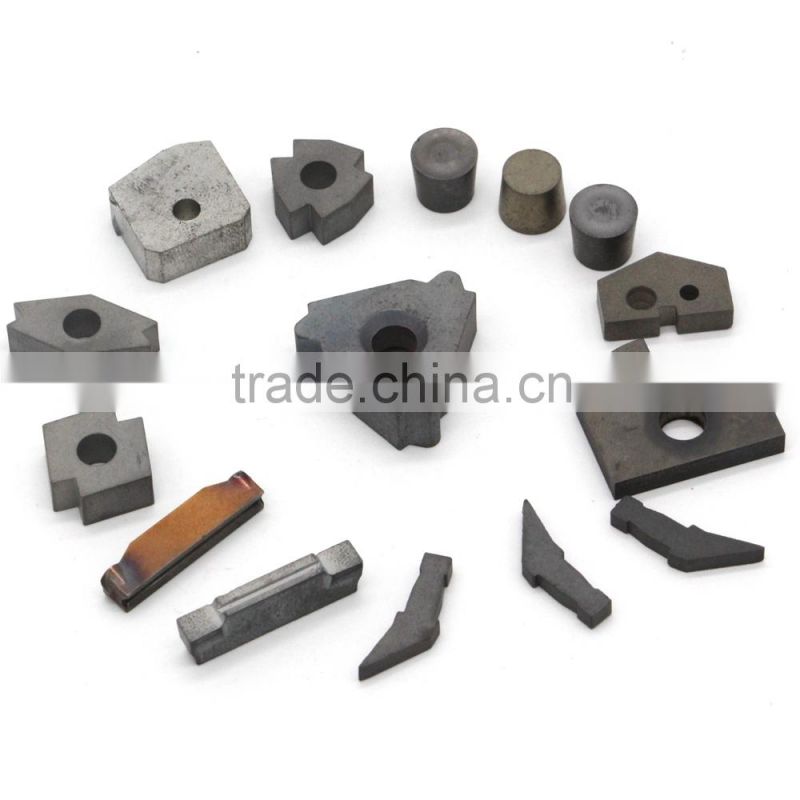

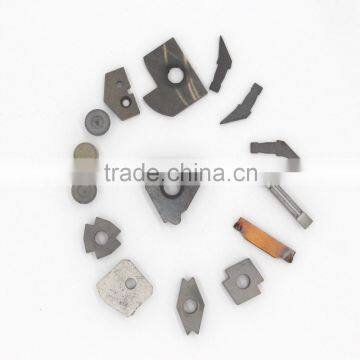

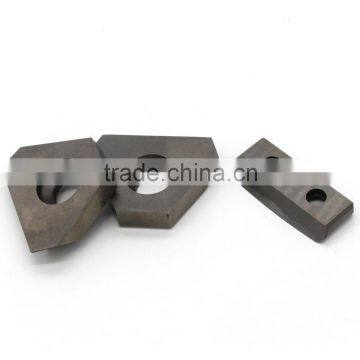

Tungsten Carbide Cutter Blade,Cutting Tool,Carbide Blade
Features:
Made from 100% raw virgin material
High hardness &density
Good corrosion resistance
Good abrasive resistance
Tungsten Carbide Cutter Blade,Cutting Tool,Carbide Blade
Grade | ISO | DENSITY (g/cm3) | TRS (N/mm²) | HARDNESS (HRA) | APPLICATION |
YG8C | K30 | 14.7 | 2200 | 88 | Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
YG11 | K40 | 14.3 | 2100 | 88 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium hard ,hard and very hard formations. |
YG11C | K40 | 14.35 | 2200 | 87.6 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium hard ,hard and very hard formations. |
YG10C | K40 | 14.45 | 2450 | 87.6 | Primarily for the buttons and inserts of rotary percussion bits to cut medium hard and hard formations. |
YR10D | K40 | 14.5 | 2700 | 87.8 | Coarse grain-size carbide,Suitable for road,coal mining and Construction drilling bit. |
YN10 |
| 12.85 | 2800 | 86.8 | For making precussion bits,drilling bits for medium wear resistance requirement. |
YN20 |
| 11 | 2600 | 88 | For making tungsten carbide glass plates for high pressure of cement reinforced concrete. |
YZ10D | K40 | 14.35 | 2600 | 87.5 | Coarse grainsize carbide,Suitable for road, coal mining and Construction drilling bit. |
Henghui Precision Mold Co., Ltd are a professional manufactory for tungsten carbide blanks,carbide tools and carbide dies.Such as carbide mining tips, we working in this filed since the year 2008, we can supply different types of mining tips, such as carbide buttons, BWE INSERTS, CROSS BIT INSERTS, Octagonal and square inserts,etc.Also, we can produce the mining tips as per customers' drawings.
♦Strict quality control system:
1.Before production, we will test the material for density, hardness, HRA, TRS. Only the material pass the test, we will go to the next step for production.
2.We also have responsible QC person to follow the inspection for semi-product during production for every batches, every types.
3.After we finished production, we need to test it again before we send them to you, with all mechanical properties.
♦ Guarantee:
We will put the quality cerfiticates into each cartons with all necessary data, if anything different from our agreement or standard, we guarantee that we will send you the replacement or return the payment, your decision.
For more further information please Click "Send" Now!!
It's our pleasure to provide you good quality products with good price and service always.
