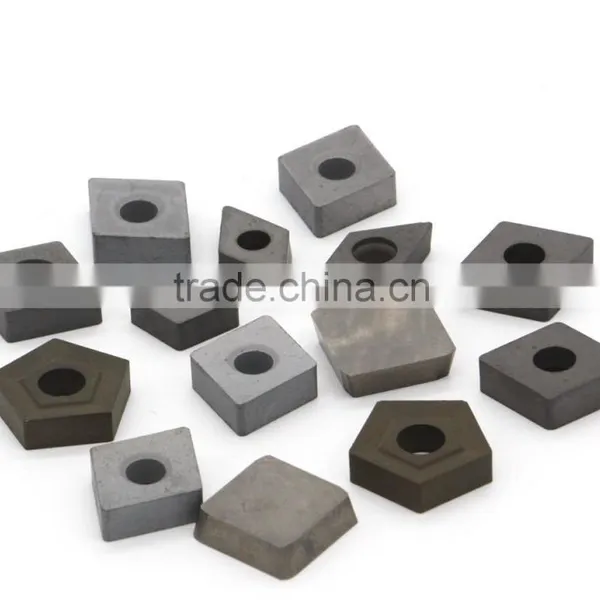

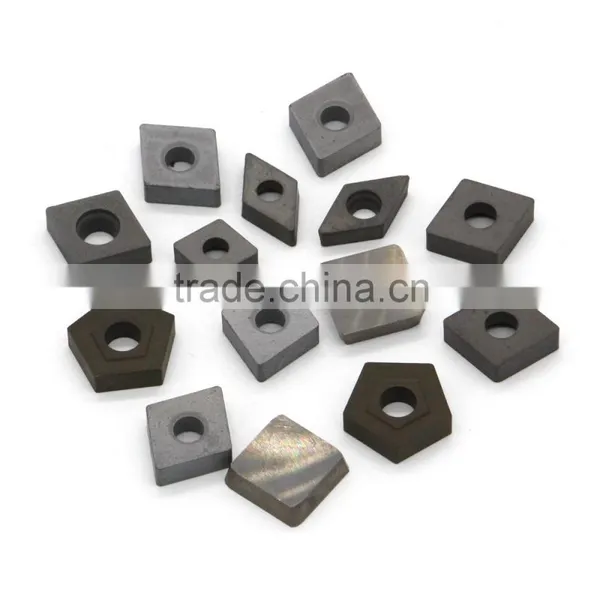

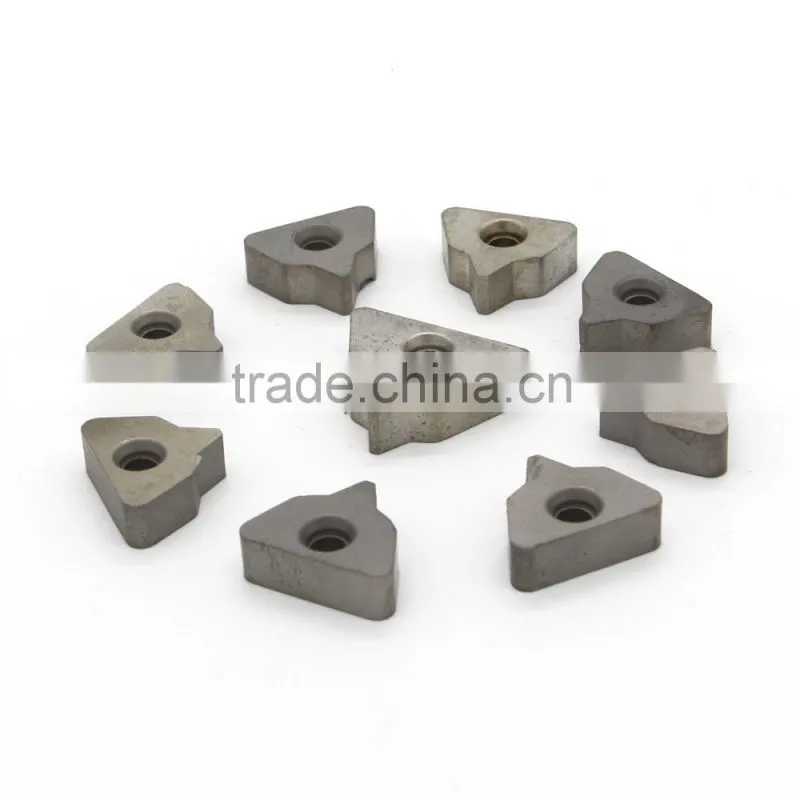

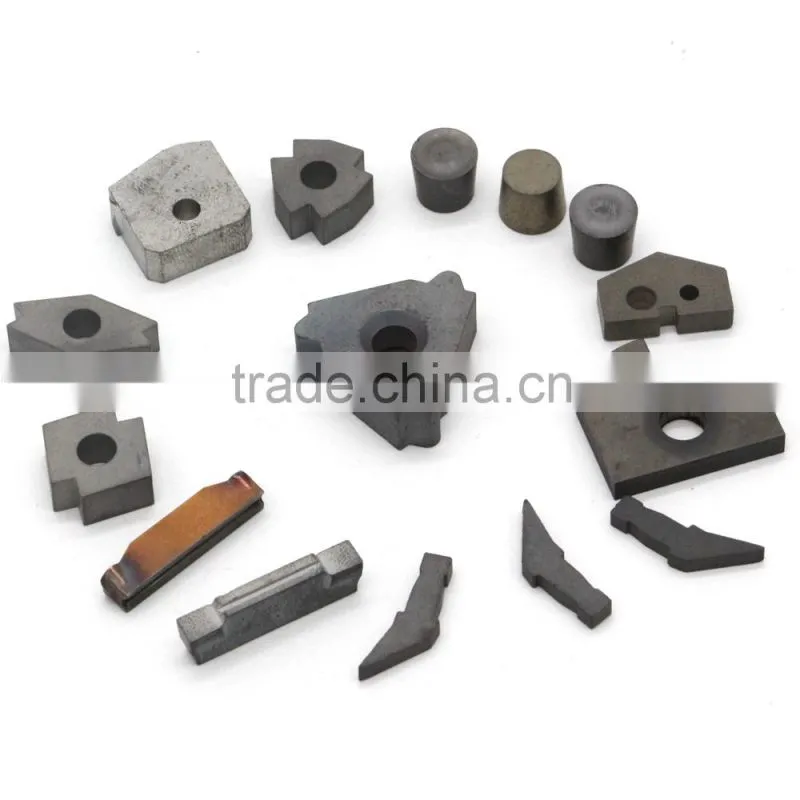

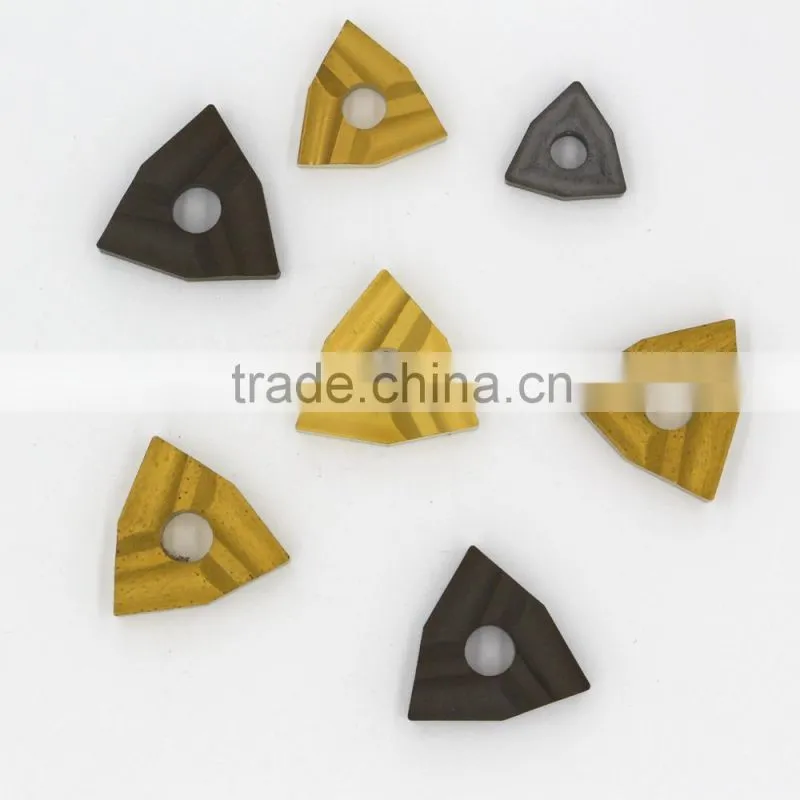

Carbide Insert,Tungsten Carbide Insert,CNC Insert
Specifications
♦ High performance.excellent resistance.high hardness
♦ Several years manufacture experiences for the various tungsten carbide products
♦ Certificate of ISO9001-2008
♦ 100% quality guarantee.
♦ Samples & small orders are acceptable
1. The welding cutting tool structure should have sufficient rigidity.
Sufficient rigidity based on the maximum allowed size and shape and higher strength steel and heat treatment.
2. Cemented carbide inserts should be fixed firmly.
Carbide welding inserts should be a sufficient degree of fixed firm, which is relied on slot and weldingquality to guarantee. Therefore, you should to select the shape of the insert slot according to the bladeshape and tool geometry parameters.
3. Examine arbor carefully.
To carry out the necessary checks to blade and arbor before blades welded to the shank.
First, you should check the blade bearing surface, make sure it can not be serious bending.
Second, the carbide welding surface may not have serious carburized layer.
Last, clear dirt carbide blade surface and arbor insert slot to ensure solid welding.
4. Select solder reasonably.
In order to ensure the weld strength, you should choose a suitable solder. In the welding process, you should ensure good wetting and flow, and the exclusion of air bubbles, make sure welding full contact with alloy welding face and no shortage of welding phenomenon.
5. Choose welding flux rightly.
It is better to use industrial borax and dehydrated in a drying oven before use, then crushed andsieved to remove mechanical debris and set aside.
6. Net form shim.
In order to decrease the welding stress in high titanium low cobalt fine particle alloy welding, and long and thin alloy blade welding, we suggest to using slice with thickness of 0.2--0.5mm or Net form shim with bore diameter of 2--3mm as compensate shim.
7. Right way of cutter sharpening.
Since carbide chip are of good brittleness, and are sensitive to crack formation, so it should be avoid overheating or quenching during the cutter sharpening. Meanwhile, to avoid flawing and shorten service life of the tools, it should choose abrasion wheel with suitable particle size and reasonable grinding technology.
8. Right way of tool installing.
Cutter bit extend length of knife rest should as short as possible, or it will result in tool shaking and thereby damaging the alloy slice.
9. Right way of regrinding, grinding tool.
When it reach normal blunt, tools should be regrinded. After regrinding, it is necessary to polishing cutting edge and fillet with abrasive store. It can increase service life and safe reliability.
The tungsten carbide products produced by Henghui company is of better wear resistance,low maintenance,high bending strength,anti-corrosion,longer service life,more economical,high precision.more than 100 advanced machine tools and testing machines assured the top quality,which has passed through ISO9001-2008 .You can have a strong faith in us.
We are also very good at producing special shaped tungsten carbide products according to our clients' drawings and specifications.
1,pure tungsten carbide material,material code yg6 yg8,ywn,recycling material is available;
2,customise size as your requirement,blank and finished products are available,tolerance about 0.1mm;
3,manufacturering carbide products includingTC ball,bar material,wortle,strips,tips,dies,milling cutters,scraper blades,rods,inserts and so on;
4, OEM , factory price,manufacturing irregular shape according to your drawing.
For more further information please Click "Send" Now!!
It's our pleasure to provide you good quality products with good price and service always.
