Turntable High Frequency Blister Packaging Machine

     Turntable High Frequency Blister packaging machine

Mainly application:

Multipurpose Rotary Work table Shuttle High Frequency Welder

1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging

It is especially designed for HF welding is a perfect machine for production of blister packages, But it is multipurpose machine, for it can be used for industry like PU leather cover for pad, automotive parts and car interior elements, safety vests, reflective signs, inflatable toys, cosmetics,folding packing box,.etc.
The HF blister packaging welder, by Shenzhen Hipower Ltd, is made for various industrial HF welding and sealing applications. It is designed for applications requiring precision large flat surface for product positioning and complex shape welds.
The HF blister packaging welder series have HF power outputs from 5KW to 25KW.

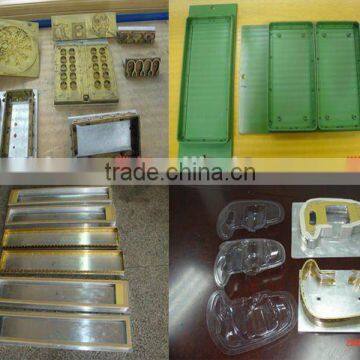

Machine is with special quick change electrode holder. Custom designed tooling and welding upper platen are available on request.

Machine General Features:

Multipurpose Rotary Work table Shuttle High Frequency Welder
1. Anti-flash system, to protect the tooling / mould
2. Welded H-frame steel structure with integrated HF generator
3. Custom requested size of work tables and welding platen acceptable
4. Adjustable parameter set in two working stations separately
5. Two side manually or motor driven rotary work table
6. Heated Upper platen with thermostat, for helping HF sealing process
7. Close off HF welding function, the machine can be use as Standard Heat Welder
8. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
9. European-model square high frequency vibration box, more reliable and stable in output
10. CE rated machine; factory verified by SGS and BV;
11. Customer's site installation, training & maintenance available
12. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
13. High frequency welding press pneumatically operated

Optional Features on Request:

1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional

Technical Specification:

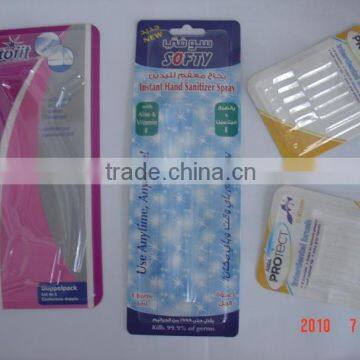

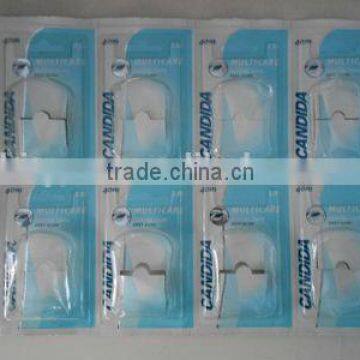

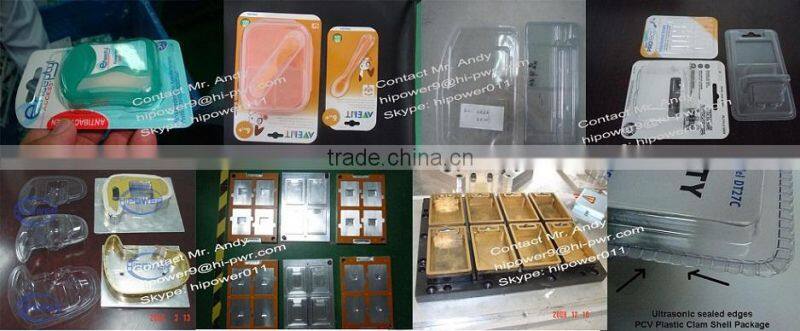

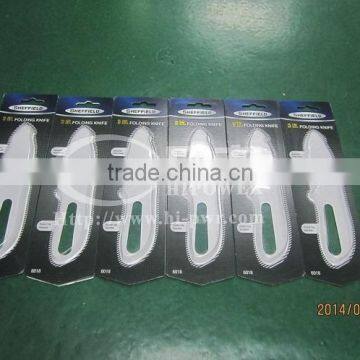

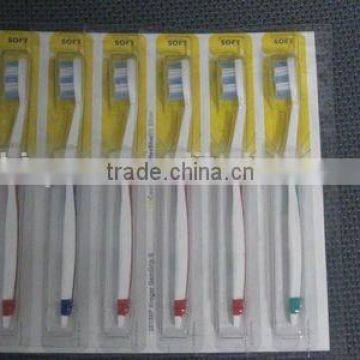

Welded Samples:

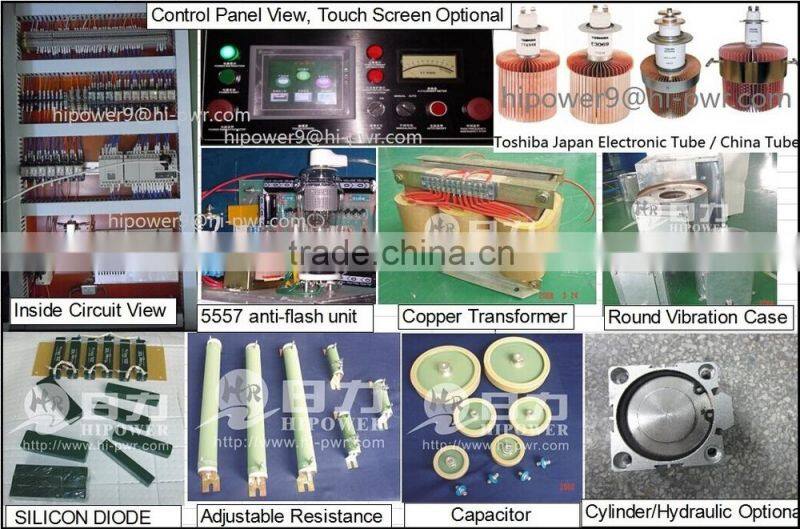

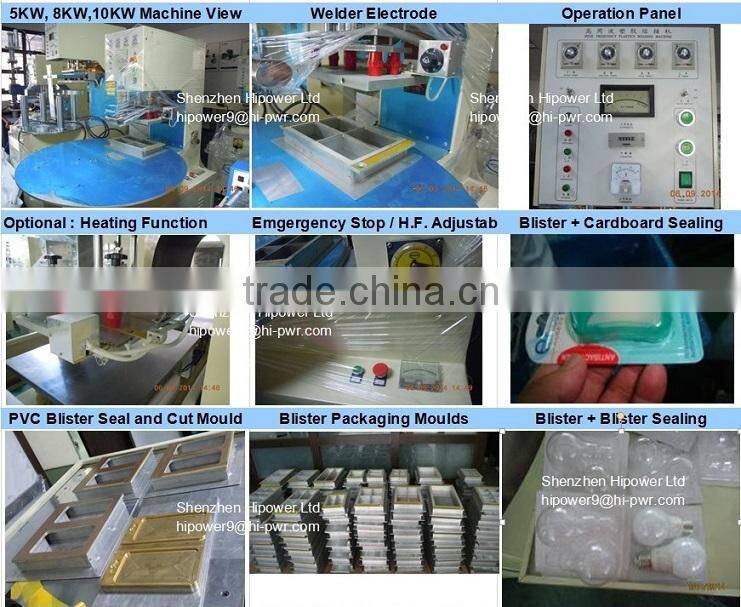

Machine Unit Views:

CE certificates:
