Automatic LED lamp Packaging Machine for LED Lamp blister packaging

Mainly application:

Multipurpose Shuttle High Frequency Welder

1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET... 2. Clear blister packaging

3. Plastic clam-shell packaging 4. Plastic Blister with plastic blister packages

5. Plastic blister with cardboard packages 6. Positive/negative blister forming and packaging

Machine General Features:

Multipurpose High Frequency Welder

1. Anti-flash system, to protect the tooling / mould ; 2. Welded C-frame steel structure with integrated HF generator

3. Custom requested size of work tables and welding platen acceptable; 4. Adjustable parameter set in two working stations separately

5. Two side manually or motor driven sliding shuttle work table; 6. Heated Upper platen with thermostat, for helping HF sealing process

7. Close off HF welding function, the machine can be use as Standard Heat Welder

8. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films

9. European-model square high frequency vibration box, more reliable and stable in output

10. CE rated machine; factory verified by SGS and BV;

11. Customer's site installation, training & maintenance available

12. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.

13. High frequency welding press pneumatically operated

Optional Features on Request:

1. Fully shielded HF weld area with side safety gate 2. Touch screen programmable HMI / PLC

3. Protective HF radiation shield standard 4. Auto-tuning system optional

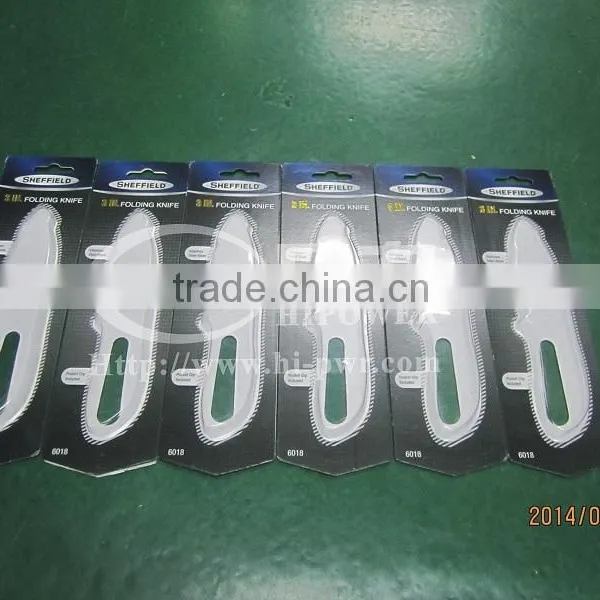

Welded Samples:

Technical Specification:

The manufacturer have the right to modify the design and specilfication without prior notice

It is especially designed for HF welding is a perfect machine for production of blister packages, But it is multipurpose machine, for it can be used for industry like PU leather cover for pad, automotive parts and car interior elements, safety vests, reflective signs, inflatable toys, cosmetics,folding packing box,.etc.

The HF blister packaging welder, by Shenzhen Hipower Ltd, is made for various industrial HF welding and sealing applications. It is designed for applications requiring precision large flat surface for product positioning and complex shape welds. The HF blister packaging welder series have HF power outputs from 5KW to 25KW. Machine is with special quick change electrode holder. Custom designed tooling and welding upper platen are available on request.

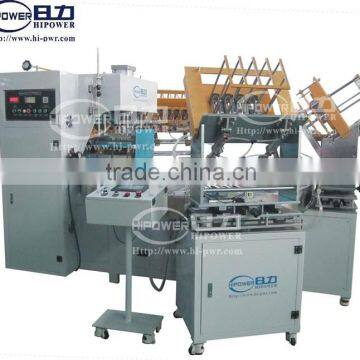

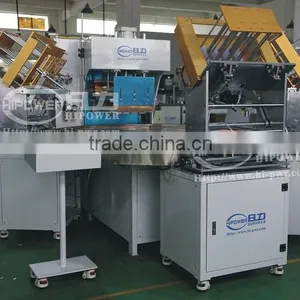

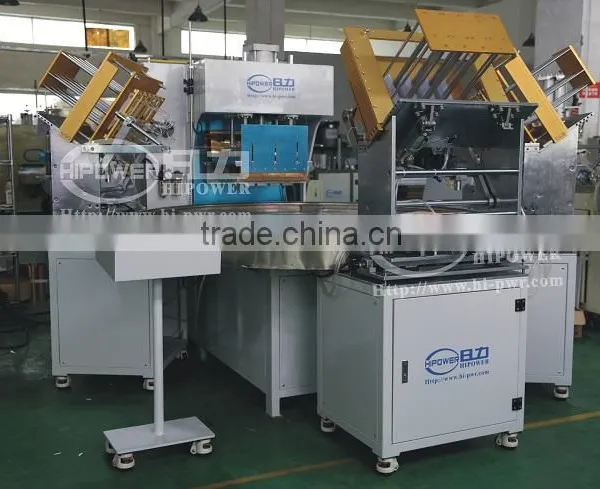

Machine Views:

2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs

3. 12 months warranty for machine, life-long tech. support

4. Recommend equipment of top choice based on your requirements for product;

7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment

and durable performance in long time shipping by sea or by air.

We can provide non-solid wood packing decleartion, our packing no need fumigation.

Questions 01. How Do You Pack the machines

RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)

Questions 02. Is it difficult to install the machine ?

RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;

you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get install videos, and install instructions from us.

It will be an ABC thing to install machines at your side.

Questions 03. How Does Customer Use the machines

RE: We will provide you operation manual and diagram of machine in English.

For automatic machine and custom machine, we will provide operation videos to you.

Questions 04. Does the machine need compressed air ?

RE: Generally speaking, if your factory with compressed air source, then connect to machine.

If not, please buy a 2Psi -5 Psi air compressor.

If customer request to use Hydraulic pressure, please inform us when put an order.

Questions 05. Does the machine power voltage meet buyers' factory power source?

RE: We can make machine with voltage like:

frequency: 50 - 60HZ Phases: single phase / 3 phases

Voltage: 110V / 220V / 380V/ 415V/ 440V / On request

Please kindly inform us what frequency/phases/voltage you want, when you put order to us.

Questions 06. Could you make die / mould for me, if I buy machine from you?

RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.

Questions 07. Can I visit you factory to check machines on-site ?

RE: We are manufacturer, and we welcome customers to visit our factory.

We located in Shenzhen, China; you may come to us by following:

a) Via. Hongkong to Shenzhen :

please reach check points between Hongkong and Shenzhen, we will arrange to pick you up from Check-point like Shekou, Lohu

b) Via. Guangzhou to Shezhen;

you may come by train to Shenzhen Luohu Station / Shenzhen North Railway Station.

we will arrange to pick you up from station.

c) Via. Shenzhen Airport :

Please inform us your flight number and contact information before you come, we will meet you at airport.

Questions 08. What Should I bring when I visit your factory?

RE: For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.

For common product, it is enough to show us product pictures or drawings.
