Product Details
| Model Number | HDCA02 | Type | Other, video capture card | |
| Brand Name | KATO/OEM | Place of Origin | Guangdong, China |
Product Description
Specifications
1.full HD screen real-time preview & capture without distortion2.can connect another PC / Mac display card to record directly
HDCA02
Product Overview
This HD video grabber with whole A/V input terminal, support 1080p/ 720p / 480p / 480i,1080i full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. offer DVI-I (DVI-D or VGA) input, can connect another PC / Mac display card to record directly.
Feature:
^Support Windows 7
^Support HD 1080p real-time record
^MPEG-4 real-time compress
^MST3367CMK-LF-170 10-bit HD Image processing chip
^PCI-Express *1, support plug and play
^Support NTSC/PAL
^Dynamic acquisition: AVI(MPEG-4/VBR) and Static collection:BMP/JPG format
^Sampling frequency: 16-bit / 32~48KHz/ Stereo
^4:3 / 16:9 display
^Image window zoom and full screen preview
^Video format detect, window display ration automatically
^Zooming display function (MouseWheel)
Resolution Support:
Input Terminal |
| Mode | NTSC | PAL |
SDI | HD | 1080P | 1920*1080p*30fps | 1920*1080p*25fps |
1920*1080p*24fps | 1920*1080p*24fps | |||
1080I | 1920*1080i*30fps | 1920*1080i*25fps | ||
720P | 1920*720p*60fps | 1920*720p*50fps | ||
Ypbpr VGA DVI HDMI | HD | 1080P | 1920*1080p*30fps | 1920*1080p*25fps |
1920*1080p*24fps | 1920*1080p*24fps | |||
1080I | 1920*1080i*30fps | 1920*1080i*25fps | ||
720P | 1920*720p*60fps | 1920*720p*50fps | ||
SD | 480P | 720*480p*60fps | 720*576p*50fps | |
480I | 720*480i*30fps | 720*576i*25fps | ||
VGA DVI HDMI | PC | 800*600p*60fps | 800*600p*60fps | |
1024*768p*60fps | 1024*768p*60fps | |||
1280*960p*60fps | 1280*960p*60fps | |||
1280*1024p*60fps | 1280*1024p*60fps | |||
1440*900p*60fps | 1440*900p*60fps | |||
Parameter:
Dimension | 114.44*101.03(mm) | |
Interface | PCIe*1 | |
Video Input | 1*SDI, 1*HDMI, 1*DVI-D, 1*DVI-A, 1*Ypbpr | |
Video Format | YUY2 | |
Video Resolution | NTSC/PAL | |
1920*1080p@30/25/24fps 1920*1080i@60/50fps 1280*720p@60/50/30/25fps 720*480p@60fps 7208576i@50fps
(HDMI, DVI-D/I, Ypbpr only) 1440*900p@60fps 1280*1024p@60fps 1280*960p@60fps 1024*768p@60fps 800*660p@60fps 640*480p@60fps 720*480p@60fps 720*586p@60fps | ||
Video Record Format | MPEG4/H.264(Depend on Software Application) | |
Video Record Resolution | NTSC/PAL | |
1920*1080p@30/25/24fps 1920*1080i@60/50fps 1280*720p@60/50/30/25fps 720*480p@60fps 7208576i@50fps
(HDMI, DVI-D/I, Ypbpr only) 1440*900p@60fps 1280*1024p@60fps 1280*960p@60fps 1024*768p@60fps 800*660p@60fps 640*480p@60fps 720*480p@60fps 720*586p@60fps | ||
Audio Input | 1*SDI, 1*HDMI, 2*RCA | |
Audio Format | Stereo / 16-bit/3200-4800Hz | |
I/O | 16 | |
WatchDog | √ | |
Multi Card Composite | ∞ | |
SDK | VC++ / .NET / BCB / VB/ V4L2 | |
Operation System | WINDOWS XP /VISTA/ 7 Linux 2.6. 14 or higher (32-bit and 64-bit) | |
Accessories: | ||
| Driver Disk | |

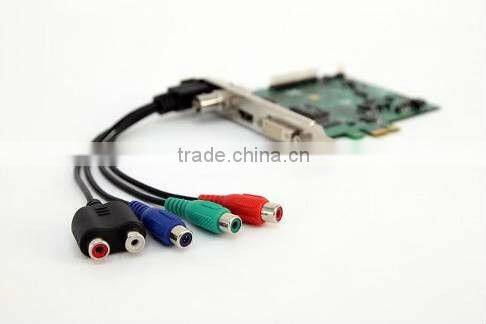

Ypbpr & Audio connecter | ||
DVI to D-SUB(VGA) | ||
Warrantee Card | ||
User Manual | ||
Notes:
DVI input DVI-I
YPbPr & Audio connecter
