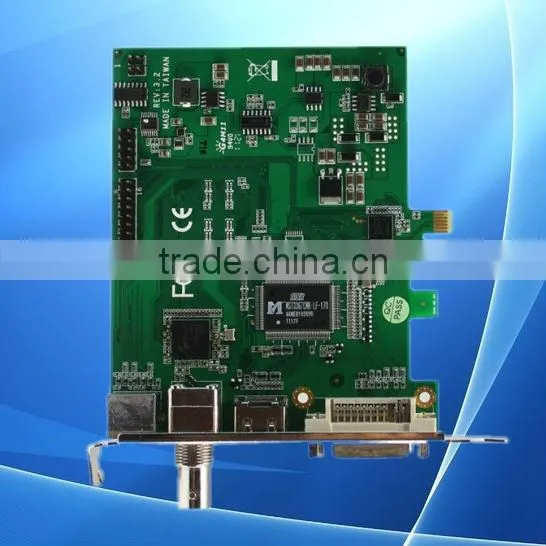

Pcie SDI video capture card PCB Assembly/PCBA/compression cards, video decoder card, decoder, etc.), video conferencing systems Quality Choice

Input Terminal

Mode

NTSC

PAL

SDI

HD

1080P

1920*1080p*30fps

1920*1080p*25fps

1920*1080p*24fps

1920*1080p*24fps

1080I

1920*1080i*30fps

1920*1080i*25fps

720P

1920*720p*60fps

1920*720p*50fps

Ypbpr

VGA

DVI

HDMI

HD

1080P

1920*1080p*30fps

1920*1080p*25fps

1920*1080p*24fps

1920*1080p*24fps

1080I

1920*1080i*30fps

1920*1080i*25fps

720P

1920*720p*60fps

1920*720p*50fps

SD

480P

720*480p*60fps

720*576p*50fps

480I

720*480i*30fps

720*576i*25fps

VGA

DVI

HDMI

PC

800*600p*60fps

800*600p*60fps

1024*768p*60fps

1024*768p*60fps

1280*960p*60fps

1280*960p*60fps

1280*1024p*60fps

1280*1024p*60fps

1440*900p*60fps

1440*900p*60fps

Dimension

114.44*101.03(mm)

Interface

PCIe*1

Video Input

1*SDI, 1*HDMI, 1*DVI-D, 1*DVI-A, 1*Ypbpr

Video Format

YUY2

Video Resolution

NTSC/PAL

1920*1080p@30/25/24fps

1920*1080i@60/50fps

1280*720p@60/50/30/25fps

720*480p@60fps

7208576i@50fps

(HDMI, DVI-D/I, Ypbpr only)

1440*900p@60fps

1280*1024p@60fps

1280*960p@60fps

1024*768p@60fps

800*660p@60fps

640*480p@60fps

720*480p@60fps

720*586p@60fps

Video Record Format

MPEG4/H.264(Depend on Software Application)

Video Record Resolution

NTSC/PAL

1920*1080p@30/25/24fps

1920*1080i@60/50fps

1280*720p@60/50/30/25fps

720*480p@60fps

7208576i@50fps

(HDMI, DVI-D/I, Ypbpr only)

1440*900p@60fps

1280*1024p@60fps

1280*960p@60fps

1024*768p@60fps

800*660p@60fps

640*480p@60fps

720*480p@60fps

720*586p@60fps

Audio Input

1*SDI, 1*HDMI, 2*RCA

Audio Format

Stereo / 16-bit/3200-4800Hz

I/O

16

WatchDog

√

Multi Card Composite

∞

SDK

VC++ / .NET / BCB / VB/ V4L2

Operation System

WINDOWS XP /VISTA/ 7

Linux 2.6. 14 or higher

(32-bit and 64-bit)

Accessories:

Driver Disk

Ypbpr & Audio connecter

DVI to D-SUB(VGA)

Warrantee Card

User Manual
