HDMI SDI Converter,cheap Converter Box for Video Conference Camera
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Bestseller:full HD Video Capture Card Support Windows 7 And NTSC/PAL
-
Hotselling 4 Channel PCI-E Express CCTV DVR Video Capture Card For Security Cameras And Video Conference Cameras
-
Pcie SDI Video Capture Card PCB Assembly/PCBA/compression Cards, Video Decoder Card, Decoder, Etc.), Video Conferencing Systems Quality Choice
-
Video Collaboration 3CH PCI-express Video Capture Card
-
HVC 400 Hardware Compression/ Video Capture Card
-
Real PCIe External Video Capture Card
Product Details
| Place of Origin | Guangdong, China | Brand Name | KATO/OEM | |
| Model Number | KT-C3 | Output Power | 1 - 50W | |
| Output Type | Multiple | Size | 82.8 x 25.2 x 79.5mm | |
| Weight | 199 g, 199 g | Type | DC/DC Converters |
Product Description
Specifications
1.HD-SDI: BNC (SMPTE-292M/296M Compliant)2.Dimension(HxWxD):82.8 x 25.2 x 79.5mm
3.Power:12VDC Regulated, Max. 6W

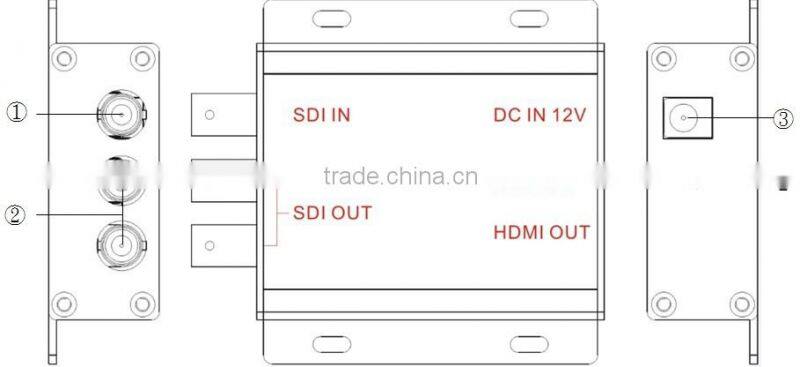

SDI to SDI:
SDI IN | SDI Input |
SDI OUT | SDI Output |
DC IN 12V | DC 12V, 0.5A Input socket |
STATUS | On: signal connected Off: Signal Unconnected |
SDI to HDMI Converter:
SDI IN | SDI Input |
DC IN 12V | DC 12V, 0.5A Input Socket |
STATUS | On: Signal connected Off: Signal Unconnected |
HDMI OUT | HDMI Output |
HDMI to SDI Converter:
SDI OUT | SDI Input |
DC IN 12V | DC 12V, 0.5A Output Socket |
STATUS | On: Signal connected Off: Signal unconnected |
HDMI IN | HDMI Input |
Specification
SDI to HDMI Converter | |
Input | HD-SDI: BNC (SMPTE-292M/296M Compliant) |
Output | HDMI |
Resolution | 1080p/60fps, 1080p/50fps, 1080p/30fps, 1080p/25fps, 1080i/60fps, 1080i/50fps, 1080i/30fps, 1080i/25fps, 720p/60fps, 720p/50fps, 720p/30fps, 720p/25fps |
Power | 12VDC Regulated, Max. 6W |
Dimension (HxWxD) | 82.8 x 25.2 x 79.5mm |
Weight | 199 g |
Working Temperature | 0~40°C |
|
|
|
|
|
|
HDMI to SDI Converter | |
Input | HDMI |
Output | HD-SDI: BNC x 2 (SMPTE-292M/296M Compliant) |
Resolution | 1080p/60fps, 1080p/50fps, 1080p/30fps, 1080p/25fps, 1080i/60fps, 1080i/50fps, 1080i/30fps, 1080i/25fps, 720p/60fps, 720p/50fps, 720p/30fps, 720p/25fps |
Power | 12VDC Regulated, Max. 6W |
Dimension(HxWxD) | 82.8 x 25.2 x 79.5mm |
Weight | 199 g |
Working Temperature | 0~40°C |
|
|
|
|

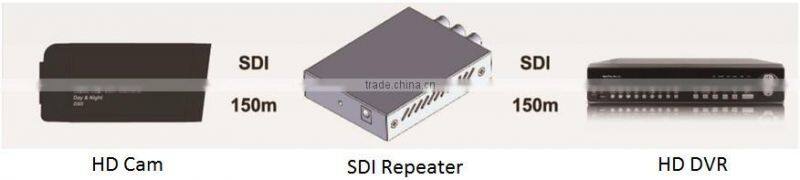

SDI to SDI Repeater | |
Input | HD-SDI: BNC (SMPTE-292M/296M Compliant) |
Output | HD-SDI: BNC x 2 (SMPTE-292M/296M Compliant) |
Resolution | 1.485Gbps |
Power | 1080p/60fps, 1080p/50fps, 1080p/30fps, 1080p/25fps, 1080i/60fps, 1080i/50fps, 1080i/30fps, 1080i/25fps, 720p/60fps, 720p/50fps, 720p/30fps, 720p/25fps |
Dimension(HxWxD) | 12VDC Regulated, Max. 6W |
Weight | 82.8 x 25.2 x 79.5mm |
Working Temperature | 217 g |
Output | 0~40°C |
