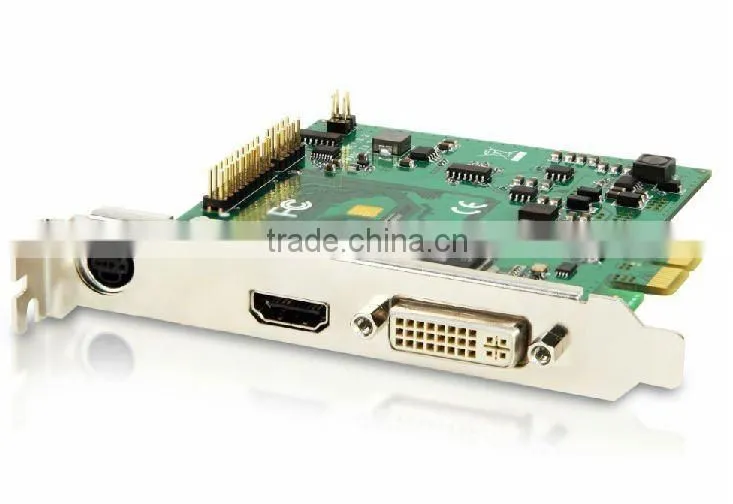

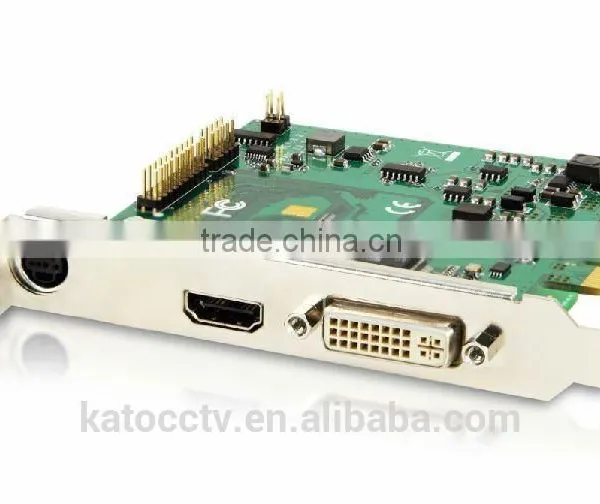

HDMI full hd Video Capture Card 1080p

Dimension

99.77mm x 68.88mm

Host Computer Interface

PCI-Express x1, Low Profile, 200MB/s

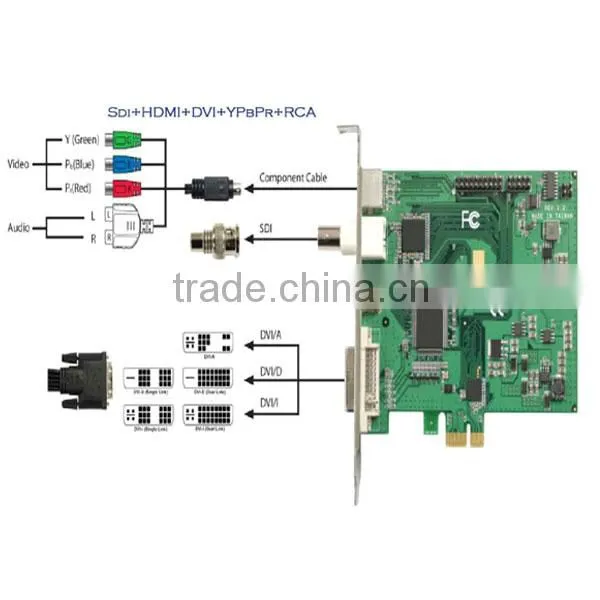

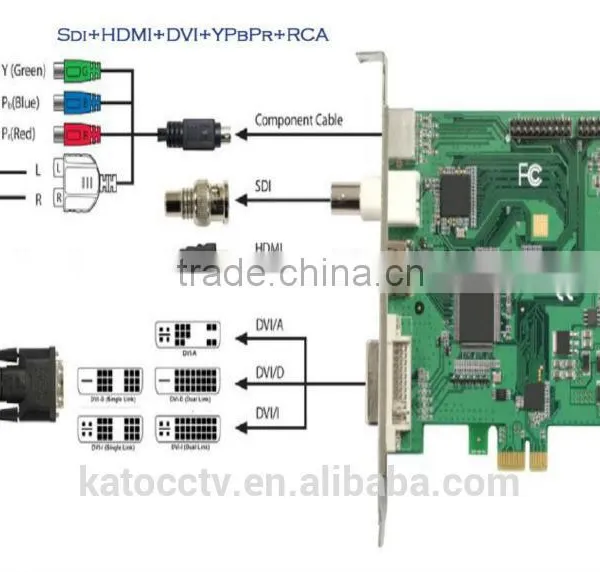

Input

1* HDMI (can switch to DVI)

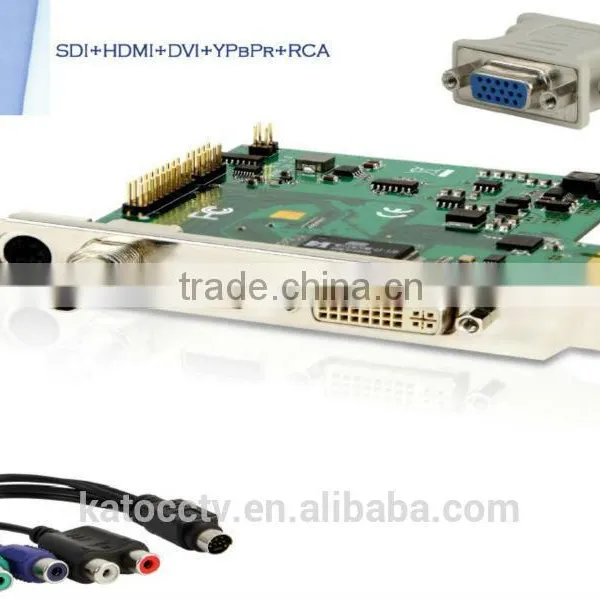

1* DB9 (Can connect YPbPr ,S-video,CVBS,1CH unbalanced stereo audio line input thought converter cable)

Max. Sampling Rate

CVBS:54MHz (4x Oversampling)

HDMI/DVI:225MHz

Memory

128MB DDR2,frequency 160 MHZ, 32bit

Component Input Format

480i,576i,480p,576p,720p,1080i,1080p

DVI Input Format

480i,576i,480p,576p,720p,1080i,1080p

HDMI Input Format

Comply with HDMI 1.3 standard, support 36bit Deep Color

CVBS Input Standard

PAL/NTSC

HD Output Video Format

Resolution:40x30-2048x1536,Frame rate: 1-100 fps,Format:YUY2, UYVY, RGB24, RGB32, I420

SD Output Video Format

Resolution:176x144-768x576,Frame rate: 1-30 fps,Format:YUY2, UYVY, RGB24, RGB32, I420

OS

Support X86 and X64 version:

Windows® XP Professional

Windows® Server 2003

Windows Vista®,

Windows® Server 2008

Windows® 7

Windows® Server 2008 R2

Consumption

<= 8W

Working Temperature

0-50℃

Storage Temperature

-20-70℃

Relative Humidity

5%-90%
