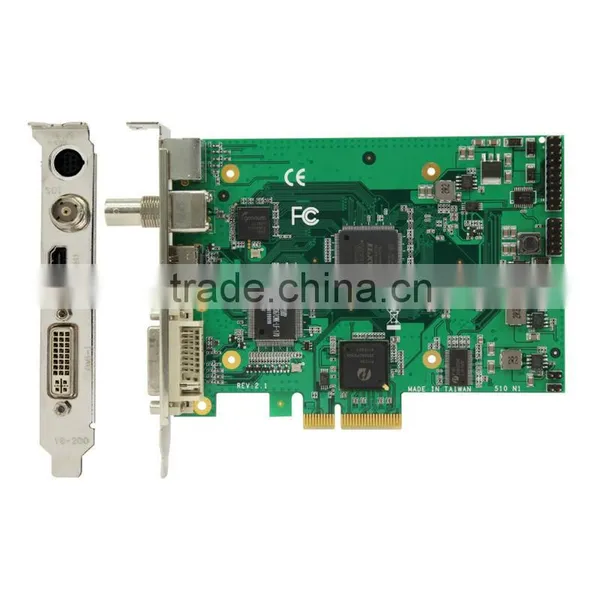

1080P Video Capture Card PCIe Video Card With Rca Output

1080P Video Capture Card PCIe Video Card With Rca Output thumbnail-1
1080P Video Capture Card PCIe Video Card With Rca Output photo-1
US$ 299 - 379 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KATO/OEM
Model Number:
HDCA02
Contact Supplier Request Quote Chat Now
Shenzhen KATO Vision Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KATO/OEM
Model Number HDCA02
1080P video capture card PCIe video card with rca output Overview
HDCA02 with whole A/V input terminal, support 1080p/ 720p / 480p / 480i, 1080i full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. offer DVI-I (DVI-D or VGA) input, can connect another PC / Mac display card to record directly.

1080P video capture card PCIe video card with rca output Feature:
 Support Windows 7
 Support HD 1080p real-time record
 MPEG-4 real-time compress

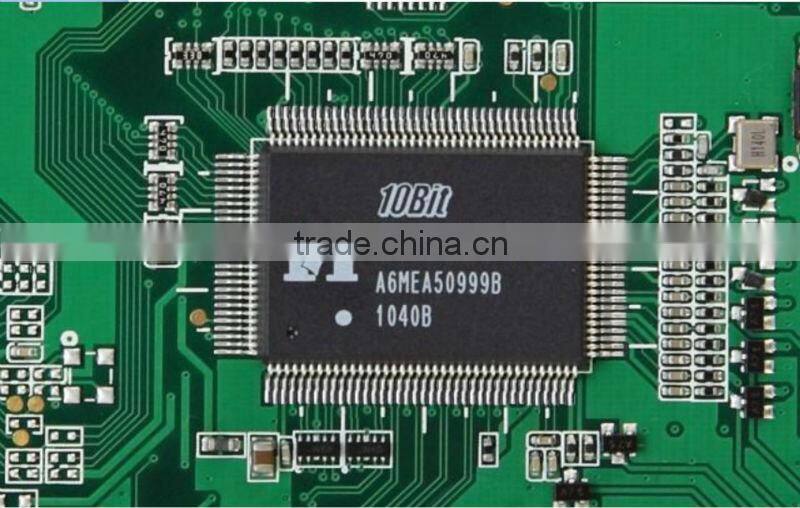

 MST3367CMK-LF-170 10-bit HD Image processing chip
 PCI-Express *1, support plug and play
 Support NTSC/PAL
 Dynamic acquisition: AVI(MPEG-4/VBR) and Static collection: BMP/JPG format
 Sampling frequency: 16-bit / 32~48KHz/ Stereo
 4:3 / 16:9 display
 Image window zoom and full screen preview
 Video format detect, window display ration automatically
 Zooming display function (MouseWheel)

1080P video capture card PCIe video card with rca output
Input Terminal

Mode
NTSC
PAL
SDI
HD
1080P
1920*1080p*30fps
1920*1080p*25fps
1920*1080p*24fps
1920*1080p*24fps
1080I
1920*1080i*30fps
1920*1080i*25fps
720P
1920*720p*60fps
1920*720p*50fps
Ypbpr
VGA
DVI
HDMI
HD
1080P
1920*1080p*30fps
1920*1080p*25fps
1920*1080p*24fps
1920*1080p*24fps
1080I
1920*1080i*30fps
1920*1080i*25fps
720P
1920*720p*60fps
1920*720p*50fps
SD
480P
720*480p*60fps
720*576p*50fps
480I
720*480i*30fps
720*576i*25fps
VGA
DVI
HDMI
PC
800*600p*60fps
800*600p*60fps
1024*768p*60fps
1024*768p*60fps
1280*960p*60fps
1280*960p*60fps
1280*1024p*60fps
1280*1024p*60fps
1440*900p*60fps
1440*900p*60fps

1080P video capture card PCIe video card with rca output Parameter:
Dimension
114.44*101.03(mm)
Interface
PCIe*1
Video Input
1*SDI, 1*HDMI, 1*DVI-D, 1*DVI-I, 1*Ypbpr
Video Format
YUY2
Video Resolution
NTSC/PAL
1920*1080p@30/25/24fps
1920*1080i@60/50fps
1280*720p@60/50/30/25fps
720*480p@60fps
7208576i@50fps

(HDMI, DVI-D/I, Ypbpr only)
1440*900p@60fps
1280*1024p@60fps
1280*960p@60fps
1024*768p@60fps
800*660p@60fps
640*480p@60fps
720*480p@60fps
720*586p@60fps
Video Record Format
MPEG4/H.264(Depend on Software Application)
Video Record Resolution
NTSC/PAL
1920*1080p@30/25/24fps
1920*1080i@60/50fps
1280*720p@60/50/30/25fps
720*480p@60fps
7208576i@50fps

(HDMI, DVI-D/I, Ypbpr only)
1440*900p@60fps
1280*1024p@60fps
1280*960p@60fps
1024*768p@60fps
800*660p@60fps
640*480p@60fps
720*480p@60fps
720*586p@60fps
Audio Input
1*SDI, 1*HDMI, 2*RCA
Audio Format
Stereo / 16-bit/3200-4800Hz
I/O
16
WatchDog
√
Multi Card Composite
∞
SDK
VC++ / .NET / BCB / VB/ V4L2
System Requirement
Operation System
WINDOWS XP /VISTA/ 7
Linux 2.6. 14 or higher
(32-bit and 64-bit)
Accessories:
Warrantee Card, User Manual, Disk, Video Grabber, DVI to D-SUB(VGA), Ypbpr & Audio connecter.1080P video capture card PCIe video card with rca output
