Digital Color Ccd Camera Manual 18x Zoom Conferencing Video Camera With Remote Controller

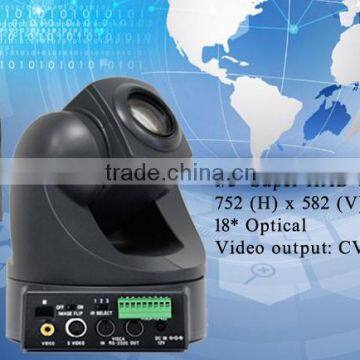

Digital Color Ccd Camera Manual 18x Zoom Conferencing Video Camera With Remote Controller photo-1
Digital Color Ccd Camera Manual 18x Zoom Conferencing Video Camera With Remote Controller photo-2

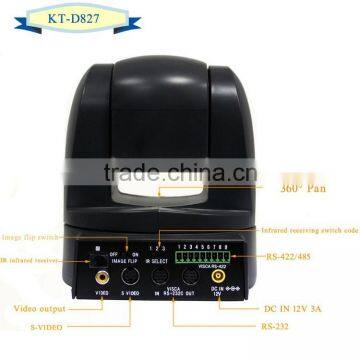

Digital Color Ccd Camera Manual 18x Zoom Conferencing Video Camera With Remote Controller photo-3

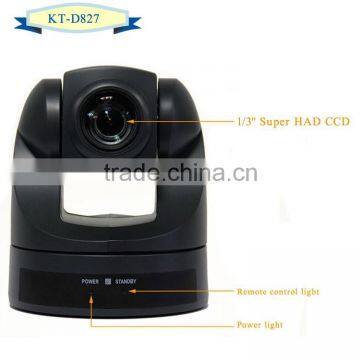

Digital Color Ccd Camera Manual 18x Zoom Conferencing Video Camera With Remote Controller photo-4
Digital Color Ccd Camera Manual 18x Zoom Conferencing Video Camera With Remote Controller photo-5
Digital Color Ccd Camera Manual 18x Zoom Conferencing Video Camera With Remote Controller photo-6
US$ 180 - 280 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Audio Conference System, Network Conference System, Video Conference System
Function:
Other, video conference
Simultaneous Interpretation:
No
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Type Audio Conference System, Network Conference System, Video Conference System
Function Other, video conference
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name KATO/OEM/Neutral
Model Number KT-D827

digital color ccd camera manual 18x zoom conferencing video camera with remote controller

Detailed Images

digital color ccd camera manual 18x zoom conferencing video camera with remote controllerdigital color ccd camera manual 18x zoom conferencing video camera with remote controllerdigital color ccd camera manual 18x zoom conferencing video camera with remote controllerdigital color ccd camera manual 18x zoom conferencing video camera with remote controllerdigital color ccd camera manual 18x zoom conferencing video camera with remote controller

Product Description

Item No.

KT-D827

Image Sensor

1/3" Super HAD CCD

Effective Pixels

752 (H) x 582 (V)

Signal System

PAL/NTSC

Horizontal Resolution

600TVL

Synchronization

INT

Lens

18* Optical, F1.6(W)~3.0(T)   f=5.0~90mm

Angle of View (H)



52.5°(wide-angle)~3.0°(tel-end)


Min. object distance

250mm(wide-angle)~1000mm(far-end)

Minimum Illumination

Regular: 1Lux; night: 0.1Lux

Auto exposure

Auto shutter, aperture or manual

Shutter Speed

1/50~1/10000S,16 shelves

Gain

Auto/Manual (-3 ~ +28dB, 2 dB step)

White Balance

Auto/ATW/Indoor/Outdoor/One push WB/Manual WB

S/N Ratio

More than 48dB

Pan/Tilt

Pan: +/- 360° (max. speed: 80°/s) Tilt: -30° to + 90° (max. speed: 60°/s)

Preset Position

9

Picture effect

Freeze, Flip, Mirror

Analog Output

VIDEO and S-VIDEO VBS:1.0VP-P

Camera Control

RS-232C(8-pin DIN)/(VISCA)/RS-422(9-pin) (VISCA)

Baud rate

9600bps

Power

10.8V~13.2V

Operating Temperature

0~50

Storage Temperature

-20~+60

Consumption

12W

Dimensions

(L)153*(W)*134*(H)*153mm

Weight

1200g

Color

black





Our Services



Certifications

digital color ccd camera manual 18x zoom conferencing video camera with remote controller

digital color ccd camera manual 18x zoom conferencing video camera with remote controller



Exhition show



Company Information



FAQ

Q&A

1)What is your minimum order quantity?

-- one full container at least 5sets each model. Sample order is acceptable.



2)Do you have products in stock?

--Some types of video conference camera have, and haven’t.It depend your order module.



3)What is your delivery terms?

--FOB to your country by DHL,Fedex through air.

 Payment terms is T/T in advance, Western Union, Paypal ect.



4)When will you ship my order?

--Ordinary,once we get confirmation for payment,we will ship order within 1-3days.



5)The video confence camera doesnt have the interface I need, what should I do?

--Yes, it might cannot meet your requirement. However, Talk to our sale, the interface we can add to conferencing camera with charging extra fees. We promised : All your need we will try our best to satified you.



6)Can I install the conference camera by myself?

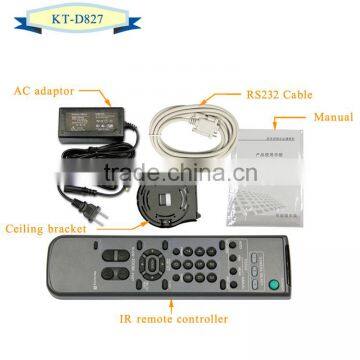

--Of course,the conferencing camera is flexible to install. We supplied camera accompanied with DV 12V power adapter, IR controller, braket, operation menu, RS-232 cable and YPBPR cable.You can install by user manual or you can contact us in need.





7)How about warranty?

--Generally, modules for 1 year, and conference camera for 2 years.

 Life-time provide technical consulting.
