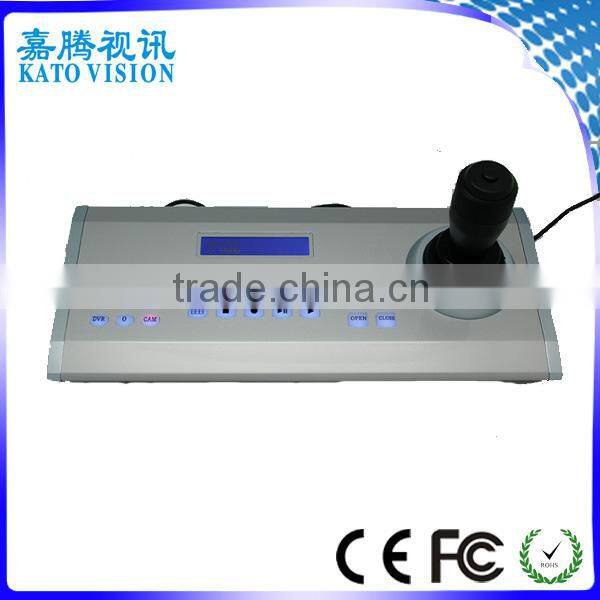

CCTV 3D Ptz Controller Visca Keyboard Controller With VISCA Protocol

Name: CCTV 3D Ptz Controller Visca Keyboard Controller With VISCA Protocol
Brand: OEM/ KATO
SKU: 112799767
Availability: InStock

Shenzhen KATO Vision Co., Limited

US$ 180 - 200 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM/ KATO

Model Number:

KT-K410C

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/ HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM/ KATO

Model Number KT-K410C

CCTV 3D ptz Controller visca keyboard controller with VISCA protocol

Features:

- Unique control code learning function to make revise orders freely.

- Each equipment which connect with RS485 bus can set different protocols and Baud rate individually

- The maximum of RS485 control bus can control 255 adress,128 equipment in parallel at the same time.

- Great Anti-lighting design and Anti-interference ability. The standard transmission distance up to 1200 meters.

- The cascade port can connect15 vice keyboards at maximum.

- Multiple protocols selectable. Specific standard SONY VISCA protocol 9600bps,19200bps.

- Password protection function.

- Keyboard with infinitely variable speed

- 7 video conference cameras cascade control

Name	Universal Control Keyboard
Model	KT-K410C
LCD display	Chinese/English
Monitor Control	1-99
Camera Control	1-1024
Joystick	Three Dimensional Left/Right; Up/Down; Zoom
Connection:	Seven D70P cascade control
Lens	Aperture: On/Off; Focus: Far/Near; Zoom: Wide angle/Tele
Camera	Defrost: On/Off; Wiper: On/Off; Auxiliary switch: On/Off;
PTZ Control	Up/Down/Left/Right; Scan limit set; Auto Scan; Pattern Scan, Auto Cruise.
Preset point control	Keep/Change preset point; Parameter set;
Alarm Operation	Arm/Disarm; Status Look Up/Display; Alarm record
DVR control	Control number:99; Control Protocol: up to customers’ demand
Control Protocol	VISCA
Communication Interface:	RS422 and RS485; Rate: 9600bps, 19200bps
Condition	Temp: -10℃~+50℃,Humidity:≤90%
Power	DC12V
Dimension	380mm(W)×48mm(H)×60mm(D)
