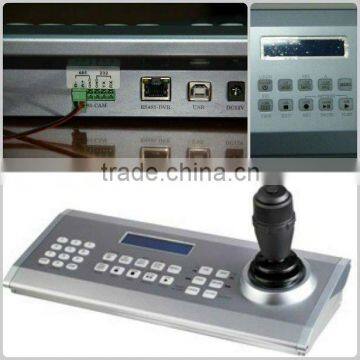

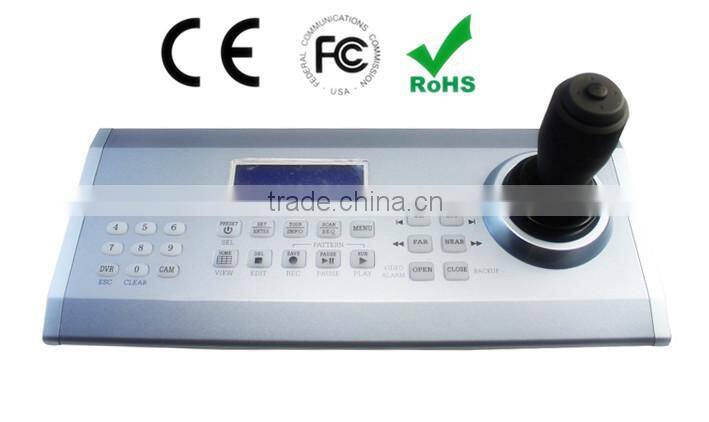

High Definition speed dome pan tilt zoom camera 3D Rs485 Ptz Controller Joystick
- Support SONY VISCA, PELCO-D, PELCO-P, CISCO, POLYCOM, CANON, PANISONIC and other video conference cameras

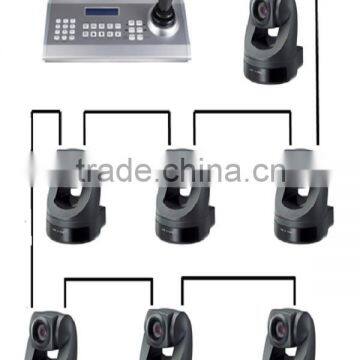

- Can control 64 video conference cameras, Each protocol and baud rate independent setting, support multiple brands controlling simultaneously
- Support VISCA, CISCO, POLYCOM protocol, support preset position storing, 8 preset positions for each channel
- The address of VISCA, CISCO protocol can be automatically assigned by the keyboard controller.
- Use the high-end joystick, flexible manipulation, perfect feeling, high accuracy, just the same as SONY original
- Backlight of the keys is adjustable with 10 grades
- Support video switcher switch simultaneously, Communication converter switch simultaneously
- Support central forwarding function, Support central Controller and the keyboard control the camera simultaneously
- 1*RS232,1*RS485/422
Name | KT-K410C |
Protocol | VISCA, PELCOP/D, Polycom, Cisco, Canon, Panisonic |
Baud Rate | 1200,2400,4800,9600,19200 |
Joystick | Triaxial + a button, light coding, accuracy of ±80 level |
LCD display screen | English character version, blue backlight, 20 characters, 2lines |
Button | 28 keys, Double color backlight, 10 level of brightness |
Quantity of controllable cameras | 64 |
Video switching matrix controller | Can control 1 video matrix with 8 inputs and 4 outputs |
The communication dispatcher | 16X4=64, can control 16 communication dispatchers, each one divides into 4. |

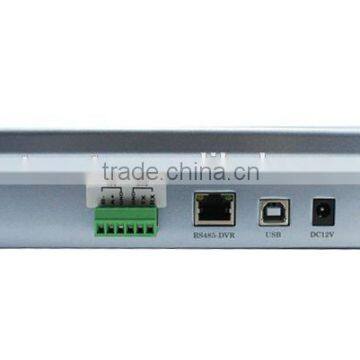

Interface | 1*RS485 interface, 2000 meters distance for camera controlling 1*RS232 interface, Support communication dispatcher serial port expansion(max. 64) for camera controlling 1*RJ45(RS485/RS232) for Video communication matrix 1*USB connect to PC host for system controlling. |
Power Supply | DC12V/500mA |
Color | Silver |
Material of the appearance | Aluminium Alloy |
Dimension | 358(L) * 154(W) * 150(H) |
Weight | 1.47KG |
Q&A
1)What is your minimum order quantity?
-- one full container at least 5sets each model. Sample order is acceptable.
2)Do you have products in stock?
--Some types of video conference camera have, and haven’t.It depend your order module.
3)What is your delivery terms?
--FOB to your country by DHL,Fedex through air.
Payment terms is T/T in advance, Western Union, Paypal ect.
4)When will you ship my order?
--Ordinary,once we get confirmation for payment,we will ship order within 1-3days.
5)The video confence camera doesn’t have the interface I need, what should I do?
--Yes, it might cannot meet your requirement. However, Talk to our sale, the interface we can add to conferencing camera with charging extra fees. We promised : All your need we will try our best to satified you.
6)Can I install the conference camera by myself?
--Of course,the conferencing camera is flexible to install. We supplied camera accompanied with DV 12V power adapter, IR controller, braket, operation menu, RS-232 cable and YPBPR cable.You can install by user manual or you can contact us in need.
7)How about warranty?
--Generally, modules for 1 year, and conference camera for 2 years.
Life-time provide technical consulting.
