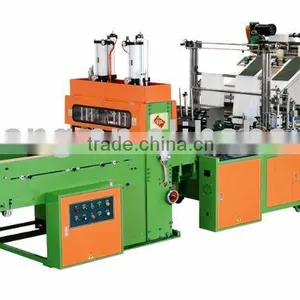

Help CenterServo Motor Driven Bottom Sealing Bag Making Machine With Automatic Punch
Related Products
-
Servo Motor Driven 2 Layer Bottom Seal Bag Making Machine With Automatic PunchNegotiableMOQ: 1 Set -
Dual Servo Motor Driven Full Automatic High Speed T-Shirt Bag Making MachineNegotiableMOQ: 1 Set
-
High Speed T-Shirt Bag Making MachineNegotiableMOQ: 1 Set
-
High Speed T-Shirt Bag Making MachineNegotiableMOQ: 1 Set
-
Dual Servo Motor Driven High Speed T-Shirt Bag Making MachineNegotiableMOQ: 1 Set
Specifications
4-6line t shirt bag/t-shirt bag making machineauto punch avaliable
productive, stable & easy operating!
4-6line t shirt bag/t-shirt bag making machine
auto punch avaliable
productive, stable & easy operating!
Accurate cut & sealing!
Durable design & assembling!
High stability!
Low maintenance and Competitive price!
Can Automatically and Easily make T-shirt bag or calendar bags, no more labor need for punching!
Special Features:
Ø Servo Motor Driven, Efficient mechanical structure, Digital setup, accurate registration, less waste.
Ø Fully Automatic control panel, Large Screen , Easy to read, User Friendly.
Ø Efficient output, less man power required
Ø SINGSIANG Special formulation for the cutting knife to ensure pleasant sealing line with high firmness Cutting blade is imported from Taiwan, durable, sharp and easy for adjustment.
Ø Online punch is available, can make T-shirt bag or calendar bag automatically.
Ø Automatically stop when running out of film
Ø Automatically stop when film feeding blocks or bags jam
Ø Automatically stop when The temperature not reaching setting
Ø Automatically stop when the bags become super-imposed or overlapped.
Optional Accessories:
Ø Free Tension Sealing Blade (for Thick Bags)
Ø Perforating Bags Production Device
SPECIFICAION | ||||||||||
MODEL |
MAX.WIDH |
MAX. LENGH |
CONVERING HICKNESS |
ACCURACY LENGH(m/m) |
SPEED (PCS/MIN) |
SERVO MOOR |
HEAER |
POWER REQUIRED |
DIAMENSION |
MACHINE WEIGH |
SHCG-22 |
480 mm |
1200 mm |
0.01 - 0.1 mm |
± 1 |
10 - 150 |
1.5 KW |
2.0 KW |
3.5 KW |
330*117*184 |
1130 KG |
SHCG-30 |
350mm |
1200 mm |
0.012-0.15 mm |
± 1 |
10-150 |
2.0 KW |
2.2 KW |
4.0 KW |
350*142*184 |
1400 KG |
SHCG-36 |
420 mm |
1200 mm |
0.012-0.15 mm |
± 1 |
10 - 150 |
2.0 KW |
2.5 KW |
5.2 KW |
420*157*205 |
1500 KG |
SHCG-42 |
550mm |
1800 mm |
0.01 - 0.1 mm |
± 1 |
10 - 150 |
3.0 KW |
3.0 KW |
5.7 KW |
420*173*205 |
1600 KG |
SHCG-50 |
610mm |
1800 mm |
0.012-0.15 mm |
± 1 |
10-130 |
3.0 KW |
4.0 KW |
6.2 KW |
420*193*165 |
1700 KG |
SHCG-60 |
720mm |
2200 mm |
0.012-0.15 mm |
± 1 |
10 - 100 |
4.4 KW |
4.5 KW |
6.7 KW |
420*219*205 |
1800 KG |
SHCG-75 |
900mm |
2200 mm |
0.01 - 0.1 mm |
± 1 |
10 - 80 |
4.4 KW |
5.0 KW |
7.2 KW |
420*254*205 |
1900 KG |
SHCG-90 |
1000 mm |
2200 mm |
0.012-0.15 mm |
± 1 |
10-80 |
4.4 KW |
5.5 KW |
8.0KW |
420*157*205 |
2300 KG |
more information please check our official websit.
