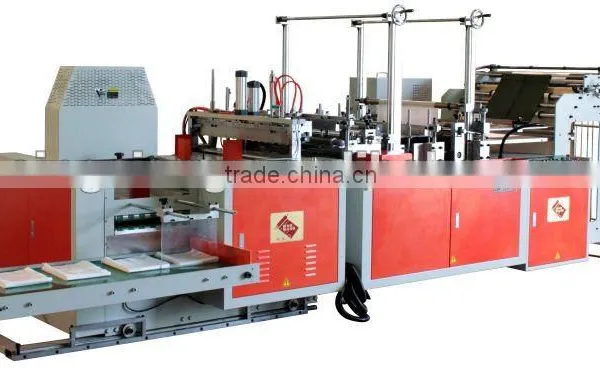

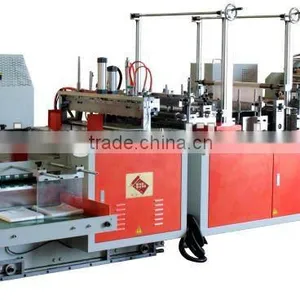

Help CenterServo Motor Driven Full Auto Garbage Bag Making & Folding Machine for T-Shirt Style & Flat Style
Related Products
-
Servo Motor Driven Full Automatic Perforating & Floded T Shirt Bag On Roll Making Machine With Automatic Rewinding ModuleNegotiableMOQ: 1 Set -
Servo Motor Driven Perforating Bag on Roll Making MachineNegotiableMOQ: 1 Set
-
Servo Motor Driven Full Automatic Perforating Bag On Roll Making Machine With Automatic Rewinding ModuleNegotiableMOQ: 1 Set
-
Servo Motor Driven Full Automatic Perforating Bag On Roll Making MachineNegotiableMOQ: 1 Set
-
Servo Motor Driven Full Automatic Perforating Bag On Roll Making Machine With Automatic Rewinding ModuleNegotiableMOQ: 1 Set
Specifications
garbage bag making and folded piece by piece!flat end and T-shirt end!
huge labor saving high productivity&stability!
t-shirt bag making machine finished with the bag being folded piece by piece!
huge labor saving high productivity&stability!
In China,SINGSIANG made the First bag folding machine as well as the First T-shirt style garbage bag making & folding machine.
No more labor need to punch the bag!
No more labor need to fold the bag piece by piece!
Less floor space for your product!
Much easier for package!
Much easier for using!
1 hard working labor can punch and fold around 4000 bags in 8 hours.
1 machine can punch and fold bags around 60 pcs in a minute, for 8 hours, it's 28800!
It's not only the difference between 4000 & 288000!
Special Features | ||
|
Servo Motor Driven, Efficient mechanical structure |
Automatically stop when running out of film |
|
Fully Automatic, Large Screen , Easy to read, User Friendly |
Automatically stop when film feeding blocks or bags jam |
|
Efficient output, less man power required |
Automatically stop when The temperature not reaching setting. |
|
Digital setup, accurate registration, less waste |
Automatically stop when the bags become super-imposed or overlapped |
|
SINGSIANG special fomulation of the sealing blade make Pleasant Cutting and Sealing, with high firmness. |
|
|
Cutting Blade is imported from Twaiwan very lasting, and easy for adjustment |
|
Optional Accessories | |||
|
Free Tension Sealing Blade (for Thick Bags) |
|
Air Punching Unit |
SPECIFICATION | ||||||||||
MODEL |
MAX. WIDTH |
MAX. LENGTH |
CONVERTING THICKNESS |
ACCURACY LENGTH(m/m) |
SPEED (PCS/MIN) |
SERVO MOTOR |
HEATER |
POWER REQUIRED |
DIAMENSION |
MACHINE WEIGHT |
SHGF-30 |
750 mm |
1200 mm |
0.01 - 0.1 mm |
± 1 |
10 - 120 |
1.5 KW |
2.0 KW |
5.0 KW |
550*142*144 |
1700 KG |
SHGF-36 |
890 mm |
1200 mm |
0.012-0.15 mm |
± 1 |
10 - 110 |
2.0 KW |
2.2 KW |
5.5 KW |
6420*157*165 |
1800 KG |
SHGF-42 |
1050 mm |
1200 mm |
0.012-0.15 mm |
± 1 |
10 - 95 |
3.0 KW |
2.5 KW |
6.0 KW |
640*173*165 |
2000 KG |
SHGF-50 |
1250 mm |
1200 mm |
0.012-0.15 mm |
± 2 |
10 - 80 |
4.4 KW |
3.0 KW |
6.5KW |
640*193*165 |
2100 KG |
SHGF-60 |
1500 mm |
1200 mm |
0.035-0.15 mm |
± 2 |
10 - 70 |
4.4 KW |
3.80 KW |
7.0 KW |
640*219*165 |
2300 KG |
