Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output

Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output thumbnail-1
Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output thumbnail-2
Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output thumbnail-3
Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output thumbnail-4
Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output thumbnail-5
Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output thumbnail-6
Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output photo-1
Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output photo-2
Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output photo-3
Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output photo-4
Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output photo-5
Full HD VISCA Control Hd-sdi Ptz Camera Medical Camera With DVI Output photo-6
US$ 350 - 450 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Audio Conference System, Network Conference System, Video Conference System
Function:
Other, video conference
Simultaneous Interpretation:
No
Contact Supplier Request Quote Chat Now
Shenzhen KATO Vision Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Audio Conference System, Network Conference System, Video Conference System
Function Other, video conference
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name KATO/OEM/Neutral
Model Number KT-HD30DV

Full HD VISCA Control hd-sdi ptz camera medical camera with DVI Output

Detailed Images 30DV

Full HD VISCA Control hd-sdi ptz camera medical camera with DVI OutputFull HD VISCA Control hd-sdi ptz camera medical camera with DVI OutputFull HD VISCA Control hd-sdi ptz camera medical camera with DVI Output

Product Description



Item No.

KT-HD30DV

Image Sensor

 1/2.8’’ CMOS

Effective Pixels

2.07 Megapixels

Resolution HD

1080p/30,  1080p/25,  720p/60,  720p/50

Signal System

PAL/NTSC

Lens

10X optical zoom, f=4.4mm(wide angle end)~44.0 mm(far end)

Horizontal View Angle

60.9°(W)~6.43°(T)

Focus System

Auto/Manual

Minimum Illumination

0.1Lux

Shutter Speed

1/30~1/10,000s

Gain

Auto/Manual

White Balance

Auto/ Indoor/Outdoor/Manual

Image Effect

Full color/black and white/Electronic flip

S/N Ratio

≥50db

Pan

355°(max. speed:80°/s)

Tilt

-30° to +90° (max. speed: 60°/s)

Preset Position

9 preset positions by IR Remote, 200 preset positions by Keyboard

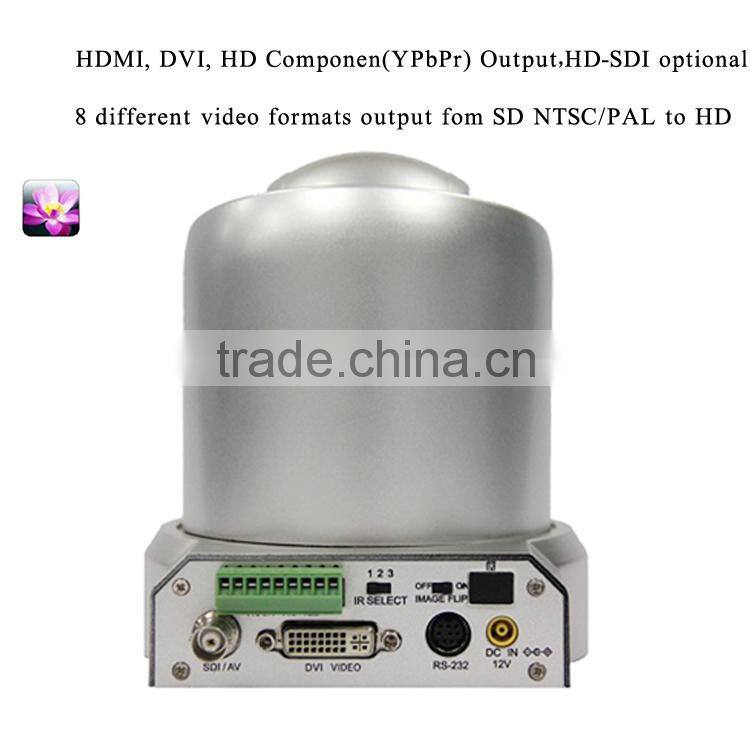

Video Output HD

DVI(HDMI, HD-Component), HD-SDI(Optional)

Video Output SD

CVBS(RCA)(optional)

Control Protocol

SONY VISCA, PELCO P/D

Control Mode

RS-232C, RS-422/485

Power

12V  DC(10.8~13.0V DC)

Power Consumption

Max. 30W(DC 12V)

Operating Temperature

0~40℃

Storage Temperature

-20-60℃

Dimensions

(L)135×(W)130×(H)144mm

Weight

790g

Color

Silver White

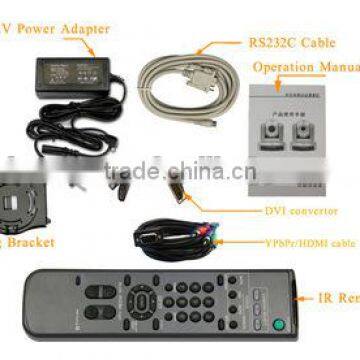

Accessories

DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, DVI Adapter, YPbPr/HDMI cable, Ceiling bracket



Our Services





Certifications

Full HD VISCA Control hd-sdi ptz camera medical camera with DVI Output

Full HD VISCA Control hd-sdi ptz camera medical camera with DVI Output



Exhition show



Company Information



FAQ

Q&A

1)What is your minimum order quantity?

-- one full container at least 5sets each model. Sample order is acceptable.



2)Do you have products in stock?

--Some types of video conference camera have, and haven’t.It depend your order module.



3)What is your delivery terms?

--FOB to your country by DHL,Fedex through air.

 Payment terms is T/T in advance, Western Union, Paypal ect.



4)When will you ship my order?

--Ordinary,once we get confirmation for payment,we will ship order within 1-3days.



5)The video confence camera doesn’t have the interface I need, what should I do?

--Yes, it might cannot meet your requirement. However, Talk to our sale, the interface we can add to conferencing camera with charging extra fees. We promised : All your need we will try our best to satified you.



6)Can I install the conference camera by myself?

--Of course,the conferencing camera is flexible to install. We supplied camera accompanied with DV 12V power adapter, IR controller, braket, operation menu, RS-232 cable and YPBPR cable.You can install by user manual or you can contact us in need.





7)How about warranty?

--Generally, modules for 1 year, and conference camera for 2 years.

 Life-time provide technical consulting.
