KT-HG868 Ptz Camera With Hdm Output

FOB Price

US$ 290 - 320 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Video Conference System	Function	Other, video camera
Simultaneous Interpretation	No	Place of Origin	Guangdong, China
Brand Name	KATO VISION	Model Number	KT-HG868

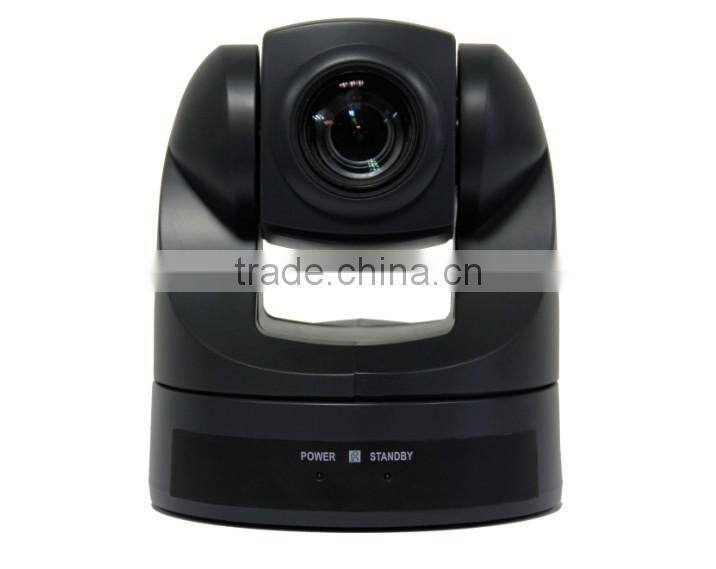

KT-HG868 ptz camera with hdm output

Detailed Images

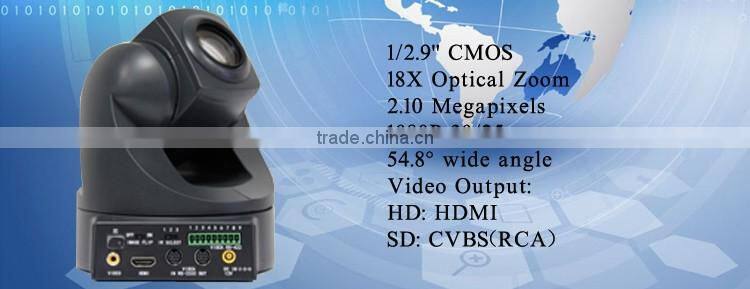

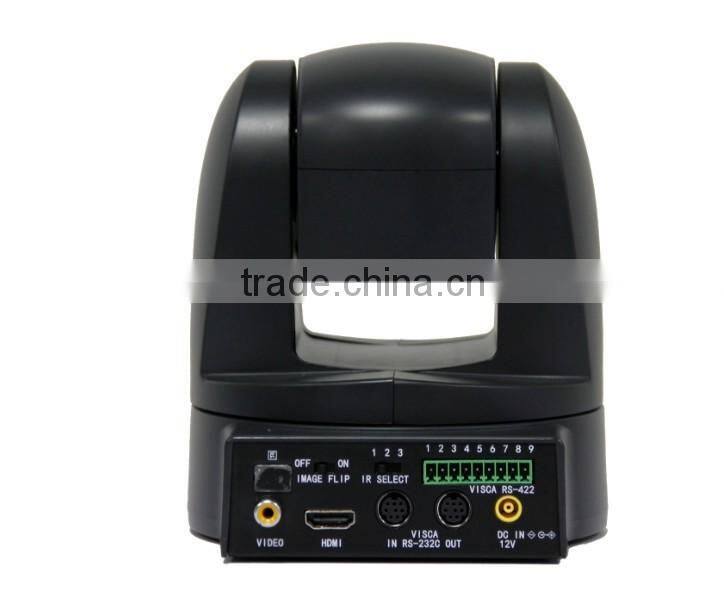

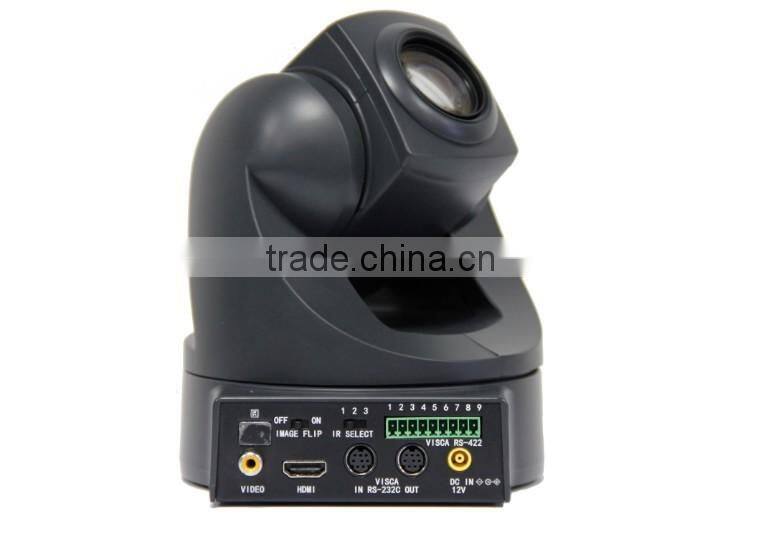

KT-HG868 ptz camera with hdm output

Product Description

Item No.	KT-HG868
Image Sensor	1/2.9''CMOS
Effective Pixels	2.1Mega pixels(16:9)
Digital System HD	1080p/30,1080p/25,720p/30,720p/25
Signal System	PAL/NTSC
Lens	18X optical zoom,f=4.7mm(wide angle end)~84.6 mm(far end), F1.6~F2.7
Horizontal Viewing Angle	54.8°(W)~3.4°(T)
Focus system	Auto/Manual
Minimum Illumination	color 0.1Lux,B/W 0.01Lux
Exposure Control	Auto/Manual
Shutter Speed	1/30~1/10,000s
Gain	Auto/Manual
White Balance	Auto/ Indoor/Outdoor/Manual
Image Effect	Full color/black and white/Electronic flip
S/N Ratio	≥50db
Pan	355°(max. speed:80°/s)
Tilt	-30° to +90° (max. speed: 60°/s)
Preset Position	-30° to +90° (max. speed: 60°/s)
Preset Position	9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller
Video Output HD	HDMI
SD	CVBS(RCA)
control protocol	SONY VISCA,PELCO P/D
control mode	RS-232C,RS-422/485
Power	12V DC(10.8~13.0V DC)
Power Consumption	Max. 30W(DC 12V)
Operating Temperature	0~40℃
Storage Temperature	-10-60℃
Dimensions	(L)145×(W)135×(H)155mm
Weight	1200g
Color	Gray black
Standard Accessories	DC/12V power adapter, IR controller,Operation manual,RS-232 Cable,HDMI cable, Ceiling bracket
