30x zoom visca 1080i optical CCTV video conferencing camera

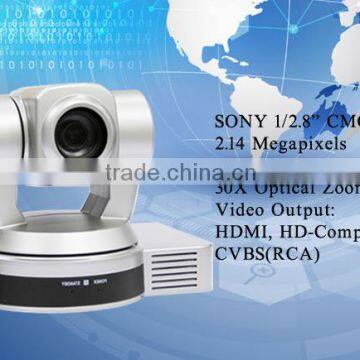

High Definition (HD) 1080P 30X zoom video conferencing camera KT-HD20K is Professional developed communication type Color Camera mainly for the video conferencing industry. Adapt 1/2.8" CMOS, 2.38 Megapixels, The maximum resolution can reach 1080P 50/60,30X Optical Zoom, with built-in High-Speed full PTZ, allows users to clearly observe small or distant targets. The Video conference camera adopts integrated design, beautiful appearance, unique style, reasonable structure, smooth and reliable operation, no noise, Accurate positioning, high reliability, long-term stable operation. Easy to use and maintain. Using RS-232 multi-protocol Communications, desktop or ceiling mount, this camera can be well qualified for video conferencing or remote video monitoring and other purposes.
Item No. |
KT-HD20K |
Image Sensor |
SONY 1/2.8’’ Exmore CMOS |
Effective Pixels |
2.38 Megapixels |
Resolution HD |
1080p60/50,1080i60/50,1080p30/25,720p60/50 |
Signal System |
PAL/NTSC |
Lens |
30X optical zoom, f=4.3mm(wide angle end)~129.0 mm(far end) |
Horizontal View Angle |
63.7°(W)~2.3°(T) |
Focus System |
Auto/Manual |
Minimum Illumination |
0.35Lux |
Exposure Control |
Auto/Manual/Priority AE/Exposure Compensation/ Bright |
Shutter Speed |
1/1~1/10,000s |
Gain |
Auto/Manual |
White Balance |
Auto/ Indoor/Outdoor/Manual/Sodium Vapor Lamp |
Image Effect |
Full color/black and white/Electronic flip |
S/N Ratio |
≥50db |
Pan |
355°(max. speed:80°/s) |
Tilt |
-30° to +90° (max. speed: 60°/s) |
Preset Position |
9 preset positions by IR remote controller, 255 preset positions by Keyboard |

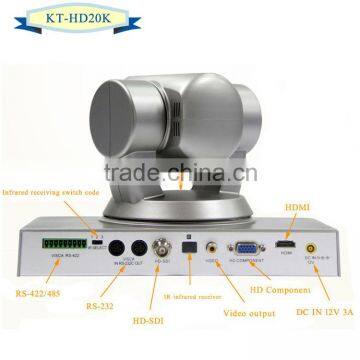

Video Output HD |
HDMI, HD-Component, 3G/HD-SDI |
Video Output SD |
CVBS(RCA) |
Control Protocol |
SONY VISCA, PELCO P/D |
Control Mode |
RS-232C, RS-422/485 |
Power |
12V DC(10.8~13.0V DC) |
Power Consumption |
Max. 30W(DC 12V) |
Operating Temperature |
0~40℃ |
Storage Temperature |
-20-60℃ |
Dimensions |
(L)240×(W)155×(H)142mm |
Weight |
1550g |
Color |
Silver White |
Accessories |
DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, YPbPr/HDMI cable, Ceiling bracket |
KATO VISION CO.,LTD, as a professional video conference camera manufacturer which located in Shenzhen, China is established in 2004, and specialize in video conference R&D, OEM/ODM.
Our main products including SD/HD/USB PTZ video conference camera, HD CCTV camera, keyboard controller, microphone, etc. They are widely used in Meeting, Medical, Telecommunication, Long distance education, School, Government, church, Skype, recording and broadcasting and so on.
We not only have many office in Shenzhen, Beijing, Guangzhou, Shanghai, Xi'an, etc. But also established many agencies in worldwide. We earn good reputation due to high quality and good service in local and abroad. And has established a sound sales & service network.
KATO’s mission is to develop a people-centric cloud service that transforms the real-time collaboration experience and improves the quality and effectiveness of communications forever.
