cost-save hd color ptz 1080p HDMI output video conference camera for office and school equipment
Product Overview:
High Definition (HD) 1080P 20X zoom video conferencing camera KT-HD20A is Professional developed communication type Color Camera mainly for the video conferencing industry. Adapt 1/2.8" CMOS, 3.5 Megapixels, The maximum resolution can reach 1080P 50/60,20X Optical Zoom, while built-in High-Speed full PTZ, allows users to clearly observe small or distant targets. The Video conference camera adopts integrated design, beautiful appearance, unique style, reasonable structure, smooth and reliable operation, no noise, Accurate positioning, high reliability, long-term stable operation. Easy to use and maintain. Using RS-232 multi-protocol Communications, desktop or ceiling mounting, this camera can be well qualified for video conferencing or remote video monitoring and other purposes.
Main Applications:
High Definition (HD) video conferencing camera KT-HD20A is widely used in Video Conference System, remote learning, Telemedicine, Church, Scene of the incident, courts, media centers, chain stores, transportation, airports and other monitoring sites.
Features:
1. Integrated and delicate design;
2. 1/2.8" CMOS, 3.5Megapixels;
3. Using precision stepper motor driver, Flexible operation& controlling, positioning accuracy (± 0.1 °);
4.Unique 355 degree horizontal unlimited consecutive pan, tilt range 120 degrees;
5. Maximum horizontal rotation speed of 80 ° / sec, vertical rotation speed of 60 ° / sec;
6. 9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller, memory auto store when power off;
7. VISCA and PELCO P / D protocol optional;
8. Enter and exit the menu via IR Remote button directly;
9. 254 addresses can be set (can be controlled 7 cameras via VISCA);
10. Multi control methods available, support IR remote control, RS-232C / 422 serial controls;
11. Two installation methods: desktop or ceiling mounting;
12. Information feedback automatically prompts;
13. Preset automatically correct;
14. Full compatibility with SONY terminal.
Item No. |
KT-HD20A |
Image Sensor |
SONY 1/2.8’’Progressive CMOS |
Effective Pixels |
3.5 Megapixels |
Resolution HD |
1080p60/50,1080i60/50,1080p30/25,720p60/50 |
Signal System |
PAL/NTSC |
Lens |
20X optical zoom, f=4.7mm(wide angle end)~94.0 mm(far end) |
Horizontal View Angle |
58.7°(W)~3.2°(T) |
Focus System |
Auto/Manual |
Minimum Illumination |
0.5 Lux |
Exposure Control |
Auto/Manual |
Shutter Speed |
1/25~1/10,000s |
Gain |
Auto/Manual |
White Balance |
Auto/ Indoor/Outdoor/Manual |
Image Effect |
Full color/black and white/Electronic flip |
S/N Ratio |
≥50db |
Pan |
355°(max. speed:80°/s) |
Tilt |
-30° to +90° (max. speed: 60°/s) |
Preset Position |
9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller |
Video Output HD |
HDMI, YPbPr, 3G/HD-SDI |
Video Output SD |
CVBS(RCA) |
Control Protocol |
SONY VISCA, PELCO P/D |
Control Mode |
RS-232C, RS-422/485 |
Power |
12V DC(10.8~13.0V DC) |
Power Consumption |
Max. 30W(DC 12V) |
Operating Temperature |
0~40℃ |
Storage Temperature |
-20-60℃ |
Dimensions |
(L)262×(W)165×(H)157mm |
Weight |
1710g |
Color |
Silver white |

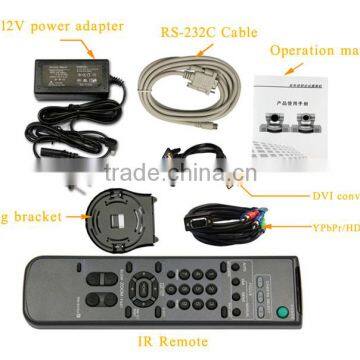

Accessories |
DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, YPbPr or HDMI cable, Ceiling bracket |
KATO VISION, established in 2004, which specialize in video conference R&D, OEM/ODM, commit to supply HIghquality Humanized products.
As a ChiNA -based manufacturer, KATO believes controlling all aspects of product development is key to delivering reliable solutions that keepcustomers up and running. We also believe that better products stem from better ideas, and that those ideas come from you the integrators in the fieldnd your customers.
Our company has established a sound sales & service network. Offices have been set up in Beijing, Guangzhou, Shanghai, Xi'an, etc. More than 10 agencies in domestic and plenty of partners overseas.
KATO’s mission is to develop a people-centric cloud service that transforms the real-time collaboration experience and improves the quality and effectiveness of communications forever.
