Newest Best Price Serial Bluetooth Access Point Adapter to RS232/RS485
Serial Bluetooth Access point is a wireless Bluetooth device which converts RS232/485 into Bluetooth devices, thus the RS232/485 devices can be easily connected to the Bluetooth SPP server via Bluetooth and it realizes wireless data transmission between the management station( server or computer) and RS232/485 devices.
It replaces traditional serial cable and has a SPP protocol software, in this case, it can convert the original serial wired connection into serial Bluetooth wireless connection. It achieves serial wireless communication.

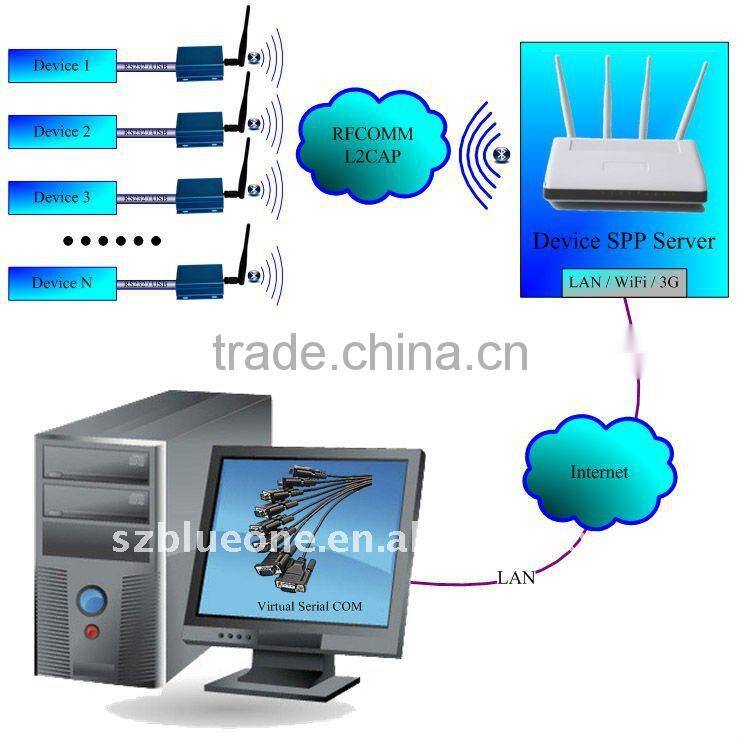

So you can wirelessly manage serial devices from a computer over the Internet remotely.
Specifications
version |
Bluetooth 2.1+EDR |
protocol |
SPP / RFCOMM / L2CAP |
transfer rate |
Maximum 3Mbps transfer rate |
Standard |
Bluetooth specification version 2.0 EDR Class 1 |
Coverage |
Up to 300 Meter |
Tx. Power |
19.5DBm |
Rx. Sensitivity |
-93.5DBm |
Antenna Gain |
7DB |
Modulation |
GFSK-1 Mbps, DQPSK-2 Mbps, and 8-DPSK-3 Mbps |
Interface |
RS232 DB9 female |
Baud Rate |
9600, 19200, 38400, 57600, 115200, 230400 |
Current Consumption |
Max.150 mA |
Configuration |
The VSPP configuration software / Hyper Terminal |
Supply Voltage |
5~15VDC |
Power Consumption |
230mA/12V |
Operation Temperature |
-20~80℃ |
Storage Temperature |
-30 ~85℃ |
Operating Humidity |
5 - 95%RH |
Storage humidity |
5 - 95%RH |
Dimensions |
9.2x8.4x2.5CM (HxWxD) |
Material |
Aluminum enclosure |
Features
CSR Bluetooth processor |
Flash, 64Mbit |
Power Amplifier(PA) |
Sensitivity Amplifier(LNA) |
LED Status indicator |
Configuration mode and Run mode switching |
Advantages
1. Instead of traditional serial cable connection, the user can quickly upgrade the original serial wired connection to serial Bluetooth wireless connection without doing much changes to the original wired connectivity solutions.
2. Adopting CSR Bluetooth chip which supports Bluetooth 2.1 standard, the enhanced BER error rate performance, and automatic frequency hopping technology makes it has stronger anti-interference ability to protect the stability and reliability of the communication.
3. Configuration commands can be configured in the configuration mode device to configure baud rate, stop bits, parity pairing code and the Bluetooth address code. Once configured, it directly connects to the user's equipment and can replace the original cable serial port without doing any operation on users' devices.
Applications
Blueone Special Products you may like
As a specialized manufacturer and exporter of Bluetooth and wifi marketing products, our company has had business connections with clients from over 60 countries. We aim at providing our customers with high-quality products and perfect after-sales services. Sincerely hope to establish a lasting friendly business relationship with your esteemed company.
Quickly and professional technical support |
Free firmware upgrading |
One year Warranty |
