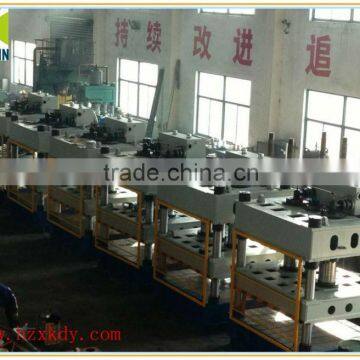

Name: HY49 Three to Extrusion Hydraulic Press
Characteristic of HY49 Three to Extrusion Hydraulic Press :
HY49 Tee Extrusion Hydraulic Press is the Best Choice of Shaft Parts in Bicycle. Main cylinder mould clamping, finishing billet Extrusion by two-side synchro Cylinder, and equipping hydraulic feeder to finish auto-feeding, extrusion and discharging, and no need adding other hydraulic and control system. The worker only need to add material into feeder, featuring reducing labor intensity, improving production efficiency and saving labor charges.
Gantry-style structure is with high rigidity, small deformation, big opening of two sides and wide usage. Main slider is driven by main cylinder, moving up and down in the direction of two guide pillar. Two opposing mould halves are respectively fixed in washer of working table and slider. After two opposing clamping, slider chucking extrusion billet. Extruding dies is fixed in two sides sliders, which are driven by two-side oil cylinder. To the need of high extruding rigidity, two-side sliders are guided by dovetail groove of slide rest, which is fixed on frame. Mechanical links device promises the precision of synchro.
Main cylinder and two-side cylinder fix growth cylinder to accelerate idle speed and return speed. Oil tank is on the top of machine, which is good for filling oil and reducing cover area. Valve integrated system adopt domestic Rexroth Valve with high system reliability and long using. Oil pump adopt imported Dannison high pressure vane pump with the features of small volume, high flow and long usage. In order to improve stability and extend hydraulic parts’ lifetime, this system equip with Suction Filter and finned water cooler to promise machine working stable.
Strength of electric separation design is adopted in electric system to enhance safety. High voltage ark is on the top of machine, near to electric motor. Electric motor is driven by Y, so that reducing driving load. PLC in Low voltage ark controls movement of machine, and control sign of PLC control execute components through miniature intermediate relay. PLC control is with feature of high reliability, convenient amendment, saving space and high response speed. Proximity switches are used in machine stroke with the feature of high location accuracy, no mechanical life and no damage. Adding safety switch promise the movement of joint extrusion separation to avoid damaging the mould.
.
Technical Specification of HY49 Three to Extrusion Hydraulic Press
| Item Type | HY49-315 | HY49-500 | ||
| Nominal Pressure of Main Cylinder | kN | 1500 | 2000 | |
| Nominal Pressure of Side Cylinder | kN | 750*2 | 1500*2 | |
| Stroke of Main Cylinder | mm | 150 | 150 | |
| Stroke of Side Cylinder | mm | 300 | 300 | |
| The Working Pressure of Fluid | Main Cylinder | Mpa | 18.6 | 3-17.6 |
| Side Cylinder | Mpa | 15.5 | 3-16 | |
| Working Speed of Main Cylinder | Descending | mm/s | 240 | 230 |
| Pressing | mm/s | 23-52 | 23-49 | |
| Return | mm/s | 300 | 300 | |
| Working Speed of Side Cylinder | Moving | mm/s | 250 | 200 |
| Pressing | mm/s | 20-45 | 14-32 | |
| Return | mm/s | 250 | 220 | |
| The Max. Opening | Up-Down | mm | 560 | 580 |
| Left-Right | mm | 850 | 1220 | |
| Size of Working Table | Left-Right | mm | 500 | 500 |
| Front-Back | mm | 355 | 355 | |
| Electric Power | kW | 37 | 55 | |
| Overall Dimension | Up-Down | mm | 4120 | 4170 |
| Left-Right | mm | 3780 | 6000 | |
| Front-Back | mm | 2450 | 2450 | |

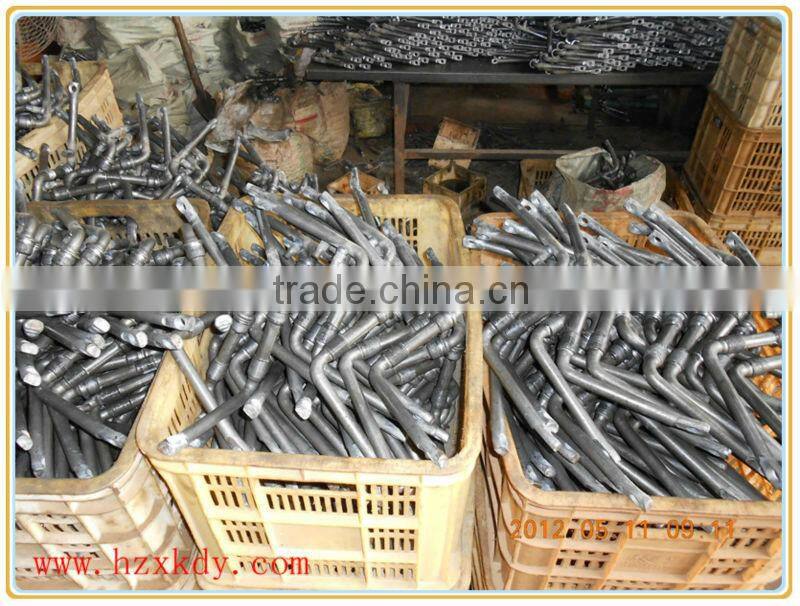

The products of HY49 Three to Extrusion Hydraulic Press
