C frame hydraulic press1, Vertical Structure with High Rigidity
2, Higher Accuracy
3, Automatic return

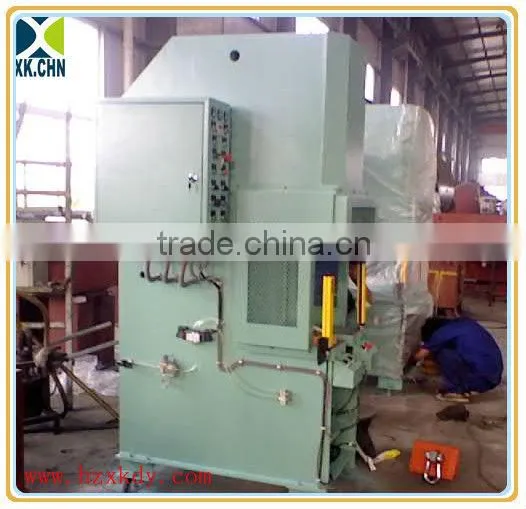

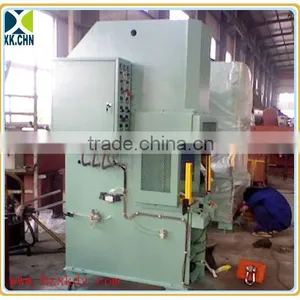

Name: C frame hydraulic press
Characteristics of C frame hydraulic press :
1, Computer optimized designed C-frame vertical structure 2, With Ram direction guide rod 3, Independent hydraulic and electrical control system, centralized pushbutton control 4, Preset Stroke Forming or Preset Pressure Forming process 5, Adjustment operation or Two-hand/single cycle operation
Applications of C frame hydraulic press :
1, Drawing, forming, and coining processes for small size sheet metal products; bending, pressing forming process for big size sheet metal products
2, Adjusting and press-in processes for shaft and sleeve parts
3, forming processes for Non-metal materials, plastics products and powder products
Technical Specifications of C frame hydraulic press
| Item | Unit | Y30-2.5 | Y30-4 | Y30-6.3 | Y30-10 | Y30K-10 | Y30-16 | Y30-25 | Y30-40 | Y30-63 | Y30-100 | Y30-315 | Y30-500 | |
| Nominal Pressure | kN | 25 | 40 | 63 | 100 | 100 | 160 | 250 | 400 | 630 | 1000 | 3150 | 5000 | |
| Ejector Force | kN | 60 | 100 | 125 | 200 | |||||||||
| The MAX. Working Pressure of Liquid | MPa | 8 | 12.5 | 16 | 20 | 20 | 20 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Ejecting Stroke | mm | 140 | 150 | 160 | 160 | |||||||||
| Stroke | mm | 125 | 200 | 200 | 250 | 400 | 320 | 350 | 400 | 400 | 450 | 450 | 1200 | |
| Roar Deep | mm | 110 | 125 | 180 | 250 | 230 | 250 | 280 | 320 | 320 | 320 | 350 | 1200 | |
| Max. Opening | mm | 210 | 360 | 360 | 450 | 700 | 520 | 560 | 600 | 650 | 710 | 710 | 1600 | |
| Size of Working Table | Left-Right | mm | 300 | 320 | 360 | 500 | 500 | 560 | 630 | 700 | 710 | 710 | 1000 | 2500 |
| Front-Back | mm | 200 | 240 | 320 | 420 | 420 | 480 | 520 | 580 | 600 | 630 | 650 | 2500 | |
| Size of Bed Opening | mm | φ80 | φ80 | φ80 | u100 | φ60 | φ100 | φ125 | φ125 | φ160 | φ180 | φ170 | ||
| The Height of Working Table | mm | 900 | 900 | 900 | 700 | 700 | 700 | 700 | 700 | 800 | 820 | 700 | 400 | |
| Speed of Slider | Downstream | mm/s | 38 | 38 | 55 | 45 | 45 | 45 | 115 | 63 | 115 | 110 | 180 | 130 |
| Working | mm/s | 38 | 38 | 55 | 25 | 25 | 10 | 15 | 14 | 10 | 8 | 8-15 | 5-12 | |
| Return | mm/s | 100 | 100 | 140 | 130 | 130 | 80 | 120 | 96 | 105 | 90 | 120 | 100 | |
| Overall Dimenshion | Left-Right | mm | 1105 | 1105 | 1295 | 1140 | 1190 | 1278 | 1485 | 1580 | 1750 | 1900 | 2000 | 4850 |
| Front-Back | mm | 555 | 555 | 660 | 760 | 730 | 750 | 860 | 860 | 1100 | 862 | 2280 | 2500 | |
| Height | mm | 1732 | 1807 | 1900 | 1810 | 2247 | 2150 | 2200 | 2200 | 2500 | 2705 | 4200 | 7600 | |
| Ejector Piston Speed | Ejecting | mm/s | 60 | 55 | 40 | 40 | ||||||||
| Return | mm/s | 180 | 220 | 160 | 160 | |||||||||
| Electric Motor Power | kW | 1.5 | 2.2 | 3 | 3 | 3 | 3 | 4 | 5.5 | 5.5 | 7.5 | 30 | 30 | |
| Weight of Machine | t | 0.35 | 0.38 | 0.6 | 1.25 | 1.3 | 1.45 | 2.2 | 2.4 | 3.2 | 3.4 | 32 | 58 | |
Options of C frame hydraulic press :
Proportional regulation for slide speed; Displacement sensor; Light curtain safety device; Right and left lateral safety barrier; Power socket; Working area lighting; PLC program controller
