Aluminum casting hydaulic machine
- 250 Set / Sets per Month
- Shanghai
- T/T
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | Xinke |
Model Number: | HY13 | Machine Type: | Beading Machine | Raw Material: | Pipe |
Material / Metal Processed: | Aluminum | Power: | Hydraulic | Automation: | Automatic |
Certification: | ISO 9001:2000 |
Product Description
Specifications
Aluminum casting hydaulic machine1, stability, reliability,
2, flexibility, convenient
3,power saving
Name: Aluminum casting hydaulic machine
Characteristic of Aluminum casting hydaulic machine :

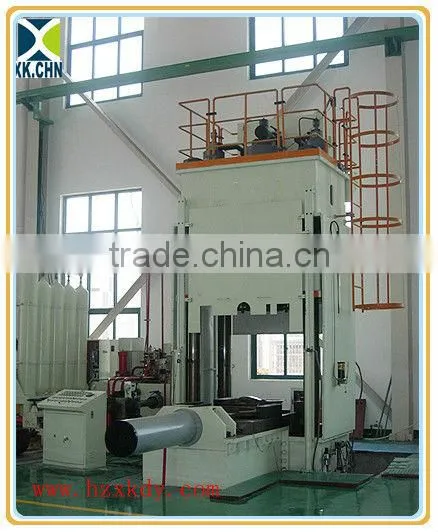

Aluminum Casting Hydraulic Press (Die-Casting Machine) adopts manual shimming aluminum and fan blade inlet of aluminum process and is controlled by PC programmable controller. It has three word orders of spot moving, manual and semi-automatic, and the work is completed by a triple progress of slowly pressed spraying, fast pressed spraying and pressing. After die-casting, sprue cut on the machine. Y type motor and the similar motor rotor die casting are suitable for this die casting machine. 400kN die-casting machine is mainly used in micro motor rotor die casting such as fan and washing machine, etc with the featuring of small specification, so no need to three level pressing and cut on the machine.
This die-casting machine is with the features of stability, reliability, flexibility, convenient and power saving.
Technical Specification of Aluminum casting hydaulic machine
Items | Unit | HY13-40 | HY13-100 | HY13-200 | HY13-500 | HY13-500 | ||
Range of Motor Rotor die casting | Micro Motor | Y80-Y160 | Y160-Y280 | Y280-Y500 | Y280-Y500 | |||
Mould Clamping Force | KN | 400 | 1000 | 2000 | 5000 | 5000 | ||
Injection Force | KN | 100 | 380 | 560 | 2000 | 2000 | ||
Injection Place | KN | 600 | 900 | 3150 | 3150 | |||
Blanking Force | KN | 90 | 300 | 1000 | 1000 | |||
Working Hydraulic Force | Mpa | 25 | 25 | 25 | 25 | 25 | ||
Slide Stroke | mm | 320 | 600 | 580 | 900 | 900 | ||
Injection Piston Stroke | mm | 150 | 200 | 250 | 500 | 500 | ||
The Max. Opening | kg | 520 | 750 | 900 | 1500 | 1500 | ||
The Max. Note Aluminum Quantity | kg | 6 | 19 | 150 | 150 | |||
Speed of Slider | Quick Downstream | mm/s | 65 | 100 | 100 | 120 | 120 | |
Slow Downstream | mm/s | 10 | 16 | 16 | 10 | 10 | ||
Return | mm/s | 105 | 100 | 80 | 100 | 100 | ||
Speed of Injection Piston | Slow Injection | mm/s | 155 | 38 | 65 | 45 | 45 | |
Quick Injection | mm/s | 600 | 1000 | 1000 | 1000 | 1000 | ||
Return | mm/s | 405 | 100 | 160 | 100 | 100 | ||
Working Table Size | Length | mm | 400 | 630 | 900 | 1380 | 1380 | |
Width | mm | 650 | 630 | 900 | 1400 | 1400 | ||
Electric Motor Power | Kw | 505 | 11 | 15 | 74 | 74 | ||
Overall dimension | Length | mm | 1750 | 2480 | 3100 | 5445 | 5445 | |
Width | mm | 1150 | 1650 | 4600 | 5518 | 5518 | ||
Height | mm | 2480 | 3855 | 4450 | 5018 | 5018 | ||
Weight | kg | 2500 | 7500 | 14000 | 35000 | 35000 |
