4G LTE Router with RS232/485/422, WAN/WiFi Cellular Router
HJ8100 series 3G/4G router is an industrial router used for IoT data transmission, and it provides wireless data transmission to terminals through WiFi/3G/4G/433/315.
HJ8100 series adopt high-performance technical-grade processor
and wireless data module combined with embedded Linux OS to ensure stability and safety of data transmission. The hardware is equipped with two serial ports( RS232/RS485/RS422 arbitrarily configured), one WAN port and one WiFi access point. It can simultaneously connect serial port device, Ethernet device and WiFi device to realize transparent transmission and routing function.
This product has been widely used in IoT industry, such as smart grid, ITS(Intelligent Transportation System), industrial automation, intelligent building, environmental protection, smart healthcare, agriculture, water affairs, smart home, mobile POS terminal, financial, petroleum and petrochemical, monitoring, etc.
Industrial design:
*Adopt high performance industrial processor
*Adopt high performance industrial wireless module
*Support low power consumption mode, including sleep mode, timing mode
*full metal casing, high level of protection
*Wide power input (DC 9-30V)
Stable performance:
*Watchdog design, guarantee the system stability
*Adopt anti-dropping mechanism, guarantee terminal online forever
*Power supply interface built-in reverse protection
Higher Standard and easy to use:
*Provide standard RS232/RS485/RS422 ports, Ethernet port and WiFi which can directly connect with serial port devices, Ethernet and WiFi devices
equipment
*Provide standard wired Ethernet port ( support standard PPPOE protocol) which can directly connect with ADSL
*Easy to use, flexible and varied work modes available
*Easy software configuration and maintenance
Powerful function:
*Support RS232/RS485/RS422 directly connected to serial port devices
*Support varied WAN connection modes,including static IP, DHCP, Client, PPPOE,3G/UMTS/4G/LTE, dhcp-4G
*support TCP/IP, UDP, FTP(optional), HTTP network protocols
*WiFi support 802.11b/g/n, WiFi AP, AP repeater, Repeater Bridge work modes
*WiFi support WEP/WPA/WPA2
encryption Methods and MAC address filtering
Hardware System
CPU: 32-bit high-performance MIPS processor
SDRAM: 512MB
FLASH: 128MB
Network Parameters
Standard and Network: IEEE 802.3,IEEE 802.3u
Support TD-LTE,FDD LTE,EVCDMA,TD-SCDMA,CDMA1X,EDGE/GPRS
VPN: Support VPDN,APN network access
Routing protocol: Static route,RIP,RIPv2,OSPF
WiFi Parameters
Standard and frequency: Support 802.11b/g/n standard
Bandwidth: IEEE 802.11b/g: 54Mbps(max)
IEEE 802.11n: 300Mbps(max)
Security: Support WEP, WPA/WPA2, etc
TX power: 16dB ±2 802.11b
Interface Type:

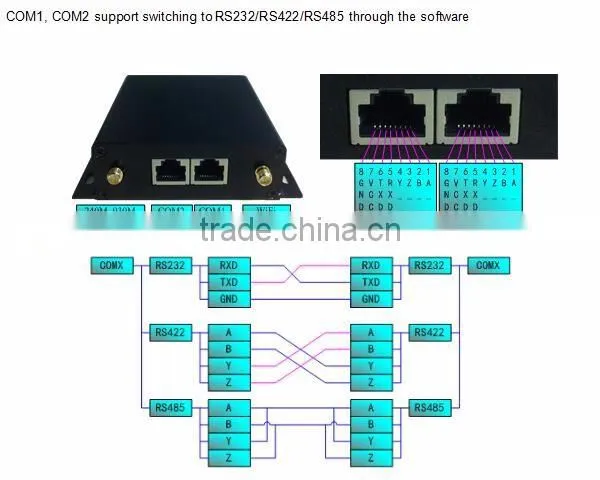

Serial port: 2 Serial Ports( RS232/RS485/RS422 arbitrarily configured), support DTU function
Ethernet port: 1x10/100Mb Ethernet port
Antenna Interface: 2xStandard cellular SMA antenna interface,1xStandard WIFI SMA antenna interface
SIM/UIM card Interface
Standard Drawer type user card interface,support SIM/UIM card
Software features
Management: Local or remote web configuration (IE 6 or higher version)
Physical characteristics
LED Indicator: SYSTEM(Power state),LAN,NET(network state)
Power supply: +5~+26V DC
Power consumption: idle state: <160mA@12V DC; Communication status: <280mA@12V DC
DIMENSION(lengthx width x high): 115mm x 104mm x 28mm
Weight: About 280g
Operating temperature: -20℃~+70℃
Storage temperature: -40℃~+85℃
Relative humidity: <95% (non-condensing)
After-sales service
One year warranty

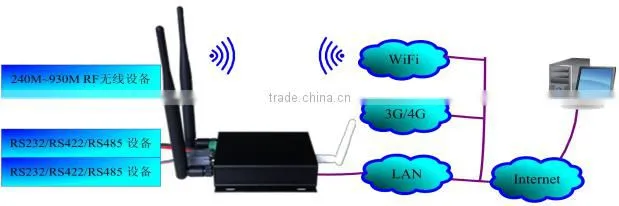

1) WiFi work as Station mode
The device can be connected to the Internet via WiFi, 3G/4G or LAN.
2) WiFi work as AP mode
The device can be connected to the Internet via 3G/4G or LAN, and then supply WiFi hotspot for mobile phones and laptops.
