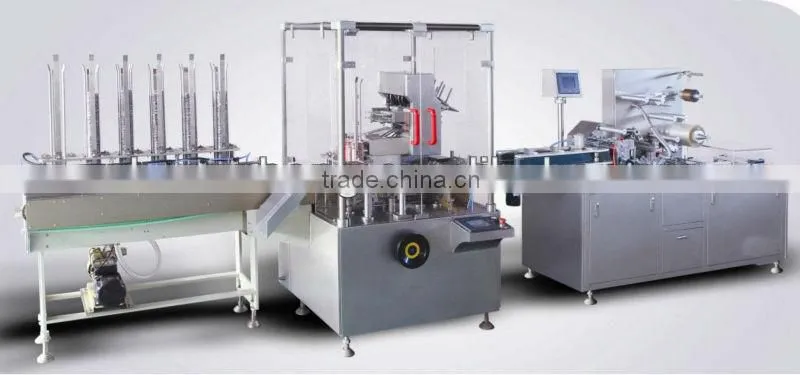

DETAILED PRODUCT DESCRIPTION:
This equipment is new model developping base on integ-rated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for condom, sachet, pouch, soft al/al strips, wound plaster, onintment plaster, facial mask plaster, coffee bag into carton. On line product feeding and detecting, leaflet fold(1-4folds)and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
Main technical parameter
Main technical parameter
Item |
Parameters |
|
Encasing speed |
30-120 boxes /min |
|
Sachet quantity |
1-12[Base on sachet or pouch size] |
|
Box |
Quality requirement |
250-350g/M2[Base on carton size] |
Dimension range(L×W×H) |
(65-150)mm×(30-85)mm×(12-45)mm |
|
Leafle |
Quality requirement |
60-70g/M2 |
Unfolded leaflet specification |
(80-250)MM×(90-170)MM |
|
Fold range |
[1-4]Fold |
|
Compressed air |
Working pressure |
≥0.6mpa |
Air consumption |
200-240L/min |
|
Power supply |
220V 50HZ |
|
Main motor power |
1.10kw |
|
Machine dimension(L×W×H) |
2880MM×1140MM×1800MM |
|
Machine weight |
1500kg |
|
