AL/PL Blister-Carton Packaging Production Line

Name: AL/PL Blister-Carton Packaging Production Line
Brand: SUNHANG
SKU: 112783897
Availability: InStock

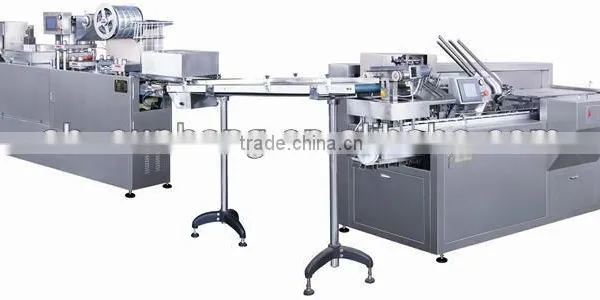

AL/PL Blister-Carton Packaging Production Line thumbnail-1

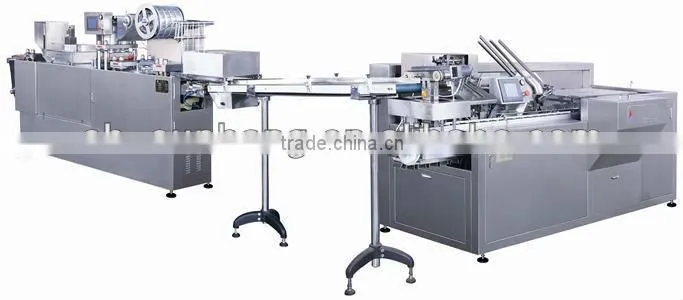

AL/PL Blister-Carton Packaging Production Line photo-1

US$ 1 - 1 MOQ: 1 Set

Key Specifications

Get Latest Price

Application:

Beverage, Food, Medical

Packaging Type:

Pouch

Packaging Material:

Wood

Contact Supplier Request Quote Chat Now

Shanghai Sunhang Pharmaceutical Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application Beverage, Food, Medical

Packaging Type Pouch

Packaging Material Wood

Automatic Grade Automatic

Driven Type Electric

Voltage 380V 50Hz 3phase

Power 5.5KW

Place of Origin China

Brand Name SUNHANG

Model Number AL/PL

Weight 1600

Dimension(L*W*H) 2900X7200X1550MM

Certification GMP

AL/PL Blister-Carton Packaging Production Line

SUMMARIZE

To decrease the cost and packing products cross pollution, our company develop these two machines in line.

The main part of this line is our DPB series blister packaging machines connecting the ANTZ series cartooning machines through conveyor device and the and controlled by PLC. t can make blister packing unqualified products rejection, leaflets folded and sealing carton.

This equipment suits to pack capsules, tablets and ampoules into AL/PVC or Paper/PVC blisters then connect with cartooning machine.

Note:we can manufacture the Filling Machine and Cartoning Machine in line according to customers’ requirements.

Aluminum Plastic Main Technical Parameter

Punching Frequency		6~50cycles/min
Punching sheet		4blisters/stroke
Adjustable Stroke		40~160mm
Productivity		1000-12000sheets/hour
Max Forming Area and Depth		245×155×26mm
Total Power		380V 50Hz 3phase 5.5Kw
Specificationa of Packing Material	Medical PVC	250×0.25(0.15~0.50mm)
	PTP AL Foil	250×0.02mm
Air-Consumption		≥0.22m3/min
Pressure		0.5~0.6MPa
Overall Dimension		2900×7200×1550mm
Weight		1600kg

Carton Main Technical Parameter

Electric power	AC220V phases and five-wires 50Hz total power 1.5kw
Production capacity	Rotation speed 50-100b/min Speed of folding machine:50-80p/min
Volume of consumption	20m3/h(pressure 0.5-0.7Mpa)
Leaflet	Quality requirement 50-65g/m2
	Unfolded Leaflet Specifications(80-300)×(70-210)mm
	Folded Leaflet Specifications(70-210)×(20-40)mm
Overall dimension(mm)	2800×880×1800
Weight	Approximately1200kg
