MPC-AS Vertical Sticker Labeling Machine

MPC-AS Vertical Sticker Labeling Machine thumbnail-1
MPC-AS Vertical Sticker Labeling Machine photo-1
US$ 6,500 - 8,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Food, Medical, Other
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Shanghai Sunhang Pharmaceutical Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Chemical, Food, Medical, Other
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Mechanical
Voltage AC 220V/380V 50/60HZ
Power 750W
Place of Origin China
Brand Name www.sunhang.com
Model Number MPC-AS
Dimension(L*W*H) 1600*800*1300mm
Weight 220kg
Certification CE and GMP

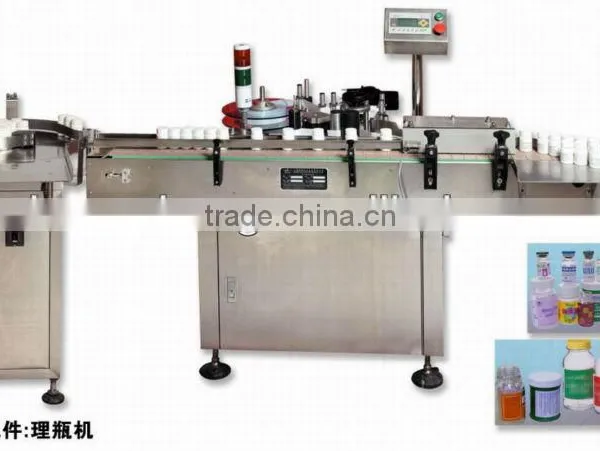

MPC-AS Vertical Sticker Labeling Machine

Vertical Sticker labeling machine is mostly applicable for the automatic labeling of column, square or taper package containers for medicine, daily chemical, food cultural supplies, electronics and etc.

It can automatically check the length of labels and is equipped with warning device of insufficient labels, broken labels and no achromatizes.

The human machine touch screen is easy and visual to operate.

In addition, it has rich help functions and failure display function.



Technical Parameter

MODEL

MPC-AS

DRIVE

Step Motor

BOTTLE DIAMETER

Diameter: 20-100mm

BOTTLE HEIGHT

20—400mm

LABELING SPEED

100-200pcs/min

LABELSIZE

Width:15-150mm  Length:15-300mm

PRECISION

+/- 1mm

LABLE ROLL

Max: Diameter 300mm

LABLE CORE

Stander:Diameter 75mm

MACHINE SIZE

1600 x 800 x 1300mm

WEIGHT

220kg

POWER

AC 220V/380V  50/60HZ 750W



    Self-Adhesive Labeling machine



NO

NAME

QUANTITY

BRAND

1

Step Motor

1

Delta

2

Label  Motor Driven

1

3

Conveyer belt motor

1

VTV

4

gear case for conveyer belt motor

1

5

volume label motor

1

6

gear case for volume label motor

1

7

labeling magic eye

1

SUNX

8

Label check magic eye

1

9

PLC

1

Delta

10

man-machine interface

1

11

Conveyer belt

1

LILAI(SHANGHAI)

12

synchronous belt

1



13

coding machine

1

pneumatic/ dynamoelectric
