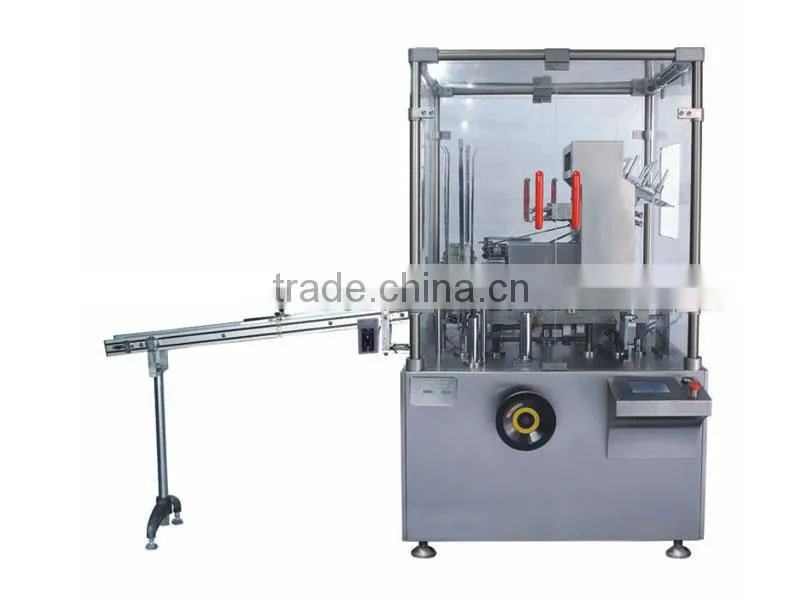

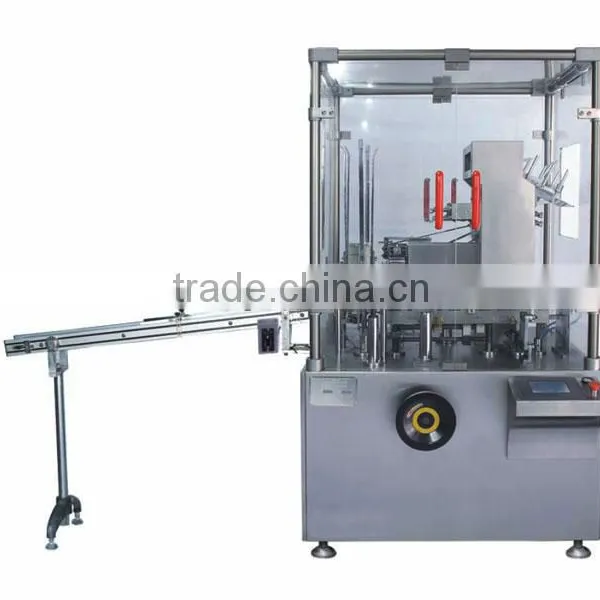

Vertical JDZ-120K Automatic Cartoning Machine

Name: Vertical JDZ-120K Automatic Cartoning Machine
Brand: sunhang
SKU: 112782547
Availability: InStock

US$ 1 - 1 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Brand Name:

sunhang

Model Number:

JDZ-120K

Shanghai Sunhang Pharmaceutical Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name sunhang

Model Number JDZ-120K

Dimension(L*W*H) 1380x1140x1800MM

Weight 1000KGS

Certification GMP

Condition New

Specifications

This model is automatic high speed continuous cartoning machine with high performance product incorporates

DETAILED PRODUCT DESCRIPTION:

Feature :

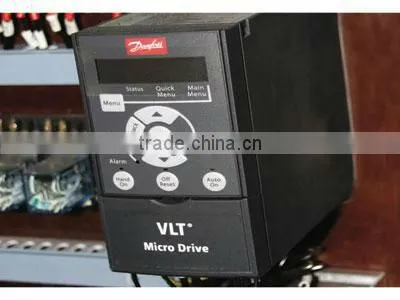

1 International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2 Adopt human-machine operation system.

3 Automatically stop when machine is overload.

4 Automatically reject lacking of package product and leaflet.

5 Automatically display trouble, Alarm and count finished products.

6 Stable performance,operation is easy.

Main technical parameters:

Item		Parameters
Encasing speed		30-120 boxes/min
Box	Quality requirement	250-350g/M2 [Base on carton size]
	Dimension range (L×W×H)	(65-150)mm×(30-85)mm×(14-50)mm
Leaflet	Quality requirement	60-70g/M2
	Unfolded leaflet specification (L×W)	(80-250)MM×(90-170)MM
	Fold range (L×W)	[1-4]Fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	120-160L/min
Power supply		220V 50HZ
Main motor power		0.75kw
Machine dimension(L×W×H)		2400MM×1140MM×1800MM
Machine weight		about12000kg
