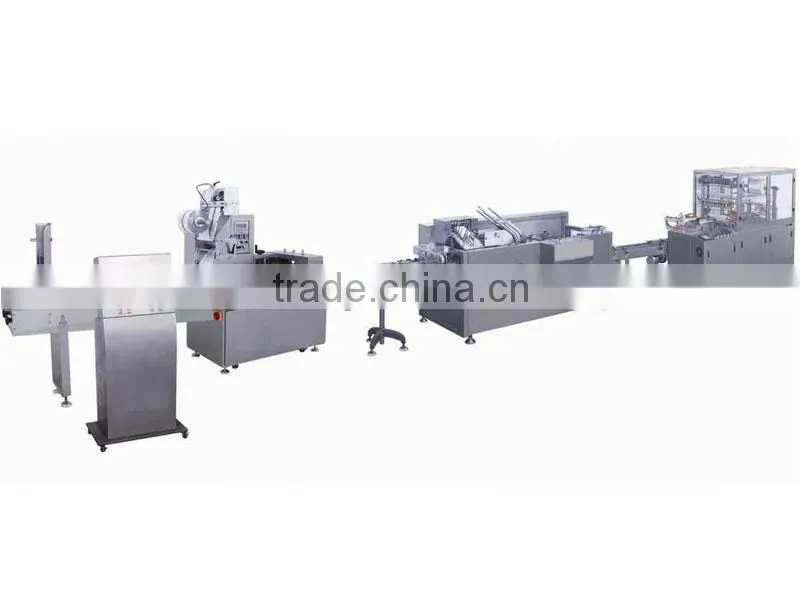

Help CenterPillow Packing and Cartoning Machine Production Line
Related Products
-
JDZ-100L Automatic Pillow Package Cartoning Machine Production LineUS$ 1 - 1MOQ: 1 Set -
Tube/Ointment Cartoning MachineUS$ 1 - 1MOQ: 1 Set
-
TMP-300/JDZ-100 Automatic Cartoning Machine and Cellophane Wrapping Machine Production LineUS$ 1 - 1MOQ: 1 Set
-
WZH-180 Multifunctional Automatic Cartoning MachineUS$ 1 - 1MOQ: 1 Set
-
WZH-180Multifunctional Automatic Cartoning MachineUS$ 1 - 1MOQ: 1 Set
Specifications
This model is automatic high speed continuous cartoning machine with high performance product incorporatesDETAILED PRODUCT DESCRIPTION:
Application:
The machine is suitable for the automatic packing of box-shape single objects or box-shape single objects or box-shape many objections such as pharmacy, food, health products, tea, cosmetic present stationary, audiovisual products etc. It can replace the box in the paper and also can reduce the packing cost about 95%. Using the machine to pack can defend takeproof moisture and proof dust , and etc. It improve the productions level , increase the productions additional value . The machine can be linked to with boxing machine to compose packing production line.
Feature:
1.Compact and reasonable structure, stable and advanced performance, easy and convenient operation.
2.Double frequency inverter control, and stepless variable speed. The length of bag can be set and be cut at any time, no need to be trailed operationon one step, and save time and film.
3.Adopt international famous electric components, PLC control, friendly interface, with convenient and rapid setting of parameters.
4.The indication of fault is clear, and function is more humanized.
5.Highly sensitive lectric-eye color code tracing, which can make the sealing position be more accurate.
6.Accurate temperature setting, which is suitable for all various of packing materials and enhances the quality of seal.
7.Set the function of positioning power-off, without sticking to the blade and no waste of film.
8.Simple and clear transmission system with more reliable work and more convenient maintenance.
9.The control is realized through the soft, which facilitate the function regulation and technology upgrade, and they can also satisfy the production requirement.
10.Automatic feeder device on the blister, which is suitable for the automatic feeding for aluminum plastic dosage panel with many kinds of specifications.
11.Addition of automatic tick device can be removed Queliao, multi-material, cut the bad packaging materials.
12.DZP-250S/DZP-400S are adopted servo motor.
Main technical parameters:
Model |
DZP-250D(E) |
DZP-400D(E) |
Packing capacity |
30-150 (PCS/Min) |
|
Bag size (mm) |
L(60-190)×W(30-110)×H(5-40)mm |
L(60-190)×W(30-180)×H(5-60)mm |
Max. width of film |
250mm |
400mm |
Power supply |
AC220V 50HZ 2.4KW |
AC220V 50HZ 2.65KW |
Weight |
700kg |
800kg |
Overall dimension (LxWxH,mm) |
3350×1800×650mm |
3500×1800×800mm |

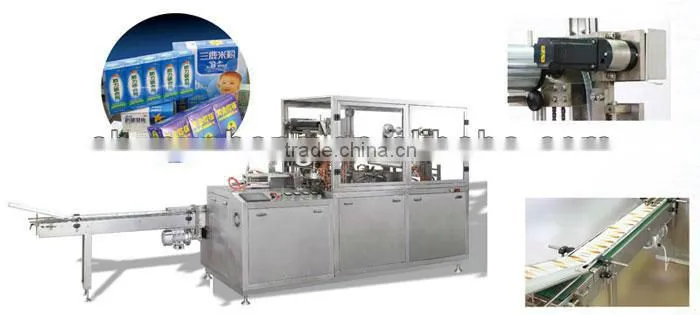

Application:
The machine is suitable for the automatic packing of box-shape single objects or box-shape single objects or box-shape many objections such as pharmacy, food, health products, tea, cosmetic present stationary, audiovisual products etc. It can replace the box in the paper and also can reduce the packing cost about 95%. Using the machine to pack can defend takeproof moisture and proof dust , and etc. It improve the productions level , increase the productions additional value . The machine can be linked to with boxing machine to compose packing production line.
Feature:
1.Adopting the man-machine interface , PLC control, Failures diagnosing software.
2.Adopting the servo motor to feed film. The speed and the length can be adjusted. Using the film smooth and length accurate.
3.Adopting full cylinder drive. Steady running. accurately Synchronizing. conveniently adjusting hard sealing.
4.Compact structure. Easy to operation and Manipulating .complete safety device.
Main technical parameters:
Model |
TMP-300E |
TMP-400E |
Packaging material |
OPP,BOPP , PVC |
|
Production capacity |
5-30 packs/min |
|
Bag size (mm) |
L(50-300)xW(40-220)xH(10-90)mm |
L(50-400)xW(40-250)xH(10-90)mm |
Power supply |
AC380V 50Hz, 6.5Kw |
|
Working pressure |
0.6 Mpa |
|
Air consumption |
400L/min |
|
Weight |
750kg |
|
Overall dimension |
2300x910x1850mm |
|
Input table dimension |
1650x320x930mm |
|
