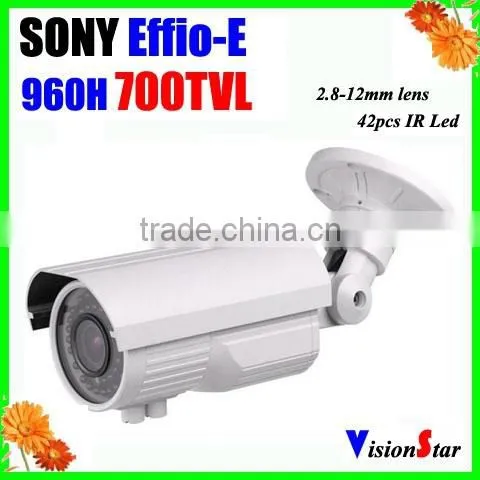

Excellent Image 42pcs IR Leds Manual Zoom 2.8-12mm 1/3" SONY Effio-E 700TVL Outdoor Using CCTV Camera Vision Star

Model No.

VS-W5370D

Camera Type

Color Weatherproof IR Camera

Image Sensor

1/3"SONY EXview HADII CCD

Effective Pixels

PAL:976(H) x 582(V)570K

NTSC:976(H) x 494(V)480K

Signal System

PAL /NTSC

Horizontal Resolution

700 TV Lines

Min. Illumination

0.001 LUX/F1.2

Lens Mount

Varifocal 2.8-12mm Lens/F1.4

Iris Control

 Auto/Manual

S/N

≥52Db (AGC OFF)

OSD Menu

Support

Language

8 languages  (EN, FR, DT, ES, POR, CN, RCN, RUS,JP)

White Balance

Push/User/Antic/Manual/Push lock/ATW

Picture Adjust

Mirror/Brightness/Contrast/Sharpness/HUE/Gain

ATR

Yes

Motion Detection

Yes

Privacy Mask

4 masks

Day & Night

Color / B/W / Auto

Noise Reduction

2D-NR

HLC

Yes

AFD

Yes

SYNC

Internal

Shutter

PAL:1/60(Sec.)~1/100,000(Sec.);
NTSC: 1/50(Sec.)~1/100,000(Sec.)

Infrared Luminary

42 pieces IR-LED

Infrared Wavelength

850 nm

Illuminate Distance

More than 40 M

Waterproof Criterion

IP66

I/O Connector

Power : DC Power Jack , Video Output : BNC

Video Output Level

1.0 Vp-p (75 Ohms, composite)

Supplied Voltage

DC12V Voltage

Power Consumption

IR On: 280mA max., IR Off: Less than 130mA

Dimensions

295(W) x120(H) x103(D)mm include bracket

Weight

Approx 1.30kg
