Shenzhen Vision Star is a high-tech enterprise integrating with research & development, production, and sales of Surveillance System especially in CCTV monitoring system. Since its establishment, Vision Star devotes itself to R&D of CCTV camera and Digital Video Recorder. With strong R&D team, scientific management, top-quality products and excellent service, Vision Star has growing so rapidly and now become one of the leading professional security manufacturers.
Waterproof Bullet Outdoor IR Camera;
1/3" Sony 960H Double -Speed CCD;
DSP: Sony Effio-A CXD4141GG;
Ultra High Resolution 800TVL, 0.0003Low Lux;
2D&3D-DNR, Sense-up, Defog;
OSD /BLC /Motion Detection /Privacy Masking;
60pcs F5 IR-LED, IR Range more than 50M;
2.8-12mm varifocal lens ( 2Mega Pixels );
OSD Languages: Chinese,English,Japanese,French,Portuguese,German,Russian,Spanish.
Model No. |
VS-W5180B |
|
Camera Type |
Color Weatherproof IR Camera |
|
Image Sensor |
1/3" SONY 960H Exview HADII CCD(Dual CCD) |
|
System |
PAL: 673+4151+5148 NTSC: 672+4151+5148 |
|
Effective Pixels |
PAL: 1020(H)x508(V) NTSC: 1020(H)x596(V) |
|
Sync. System |
Internal |
|
Signal System |
PAL /NTSC |
|
Horizontal Resolution |
800TV Lines |
|
Min. Illumination |
0.003 Lux/F1.2 (IR ON 0 Lux) |
|
Lens |
2.8-12MM Varifocal Lens ( 2Mega Pixels ) |
|
IR LED |
60pcs F5 IR LED |
|
Infrared Wavelength |
850 nm |
|
Illuminate Distance |
50M |
|
Noise Reduction |
3DNR+2DNR |
|
Sense Up |
Yes |
|
Defog |
Yes |
|
S/N Ratio |
More Than 52dB (AGC Off) |
|
OSD Menu |
LENS: |
AUTO/MANUAL |
SCENE SELECT: |
CUSTOM/FULL AUTO/INDOOR/OUTDOOR/BLACKLIGHT/ITS |
|
ATR-EX: |
ON/OFF CLEAR FACE:LOW/MIDDLE/HIGH/OFF |
|
SYNC MODE: |
INT |
|
COMMUNICATION |
INT |
|
FLIP: |
HV/OFF/V/H |
|
Shutter/AGC: |
AUTO/MANUAL |
|
PICT Adjust: |
BRIGHTNESS/CONTRAST/SHARPNESS/HUE/COLOR GAIN |
|
WDR |
150DB |
|
DAY/NIGHT: |
AUTO/DAY/NGHT |
|
HLC/BLC: |
OFF/ HLC/BLC |
|
Moving detection: |
ON/OFF |
|
LANGUAGE: |
Chinese/English/Japanese/German/French /Russian/Portuguese/Spanish |
|
White Balance: |
ATW FRAME/SPEED/DELAY CNT/ENVIRONMENT |
|
S/N : |
OFF/low/middle low/middle/middle high/high |
|
EZOOM: |
ON/OFF |
|
DIS: |
ON/OFF |
|
PRIVACY MASK: |
Area selection/Display/position/color/Transparency/Mosaic |
|
MOTION DET: |
ON/OFF |
|
CAMERA RESET |
|
|
I/O Connector |
Power: DC Power Jack, Video Output: BNC |
|
Video Output |
1.0Vp-p Composite Output (75Ω / BNC) |
|
Power Supply |
DC12V(+/-10%) |
|
Working Temperature |
-10°C~50°C |
|
Working Humidity |
≤ 95% RH |
|
Dimensions |
286(L) x 101(W) x 98(H)mm |
|
Weight |
Approx. 1.25kg |
|

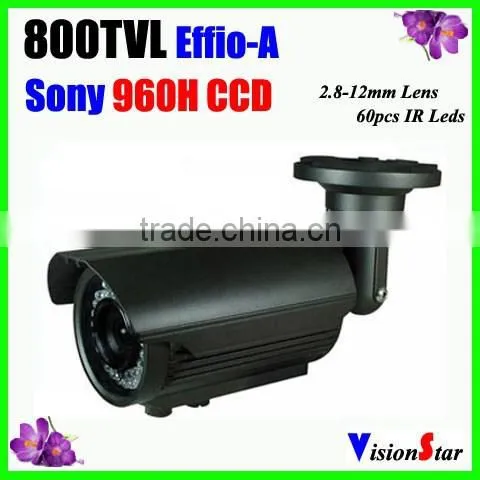

Product Show
CCTV Camera PCB ICX672/3AKA Voice Recording IC Chip Infrared IR Led Camera Varifocal Lens 2.8-12mm Security Zoom Camera Outdoor
Competive price!!!
Two yeasrs Warranty!!!
High Quality!!!
Good service!!!
We use a color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-5 working days, by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate caused in destination country's Customs.
We offer 2 years warranty, during this period, for any quality problems please contact us for solving. And we offer life-time technicial supportings. We tested each camera before shipping, if you found any problems after received, please contact us immediately. We are trying every effort to keep new progress, we promise to offer the users high quality products and excellent service. We look forward to establish a long-term business relationship with you based on integrity and honesty.
