Home > Electrical & Electronics > Variable-Frequency Drive > HBS86H Leadshine DSP Closed Loop dc Stepper Motor Drive

HBS86H Leadshine DSP Closed Loop dc Stepper Motor Drive

Name: HBS86H Leadshine DSP Closed Loop dc Stepper Motor Drive
Brand: Leadshine
SKU: 112778701
Availability: InStock

HBS86H Leadshine DSP Closed Loop dc Stepper Motor Drive thumbnail-1

HBS86H Leadshine DSP Closed Loop dc Stepper Motor Drive thumbnail-2

HBS86H Leadshine DSP Closed Loop dc Stepper Motor Drive thumbnail-3

HBS86H Leadshine DSP Closed Loop dc Stepper Motor Drive photo-1

HBS86H Leadshine DSP Closed Loop dc Stepper Motor Drive photo-2

HBS86H Leadshine DSP Closed Loop dc Stepper Motor Drive photo-3

US$ 50 - 200 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Leadshine

Model Number:

HBS86H

Contact Supplier Request Quote Chat Now

Fast To Buy Commerce (Shenzhen) Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Leadshine

Model Number HBS86H

Motor Type Stepper Motor

Welcome

Thanks for your visiting, for product details, competitive price or more items, welcome to contact Surina directly. :)

Product Description

HBS86H leadshine DSP closed loop dc stepper motor drive

This Stepper Drive of HBS86H is specilized to maintain you the same model which is made in China from Leadshine company, otherwise, it Will not match you stepper Motor.
Features

Input voltage 18-75VDC, peak output current up to 8A

Motor standard 1000 line encoder, support vector closed-loop control, a fundamental solution to the traditional stepper motor lost step problem;
57,86 series hybrid can drive servo motor, motor speed up to 3000RPM;
The use of advanced current control technology, can greatly improve the characteristics of the motor to accelerate, extend the service life of machinery;
6 DIP switch settings, the largest up to 40,000 micro-step, can be set to reverse the direction of motor parameters;
Drive configuration overload signal output, improve the quality of system operation;
Supports RS232 communication protocol, Jane strong debugging software used ProTuner complete parameter settings, online monitoring and other functions.

Specifications

Model	Phase	Peak current (A)	Working voltage (V)	Adaptation motor	Weight (kg)	Overall dimensions (mm)	Control signal
HBS507	3	7	18-50VDC	57	0.28	116 * 69.2 * 26.5	The differential / single-ended
HBS86	2	8	24-80VDC	57,60,86	0.57	151 * 97 * 52	The differential / single-ended
HBS86H (with fan)	2	8	20-70VAC or 30-100VDC	57,60,86	0.57	151 * 97 * 52	The differential / single-ended
HBS1108	2	8	90-90VAC	86	1.6	180 * 140 * 70	The differential / single-ended
HBS2206	3	6	150-150VAC	86110	1.8	180 * 140 * 70	The differential / single-ended

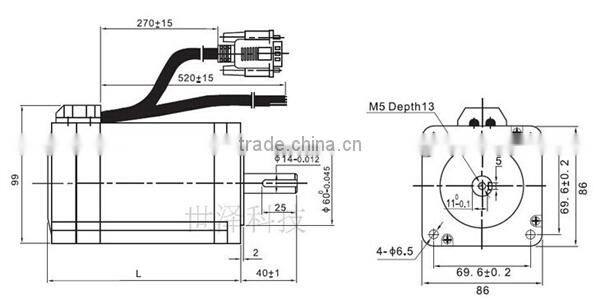

Dimension

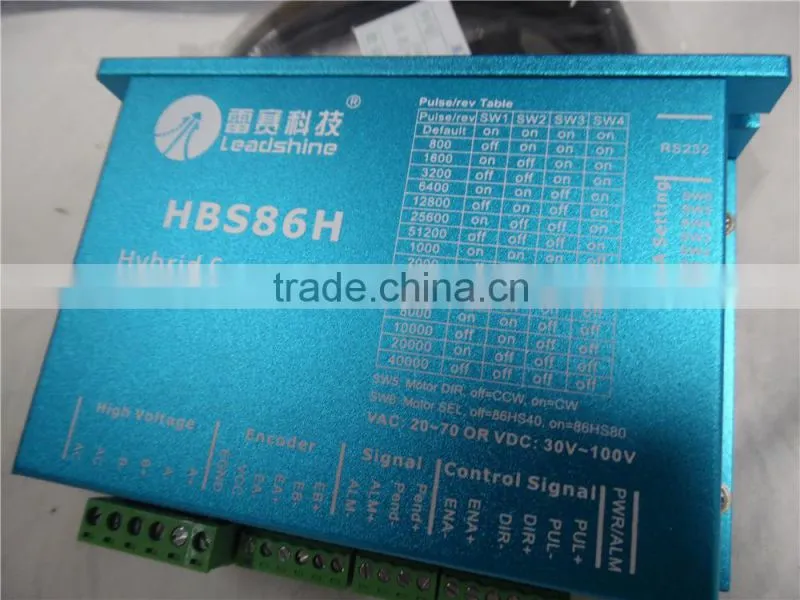

Product photos

Applications

For a variety of small and medium sized automation equipment and instruments, such as: engraving machine, stripping machine, marking machine, cutting machine, laser machines, plotters, medical equipment, machine tools, automatic assembly equipment, electronic processing equipment. In user expectations low noise, high speed device applications particularly good effect.

Related DSP stepper kits

57HS10-EC-1000+HBS86	2ph	1.8°	4.2A	143oz-in	1.0NM	NEMA23	57mm	0-8A	20-50VDC
57HS20-EC-1000+HBS86	2ph	1.8°	5.8A	286oz-in	2.0NM	NEMA23	57mm	0-8A	20-50VDC
60HS30-EC-1000+HBS86	2ph	1.8°	3.0A	429oz-in	3.0NM	NEMA24	60mm	0-8A	20-50VDC
573HBM10-1000+HBS507	3ph	1.2°	5.8A	143oz-in	1NM	NEMA23	57mm	7A	18-48VDC
573HBM20-1000+HBS507	3ph	1.2°	5.8A	286oz-in	2NM	NEMA23	57mm	7A	18-48VDC
1103HBM200H-1000+HBS2206	3ph	1.2°	4.2A	2857oz-in	20NM	NEMA42	110mm	6A	220VAC
1103HBM120H-1000+HBS2206	3ph	1.2°	4.2A	1714oz-in	12NM	NEMA42	110mm	6A	20VAC
