M415B 2-phase leadshine stepper motor driver
M415B two-phase stepper motor drives, compact, suitable for driving small two-phase hybrid stepping motor.
Bipolar constant current chopper using new technology, higher output speed, torque is greater. Its segment features make the stepper motor running higher accuracy, reduced vibration and noise is reduced.
Features
High performance, low price
The maximum supply voltage 36VDC
Drive current up to 1.5A
Stationary current is automatically reduced by half
Maximum response frequency 100KHZ
Bipolar constant current chopper method
Optically isolated signal input
Compact, easy to install
Has a power reversal protection
Specifications
| Description | M415B | |||
| Min | Typical values | Max | Unit | |
| Output current (rms) | 0.21 | - | 1.5 | A |
| Input supply voltage | 18 | 24 | 36 | VDC |
| A current control signal input | 7 | 10 | 16 | mA |
| Stepping pulse frequency | 0 | - | 100 | KHz |
| Insulation Resistance | 500 | MΩ | ||
Electrical connection

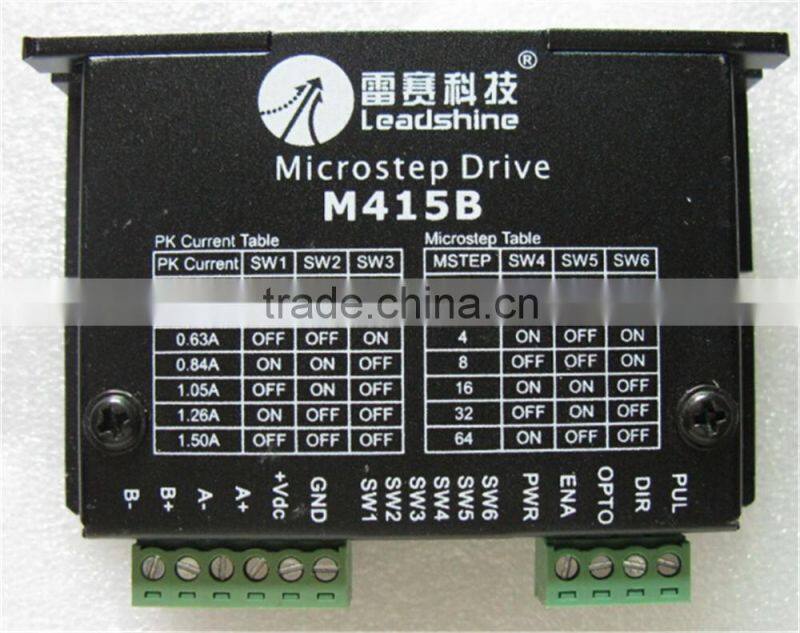

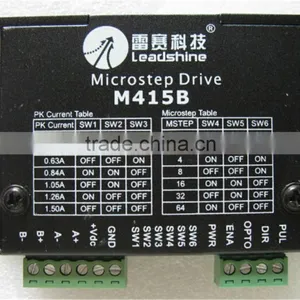

Product photos
Application
For a variety of small and medium sized automation equipment and instruments, such as: air marking machine, marking machine, labeling machine, cutting the word machine, laser marking machine, plotter, CNC machine tools, small engraving machine, automatic assembly equipment. Users expect little noise, high-precision, high-speed device applications excellent special effects.
Similar items
| Model | Phase | Control Type | Power | Matching Motors | Configuration | ||
| Voltage(V) | Current(A) | (NEMA) | |||||
| AC | DC | Peak | |||||
| M542 | 2 | Step & Dir | - | 24 - 50 | 1.0 - 4.2 | 17, 23 | DIP switch |
| M542-05 | 2 | Step & Dir | - | 24 - 50 | 1.0 - 5 | 17, 23 | DIP switch |
| M550 | 2 | Step & Dir | - | 20 - 50 | 1.2 - 5.0 | 14, 17, 23 | DIP switch |
| M752 | 2 | Step & Dir | - | 20 - 70 | 1.26 - 5.2 | 23, 34 | DIP switch |
| M860 | 2 | Step & Dir | - | 24 - 80 | 2.4 - 7.2 | 17,23,34 | DIP switch |
| MA860 | 2 | Step & Dir | - | 18 - 50 | 2.4 - 7.2 | 34, 42 | DIP switch |
| MA860H | 2 | Step & Dir | 36 - 80 | 50 - 110 | 2.4 - 7.2 | 34, 42 | DIP switch |
