Home > Electrical & Electronics > Variable-Frequency Drive > ACS306 Leadshine Cnc Brushless dc Servo Motor Drive

ACS306 Leadshine Cnc Brushless dc Servo Motor Drive

Name: ACS306 Leadshine Cnc Brushless dc Servo Motor Drive
Brand: Leadshine
SKU: 112778723
Availability: InStock

ACS306 Leadshine Cnc Brushless dc Servo Motor Drive thumbnail-1

ACS306 Leadshine Cnc Brushless dc Servo Motor Drive thumbnail-2

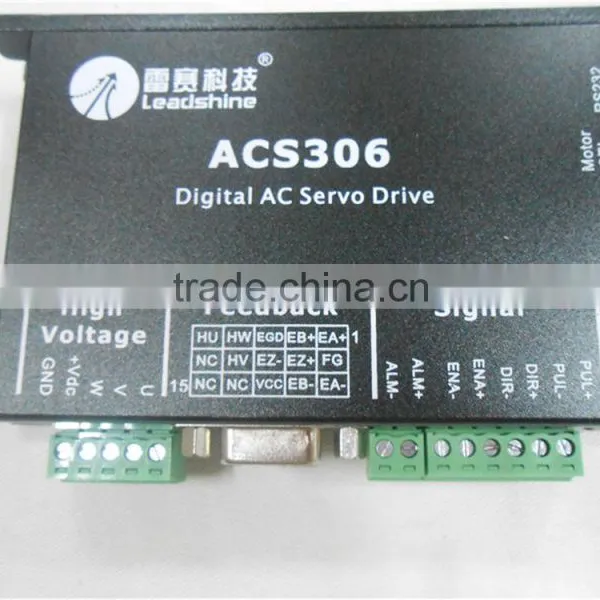

ACS306 Leadshine Cnc Brushless dc Servo Motor Drive photo-1

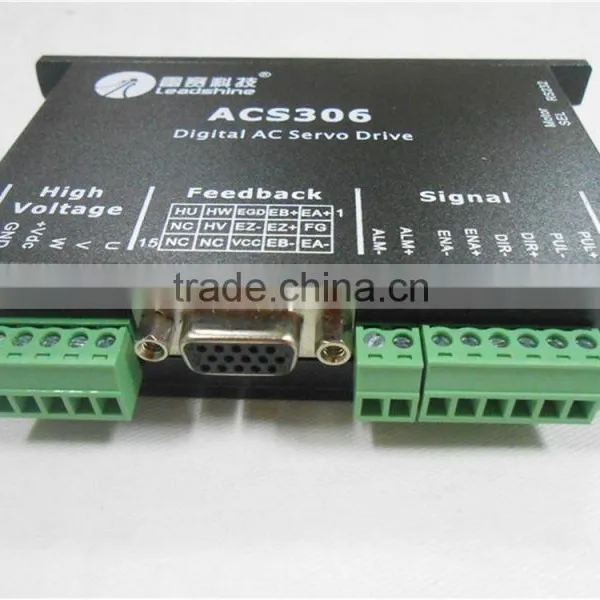

ACS306 Leadshine Cnc Brushless dc Servo Motor Drive photo-2

US$ 50 - 200 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Leadshine

Model Number:

ACS306

Contact Supplier Request Quote Chat Now

Fast To Buy Commerce (Shenzhen) Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Leadshine

Model Number ACS306

Motor Type Stepper Motor

Welcome

Thanks for your visiting, for product details, competitive price or more items, welcome to contact Surina directly. :)

Product Description

ACS306 leadshine cnc brushless dc servo motor drive

This Stepper Drive of ACS306 is specilized to maintain you the same model which is made in China from Leadshine company, otherwise, it Will not match you stepper Motor.
Features

Advance DSP current control technology
Step & Dir, or CW/CCW control
High precision; smooth & quiet motor movement
Input voltage: 20-30 VDC
Continuous current: 6 A
Peak current: 15A
Capable of driving 10 - 180 W brushless servo motors
Electronic gear rate from 1/255 to 255
Built-in motion profile for servo tuning and testing
Small size, surface-mount technology

Specifications

Model

Series

Control Mode

Power

Matching Motors

Configuration

Feedback

Voltage(V)

Current(A)

Torque

Velocity

Position

Cont

Peak

Enc

Hall

ACS306

ACS

√

20-30

up to 180W

RS232

√

ACS606

ACS

√

18-60

up to 360W

RS232

√

ACS806

ACS

√

20-80

up to 480W

RS232

√

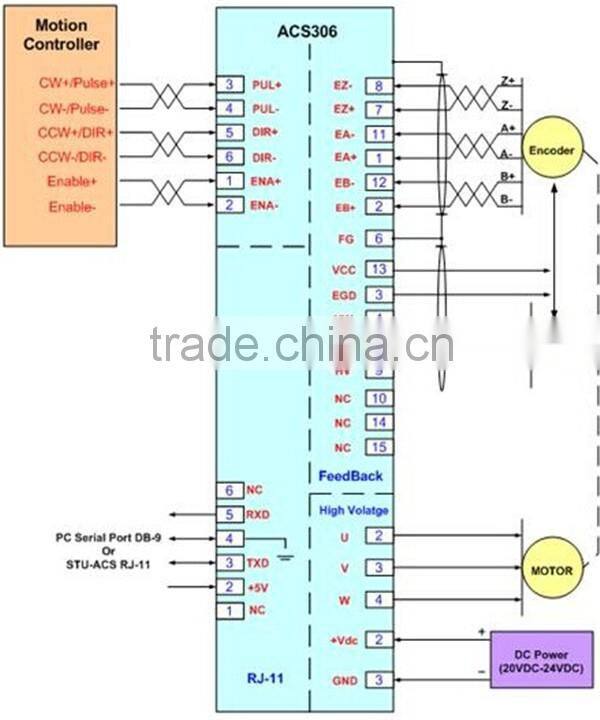

Typical Connecitions

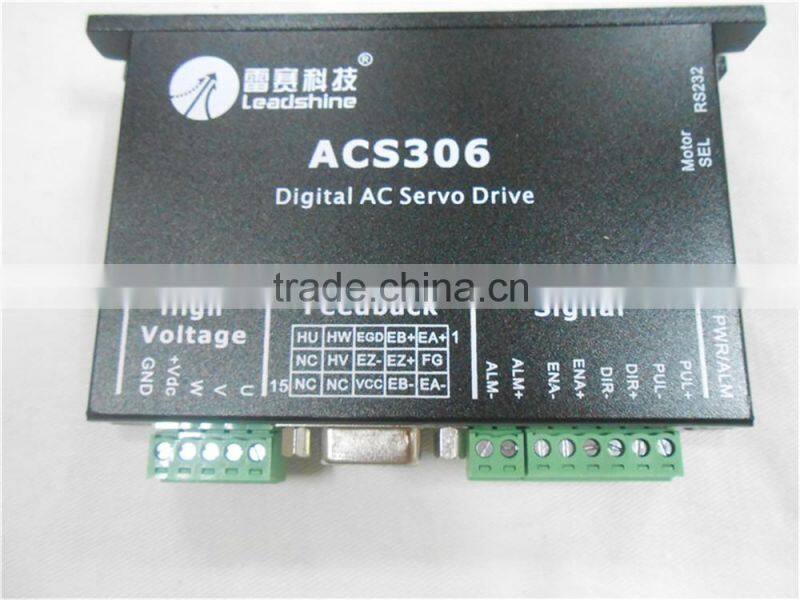

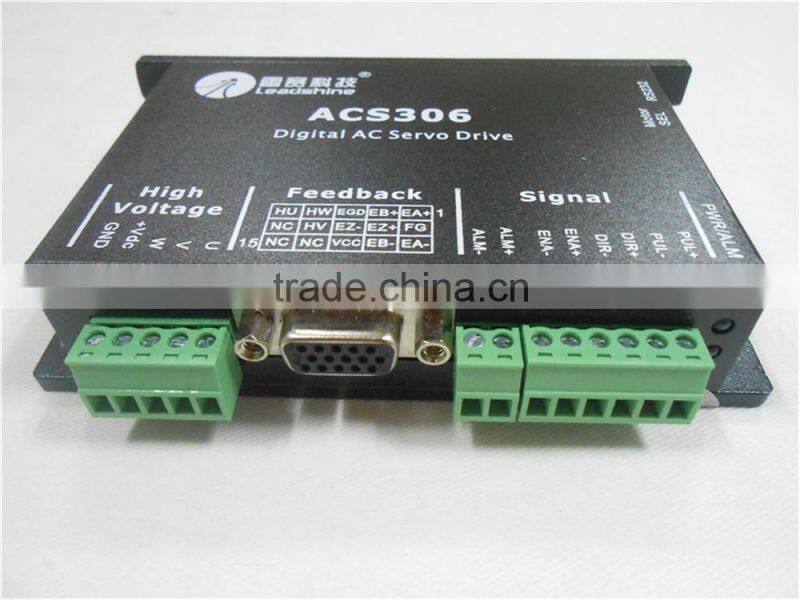

Product photos

Applications

Suitable for inkjet printers, dispensers, electronic processing equipment, automatic capture equipment, special machine tools, packaging equipment, medical equipment, imaging detection equipment and other automated equipment. Users expect minimal vibration, low noise, high precision and high-speed devices, the better.

Related brushless motor kits

BLM57025-1000+ACS306	25W	1.6A	11.3oz-in	0.08NM	3000RPM	18~30VDC
BLM57050-1000+ACS306	50W	3A	22.6oz-in	0.16NM	3000RPM	18~30VDC
BLM57090-1000+ACS306	90W	3.45A	41oz-in	0.29NM	3000RPM	18~30VDC
BLM57025-1000+ACS606	25W	1.6A	11.3oz-in	0.08NM	3000RPM	18~60VDC
BLM57050-1000+ACS606	50W	3A	22.6oz-in	0.16NM	3000RPM	18~60VDC
BLM57090-1000+ACS606	90W	3.45A	41oz-in	0.29NM	3000RPM	18~60VDC
BLM57130-1000+ACS606	130W	5.3A	58oz-in	0.41NM	3000RPM	18~60VDC
BLM57180-1000+ACS606	180W Square Flange	6.7A	82oz-in	0.57NM	3000RPM	18~60VDC
BLM57180-1000+ACS806	180W Square Flange	6.7A	82oz-in	0.57NM	3000RPM	20~80VDC
57BL180D-1000+ACS606	180W Circular Flange	7A	82oz-in	0.57NM	3000RPM	18~60VDC
57BL180D-1000+ACS806	180W Circular Flange	7A	82oz-in	0.57NM	3000RPM	20~80VDC
