Home > Electrical & Electronics > Variable-Frequency Drive > HBS86 Leadshine Close Loop Stepper Drive Match Nema 23 Nema 24 Nema 34 Stepper Motor

HBS86 Leadshine Close Loop Stepper Drive Match Nema 23 Nema 24 Nema 34 Stepper Motor

Name: HBS86 Leadshine Close Loop Stepper Drive Match Nema 23 Nema 24 Nema 34 Stepper Motor
Brand: Leadshine
SKU: 112778517
Availability: InStock

HBS86 Leadshine Close Loop Stepper Drive Match Nema 23 Nema 24 Nema 34 Stepper Motor thumbnail-1

HBS86 Leadshine Close Loop Stepper Drive Match Nema 23 Nema 24 Nema 34 Stepper Motor thumbnail-2

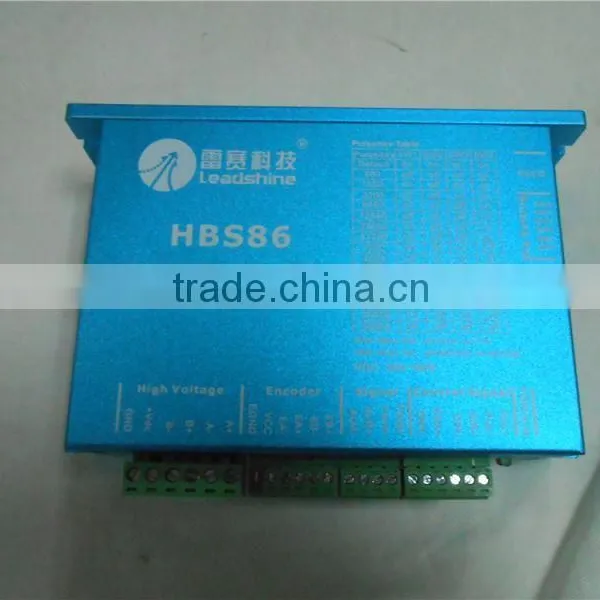

HBS86 Leadshine Close Loop Stepper Drive Match Nema 23 Nema 24 Nema 34 Stepper Motor photo-1

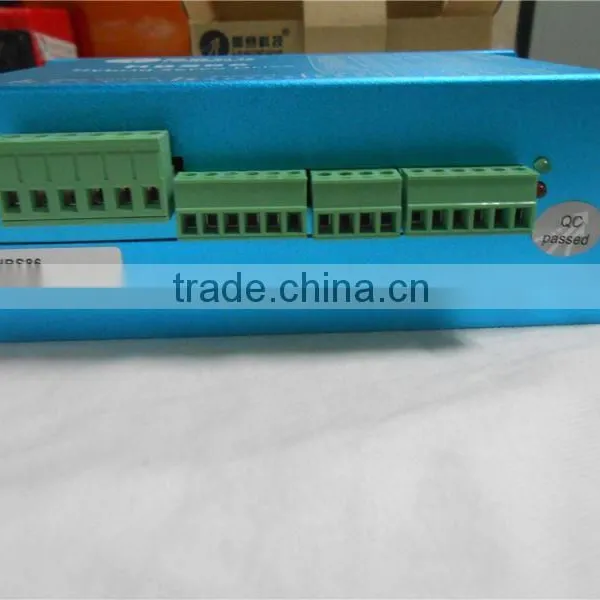

HBS86 Leadshine Close Loop Stepper Drive Match Nema 23 Nema 24 Nema 34 Stepper Motor photo-2

US$ 50 - 200 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Leadshine

Model Number:

HBS86

Contact Supplier Request Quote Chat Now

Fast To Buy Commerce (Shenzhen) Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Leadshine

Model Number HBS86

Motor Type Stepper Motor

Welcome

Thanks for your visiting, for product details, competitive price or more items, welcome to contact Surina directly. :)

Product Description

HBS86 leadshine close loop stepper drive match nema 23 nema 24 nema 34 stepper motor

This Stepper Drive of HBS86 is specilized to maintain you the same model which is made in China from Leadshine company, otherwise, it Will not match you stepper Motor.
Features
Be simple servo motor drive Lemire supporting 57,60,86 machine seat

Voltage input range: 18 ~ 80 VDC
Maximum peak current: 8A
Subdivision range: 200 ~ 51200ppr
Signal Input: Differential / Single-Ended, pulse / direction or double pulse, the signal level 5 ~ 24V compatible
Optically isolated inputs, strong anti-jamming capability
Impulse Response Frequency: 200KHz
Serial communication function, current, breakdown can be adjusted, signal edge, adjustable alarm output logic functions
Closed-loop vector control, ensure the motor speed high torque output, while ensuring that the motor is not lost step
Variable current control, motor heating greatly reduced
Ultra low noise and vibration
Overvoltage, overcurrent, tracking error ultra poor protection

Specifications

Model	Phase	Peak current (A)	Working voltage (V)	Adaptation motor	Weight (kg)	Overall dimensions (mm)	Control signal
HBS507	3	7	18-50VDC	57	0.28	116 * 69.2 * 26.5	The differential / single-ended
HBS86	2	8	24-80VDC	57,60,86	0.57	151 * 97 * 52	The differential / single-ended
HBS86H (with fan)	2	8	20-70VAC or 30-100VDC	57,60,86	0.57	151 * 97 * 52	The differential / single-ended
HBS1108	2	8	90-90VAC	86	1.6	180 * 140 * 70	The differential / single-ended
HBS2206	3	6	150-150VAC	86110	1.8	180 * 140 * 70	The differential / single-ended

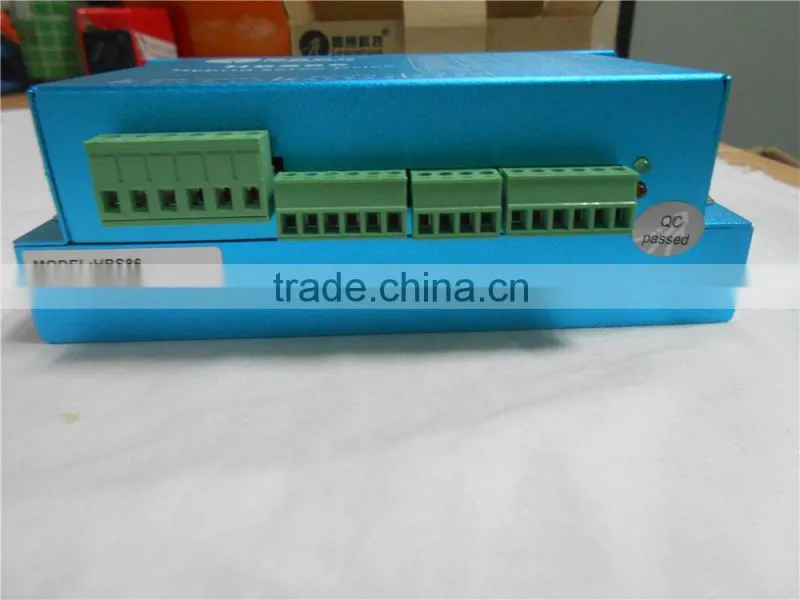

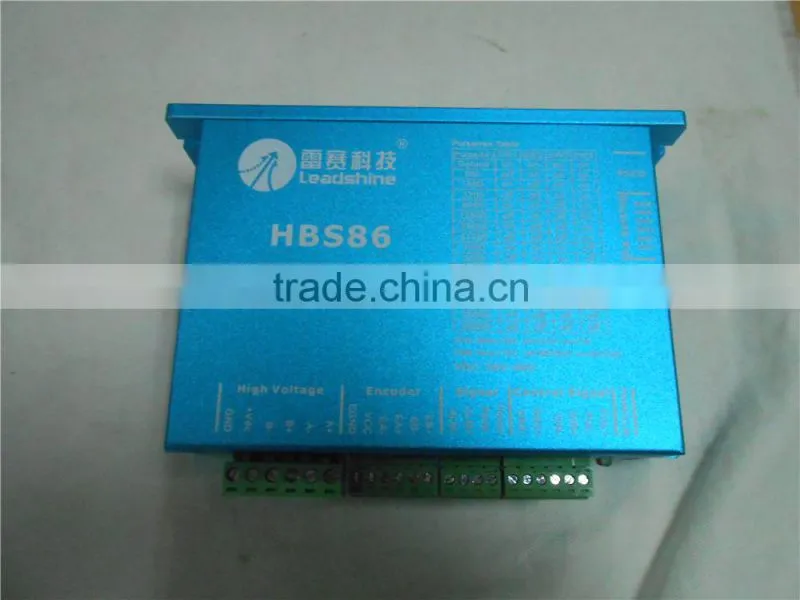

Product photos

Applications

For a variety of small and medium sized automation equipment and instruments, such as: engraving machine, stripping machine, marking machine, cutting machine, laser machines, plotters, medical equipment, machine tools, automatic assembly equipment, electronic processing equipment. In user expectations low noise, high speed device applications particularly good effect.

Related DSP stepper kits

57HS10-EC-1000+HBS86	2ph	1.8°	4.2A	143oz-in	1.0NM	NEMA23	57mm	0-8A	20-50VDC
57HS20-EC-1000+HBS86	2ph	1.8°	5.8A	286oz-in	2.0NM	NEMA23	57mm	0-8A	20-50VDC
60HS30-EC-1000+HBS86	2ph	1.8°	3.0A	429oz-in	3.0NM	NEMA24	60mm	0-8A	20-50VDC
573HBM10-1000+HBS507	3ph	1.2°	5.8A	143oz-in	1NM	NEMA23	57mm	7A	18-48VDC
573HBM20-1000+HBS507	3ph	1.2°	5.8A	286oz-in	2NM	NEMA23	57mm	7A	18-48VDC
1103HBM200H-1000+HBS2206	3ph	1.2°	4.2A	2857oz-in	20NM	NEMA42	110mm	6A	220VAC
1103HBM120H-1000+HBS2206	3ph	1.2°	4.2A	1714oz-in	12NM	NEMA42	110mm	6A	20VAC

Packaging & Shipping

Delivery details:

1. Item will be shipped out within 1-5 working days by DHL, FedEx, UPS, EMS ASAP. We will choose the best and suitable shipping company. Usually it takes 3-7 working days to most of the country. You will be notified the tracking number once shipped out.
2. International buyers are responsible for any and all customs, duties taxes and brokerage fees to be paid to the courier or government. Please contact your local customs office with further inquiries in this issue. We will not be responsible for with respect to any tariffs, duties, or any and all other charges requested or required by destination countries.

Terms of sales:
1. We accept 14 days return policy. If you want to return the item, please contact us in 14 days first and make sure the package is un-opened. The buyer has to pay for the go and back delivery cost and the custom fee of each country. Once we received the product and checked, we will make refund for the part in 24 hours.
2. We make sure the item is brand new with original package and offer 1 year warranty for the quality.
3. Any quality problem in normal use during the warranty period, We offer free repair. The buyer should pay the return cost and our company will pay the re-shipping cost.
