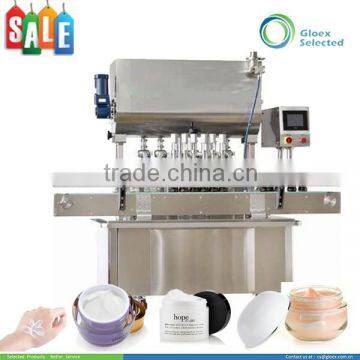

Automatic Cream Filling Machine

Automatic Cream Filling Machine thumbnail-1
Automatic Cream Filling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Barrel, Bottles, Cans
Contact Supplier Request Quote Chat Now
Wuhan Global Exchange Import And Export Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Chemical, Commodity, Food, Medical
Packaging Type Barrel, Bottles, Cans
Packaging Material Glass, Metal, Plastic, Wood
Automatic Grade Automatic
Driven Type Pneumatic
Voltage AC 220V 50/60HZ
Power By Type
Place of Origin Hubei, China
Model Number C-811-1A-PP105-B01
Dimension(L*W*H) By Type
Weight By Type 550-1550kg
Certification CE Approval
After-sales Service Provided Engineers available to service machinery overseas





Buying Guides

 Dear Customer



Thanks for browsing our products , the Cream Filling Machine demonstrating here is apply for Cream Filling Automatically , in bottles , jar etc.  compare with other machnies , we put our emphasis on



- Configure with material hopper and rotary valve to enable more stable filling

- Equip with Anti-dropping device to ensure accurate and clean filling

- With its optinal features to adapt your special requirement , more detail information refer to the respective chapters herinafter



For other Cream Filling Solutions, please click following links to get support.





Automatic Cream Filling MachineAutomatic Cream Filling Machine



Product Description



•     Configure with hopper and rotary valve to enable the stability of filling.

•     Anti-dropping design to make clean and accurate filling.

•     PLC control and HMI setting up to make easy operation and trouble shooting.

•     Easy-adjusting design for filling volume and filling container adjustment.

•     Customized piston ring selection to adapt different filling materials.

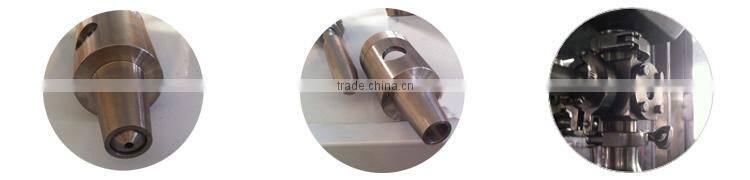

Following are the construction photo  of filling nozzle / anti-dropping sub-assembly , and rotoy valve installed under the material hopper , which are enable the stability fo filling

 Automatic Cream Filling Machine





Construction



We believe that the key components will determine the quality of the products, therefore , we only apply international reputable components for our products



Automatic Cream Filling Machine



No

Components

Material / Short List

1

Products Touching Parts

Stainless Steel 304 as the standard,

Stainless Steel 316,316L at the Buyer’s option

2

Structure / Support

Carbon Steel or High Class Aluminum

3

Main Surface

Stainless Steel 304

4

Programmable Logic Controller

Delta, Siemens, Mitsubishi, Panosonic

5

Touch Screen

Weinview, Siemens,Delta,Kinco, Panosonic

6

Stepper/Servo Motor

Teco, Delta, Panosonic,Leadshine

7

Frequency Convertor

Delta,Schneider,Leadshine

8

Key Electric Components

Schneider,Chint, Ls, Ark

9

Key Protection & Relay

Schneider

10

Cylinder, Filter

Airtac , SMC

11

Photocell Sensor

Autonics , Keyence,Leuze, Panosonic,Datalogic

12

Vacuum Sucker

Airtac, Sunx

13

Temperature Controller

Omoron







Specification



Catalogue1A-xxx-x

AVF/APF

Specific Type

F-4

F-6

F-8

F-12

F-16

Special Apply for

Suitable for the filling of High-viscous liquids and Paste

Control Method

Automatic

Number of Filling Nozzles

4

6

8

12

16

Container Moving Type

Liner

Liner

Liner

Liner

Liner

Ideal Range of Filling-ml

20-100,50-250,100-500,200-1000,500-2500 upon the client’s requirement

Filling Speed –BPM/100ml

40-60

60-80

70-90

80-100

90-120

Filling Tolerance

20-1000ml<= (+/-)1%,1000-5000<= (+/-)0.5%

Compress Air Required

4-6 bar

4-6 bar

4-6 bar

4-6 bar

4-6 bar

Air Consumption

10M3/Hour

15M3/Hour

20M3/Hour

30M3/Hour

40M3/Hour

Power Requirement

AC 220V 50/60HZ

AC 220V 50/60HZ

AC 220V 50/60HZ

AC 220V 50/60HZ

AC 220V 50/60HZ

Electricity Consumption

0.75kw

0.75kw

1.2kw

2.2kw

2.2k w

Approximate Weight -Net

550kg

900kg

1100kg

1300kg

1550 kg

Dimension ( ‘mm )

1300*1200*1800

1600*1200*1800

1900*1200*1800

2300*1200*1800

2600*1200*1800

With Hopper

Yes

Yes

Yes

Yes

Yes

With Pre-Heating

No

No

No

No

No

With Shield

No

No

No

No

No







Approvals



CE Approval



Other Application

This machine also adapts for following application include Cream Filling



Issue

Application Description

Applicable Filling Materials

1)      High -Viscosity Liquids

2)      Applicable for Paste

Granule Requirement

Applicable for Liquid which consist of small size granule content

Corrosive Requirement

Applicable for Liquid which consist of Corrosive and Poisonous content

Typical Filling Material

High viscosity liquid like: Grease, Cream, Gel, Cosmetics , Paste , Sauce and so on

Filling Range

10ml – 5000ml



Automatic Cream Filling Machine





Our Services

Automatic Cream Filling Machine





Customization

Customization Philosophy



The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:



Feature

Options

Remark

Product touching parts

1)     Stainless Steel 304

2)     Stainless Steel 316

3)     Stainless Steel 316L



Structure

1)     Carbon Steel

2)     Stainless Steel 304



Surface

1)     Stainless Steel 304

2)     Stainless Steel 316



Filling Device

1)     Piston Pump

2)     Rotor Pump



Material Hopper

3)     With Pre-heating device

4)     With Stirring device

To get better fluidity of the filling liquid

Anti-dropping

1)     Anti-dropping block

2)     Anti-dropping valve

3)     Vacuum Sucking

4)     Anti-dropping sucking pump

To ensure clean and accurate filling, no dropping during filling

Protection

1)     No bottle no filling



Safety

1)     Protection cover

2)     Cover open , machine stop



Other Features

1)     Automatic Product Counting









Selection Guide



Selection Guides are available for circulation, contact us to get products selection and customization support.



 Automatic Cream Filling Machine



Statement

  • The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
  • Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
  • The features or functions appear in this profile subject to the additional description of quotation
