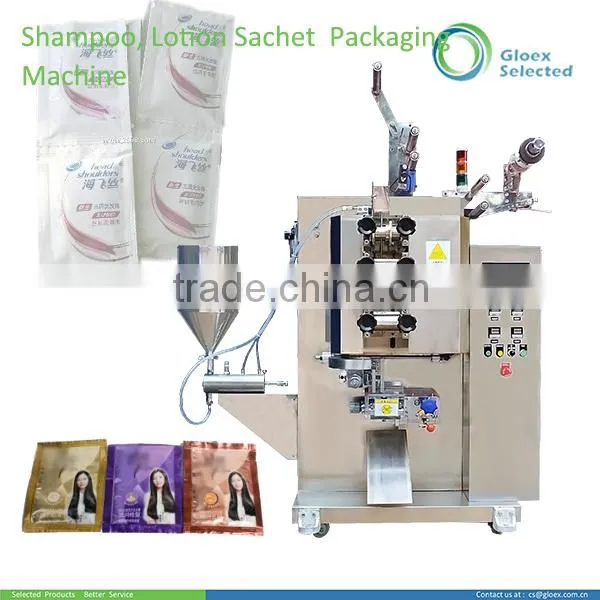

Back sealing High quality OEM automatic liquid packaging equipment

Issue

Application Description

Applicable Sachets

One of the following scenarios can be selected for one machine:

1)         3 or 4 sides sealing

2)         Back sealing

Applicable Products

Configure with different dosing devices, capable to pack with liquid, powder or granule

Applicable Packaging

Material

Laminate Heat sealable packing materials such as OPP/PE,BOPP/OPP/PE,PET/AL etc

Products Touching Parts

1)         Stainless Steel 304

2)         Stainless Steel 316

Sealing Patterns

1)         Checkerboard Pattern

2)         Flat Line Pattern

Sachet Cut-off Shape

1)       Flat Cut-off

2)       Serration Cut-off

3)       Linking Sachet Cut-off

Tear Notch

4)       Utilize the serration shaped cutting as the tear notch

5)       Addition Tear Notch Punching Device

Code Printing

1)         Pressing Type Coder built-in

2)         Ribbon Code Printing

3)         Code Inkjet Printing

Material Pre-heating

Apply for liquid dosing

Material Stirring

To stir material and get better fluidity

Sachet Types

1)         3 and 4 sides sealing types

2)         Back sealing types

Catalogue/1M-2/319-x

11

15

18

20

Sachet Size-Length ‘mm

50-210

50-210

50-210

50-210

Sachet Size-Width ‘mm

30-110

30-150

30-180

30-200

Filling Volume-gram

1-50

1-100

1-150

1-200

Packing Speed –Sachets/min

20-120

20-120

20-120

20-120

Power Requirement

AC380V 50/60HZ

Power Consumption-KW

3.8-4.0

Approximate Weight -kg

400-500

Dimension ( ‘mm )

1)         Liquid Sachet Packaging 1400*1000*1800

2)         Powder Sachet Packaging 1400*900*1670

3)         Granule Sachet Packaging 1400*1000*1670

More tightness of sealing

Add value of products

The roller pressing technology enable stable, high strength and longer time of sealing

More suitable for liquid sachet, No leakage

Double horizontal sealing rollers to reinforce the sealing effect, assure no leakage, no damage during market distribution

High Availability

The double driving motors and roller pressing design enhance the availability factor, achieve 7x24 hours operation

1/2-1/3 faster speed

The frequency conversion motor and roller design enable the packing process in non-stopping status other than stepping status

3 and 4 sides sealing integrated

Able to implement 3 and 4 side sealing in one machine without changing of any components

Code pressing function embedded

Code pressing function embedded on roller , it is not necessary to configure additional code printing devices

No

Components

Material / Short List

1

Products Touching Parts

Stainless Steel 304 as the standard,

Stainless Steel 316,316L at the Buyer’s option

2

Structure

Painted Carbon Steel

3

Surface

Stainless Steel 304

4

Programmable Logic Controller

Delta, Siemens, Mitsubishi, Panosonic

5

Touch Screen

Weinview, Siemens,Delta,Kinco, Panosonic

6

Stepper/Servo Motor

Teco, Delta, Panosonic,Leadshine

7

Frequency Convertor

Delta, Schneider,Leadshine

8

Key Electric Components

Schneider,Chint, Ls, Ark

9

Key Protection & Relay

Schneider

10

Cylinder, Filter

Airtac , SMC

10

Photocell Sensor

Autonics , Keyence, Leuze, Panosonic, Datalogic

11

Vacuum Sucker

Airtac, Sunx

12

Temperature Controller

Omoron

No

Document

Code

Description

1

Products Selection Guide

SG

To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement

2

Products Profile

PP

To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features

3

Installation Instruction

IN

To explain the step of installation of the equipment, and include commissioning instruction as well

4

User Manual

UM

To cover the content of Operation & Maintenance and Trouble Shooting
