New arriving OEM semi-automatic flour packing machine for paper bag
Dear Valuable Customer
Sincerely thanks for browsing our products, we are supplying this Weighting & Packing Machine , it is suiable for pack power or granule in a bag , from 5 kg to 50 kg . and with 3-12 bags packing speed.
Different from others , we are focusing to provide you cost and performance balance products, with proven technology and projects .
If you need other solutions like : you want to pack in a smaller volume, in a different container.Cilck the following links for more detail information
Powder & Granule Packing Solutions- Developed by Gloex Selected
Sachet Packing Solutions - Developed by Gloex Selected
This machine is applicable for packing powder, small granule in form of bag, with different type of bag sewing and/or sealing device, is capable to form a production line, the detail application description as following table:
Issue | Application Description |
Applicable Products | Suitable for powder or small granule dosing and filling. Such as sugar, salt, flour, starch, milk powder, coffee powder, dextrose, powder additive, rice, bean, plastic granule, and other chemical raw materials etc |
Applicable Containers | Open mouth bag like Paper bag , Plastic bag , even with inner or outer layer |
Following are the reference style of packaging
Standard Features
• Suitable for powder or small granule dosing and filling
• PLC &Touch screen HMI controlling enable easy operation parameter setting up and troubleshooting
• All stainless steel 304, except the structure, hence, suitable for chemical materials with corrosive characteristic.
• Changeable pneumatic bag clamming devices to adapt different bag size.
• Able to configure with conveyor , sewer and/or heat sealing machine to form a complete packing line
Catalogue/1D-xxxxx | 1C-1 | 1C-2 | 1C-3 |
Weighing Method | Gross Weighing | Net Weighting | Net Weight |
Number of Weighing Hopper | 1 | 1 | 2 |
Filling Range ‘kg | 5-25/10-50 | 5-25/10-50 | 5-25/10-50 |
Filling Accuracy | 1) <25kg +/-50g 2) 25-50kg +/- 100g | 1) <25kg +/-50g 2) 25-50kg +/- 100g | 1) <25kg +/-50g 2) 25-50kg +/- 100g |
Filling Speed -bags/min | >=3 | >=6 | >=12 |
Power Requirement | AC208-415V 50/60Hz | AC208-415V 50/60Hz | AC208-415V 50/60Hz |
Power Consumption-KW | 2.25 | 2.5 | 3.1 |
Compress Air Required-Bar | 6 | 6 | 6 |
Compress Air Consumption-m3/min | 0.2 | 0.3 | 0.5 |
Approximate Weight -kg | 600 | 800 | 1300 |
Dimension ( ‘mm ) | 4500*1500*2500 | 4800*1500*3000 | 5300*2000*3800 |
Except for the design of the machine, the key components configuration will determine the quality of the machine or system, below is the shortlist configuration of the key components:
No | Issue | Description of Material / Brand |
1 | Products Touching Parts | Made of Stainless Steel 304 as the standard configuration, 316,316L can be equipped subject to the client’s customization. |
2 | Structure | Powder coated carbon steel |
3 | Man-Machine Interface | Weinview, Schneider,MCGS |
4 | Screw Motor | Housin, CPG |
5 | Programmable Logic Controller | Fatek,Siemens |
6 | Key Electric Components | Schneider |
7 | Pneumatic Component | Airtac |
8 | Contactor and Other Relay | Chint |
9 | Load Cell | ZEMIC |

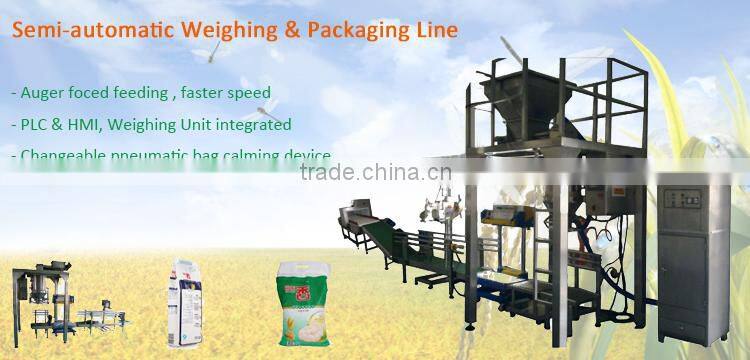

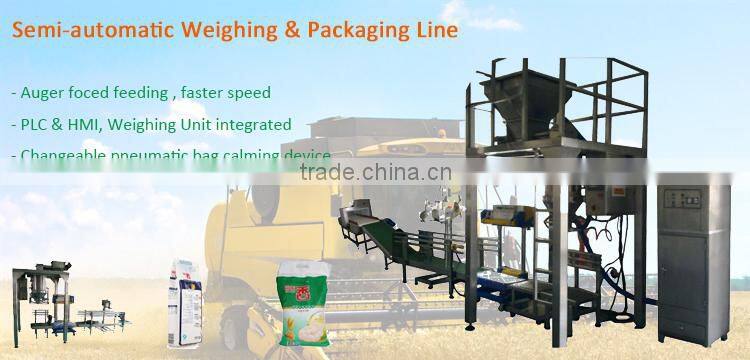

Compare with others, this machine is more focusing on the details, and these details determine the performance, with its advantage as following
a) Auger forced material feeding, faster speed
b) PLC & HMI, Weighing Unit integrated control module, high weighing accuracy
c) Changeable pneumatic bag calming device, flexible bag size adaption and tight sealing

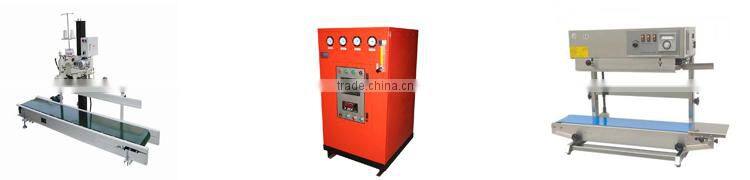

In order to form a production line, the corresponding sewing, heat sealing, or nitrogen generation machines are necessary accessories
In ordr to enable you understand our products conveniently , following documents are available, but not limited, to be provided upon the stage of purchasing
No | Document | Code | Description |
1 | Products Selection Guide | SG | To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 | Products Profile | PP | To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 | Installation Instruction | IN | To explain the step of installation of the equipment, and include commissioning instruction as well |
4 | User Manual | UM | To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
- Filling Products
- Type of bag to be filled, type and specification.
- Weight per bag
- Capacity requirement
- Protection requirement
- Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
