Buy Wholesale From China products large commercial folding machine for hospital

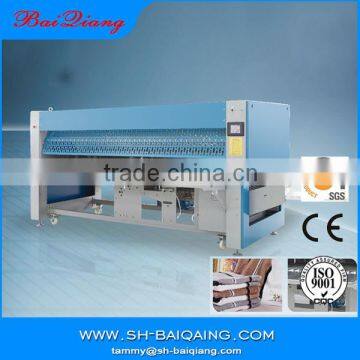

Products Image for large commercial folding machine for hospital
Machine Parameter for large commercial folding machine for hospital
| Model | ZD3000V | ZD3300V |
| Max Folding Speed(m/min) | 53 | 53 |
| Max Folding LxW(mm) | 3000*3000 | 3300*3300 |
| Max NO. of Folds(times) | 32 | 32 |
| Rated Voltage | AC380/50 | AC380/50 |
| Motor Power(kw) | 2.25 | 2.25 |
| Air Inlet Diameter(inch) | G1/2" | G1/2" |
| Min Air Inlet Pressure(Mpa) | 0.7 | 0.7 |
| Air Consumption(m3/h) | 10 | 10 |
| Dimension(mm) | 4116*2800*1760 | 4416*2800*1760 |
| Total Weight(kg) | 1780 | 1830 |
Important parts are imported :
1.Electro-Optical System is Germany P+F
2.Clutch Brake is Japan Mikipulley .
3.Motor is TaiWan S-Bond
4.Pneumatic Component is Korea ARK
Features of large commercial folding machine for hospital :
1- Intelligent controller with TOUCH SCREEN
2- With SELF-DIAGNOSIS function and SELF-MANAGEMENT SYSTEM, perfect SAFE-PROTECTION SYSTEM and SELF-MAINTENANCE for testing points
3- Programmable optional SINGLE, DOUBLE and FOUR lanes simultaneous folding
4- STANDARD 1st , 2nd and 3rd folds by air, 4th and 5th folds by Knife and blade; Optional 1st and 2nd folds by air, 3rd 4th and 5th folds by Knife and blade
5- AUTOMATIC BELT TENSIONING in cross fold section and jam alarm in cross fold section
6- All valves are pneumatically control
7- “By pass” system
8- Precise and accurate folds
9- Frequency inverter
10- Emergency stop buttons
11- Production counters per lane
12- High quality folding performance
13- Measurement by PHOTOELECTRIC SENSORS
14- Uses the HIGH INTELLIGENCE INFRARED TESTING SYSTEM to detect the size of linen and actual movement speed to improve the fold precision and accuracy.
15- With the function of FOUR CHANNELS FOLDING (TWO LATERAL FOLDS AND TWO CROSS FOLDS), this folder can improve the ironing and folding capacity of small linen, and lower the energy consumption
16- China pioneering ANTI-STATIC BAR effectively reduces the static on the linen, to improve the folding performance and ensure stable and reliable operation.
17- With PATENTED REVERSE ANTI-STATIC DEVICE, it can remove the static on the belts, to avoid the adhesion of the linen and belts in the process of folding.
18- Variable speed synchronizes by speed of flatwork ironer; Working together with various flatwork ironers
19- STACKER STATION is optional.
Standard Lateral Folds Section:
Folding width: Max. 3.3m
Number of lanes: 1, 2, or 4
Number of lateral folds: 1 or 2
Max. length single-lane: 3.3m
Max. length multi-lane: 1.2m
Standard Cross Folds Section:
Number of lanes: 1
Number of cross folds: 1, 2 or 3
Max. width: 850mm
