Specifications
cnc machine for advertising:1.3phase stepper motor and driver
2.DSP controller
3.free traiing
4.lasercut 5.3
Laser Cutting Machine specification:
Product model |
SM-3040 |
Maxi working area |
400*300mm |
Laser power |
80W |
Optional laser tube |
60W, 80W, 100W, |
body dimension(L*W*H) |
1100x660x450mm |
Packing size(L*W*H) |
1340x880x600mm |
Packing |
Standard plywood case for export |
Gross weight |
150KG |
Machine color |
Yellow & Gray; White & Gray |
Delivery time |
7 days |
Payment terms |
T/T |
Laser Cutting Machine performance:
Laser Types |
Hermetic And Detached CO2 Laser Tube |
Engraving speed |
0-75,000mm/min |
Cutting speed |
0-40,000mm/min |
Location precision |
<0.01mm |
Resetting positioning accuracy |
<0.01mm |
Power supply |
AC 220V/50Hz |
Gross power |
<1,000W |
Operating temperature |
0 - 45 degree |
Operating humidity |
5 - 95% |
Minimum shaping character |
English 1x1mm |
360 degree slope engrave |
Yes |
Driving system |
stepper |
Adjustable up-down distance of laser head |
30mm |
Up-down range of working table |
Mechanical 300mm |
Cooling mode |
Water-cooling and protection system |
Auxiliary Devices |
Exhauster And Exhaust Pipe |
Software |
Lasercut 5.3, support Coreldraw, Autocad |
Graphic format supported |
BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST, DWG, CDR, etc |

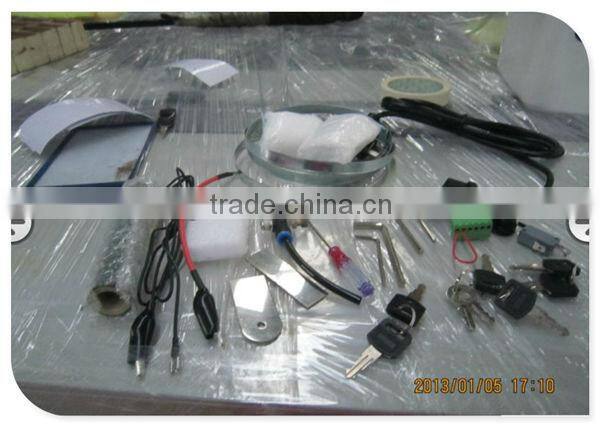

Laser Cutting Machine Standard Accessories:
Laser tube |
1 pc |
Optical lens & reflectors |
1 set |
Air Pump |
1 pc |
Exhaust fan + exhaust pipe |
1 set |
Software CD+ dongle |
1 set |
Rubber pipe |
3 pc |
Water pump |
4 pc |
User manual |
1 pc |
|
laser cutting machine Optional parts: 1.Rotary attachment Dia. 80mm,length 500mm (Chuck fixing)

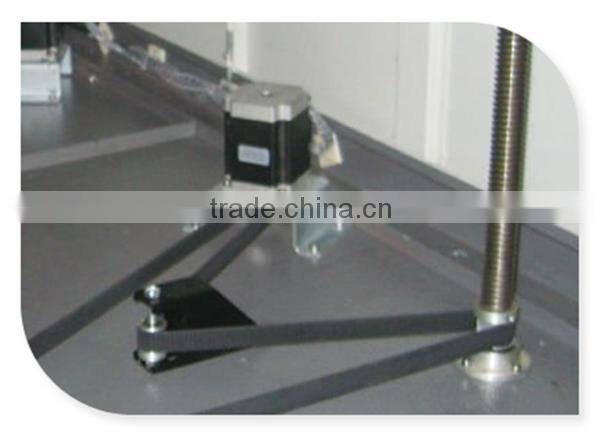

2.Motorized up-down table

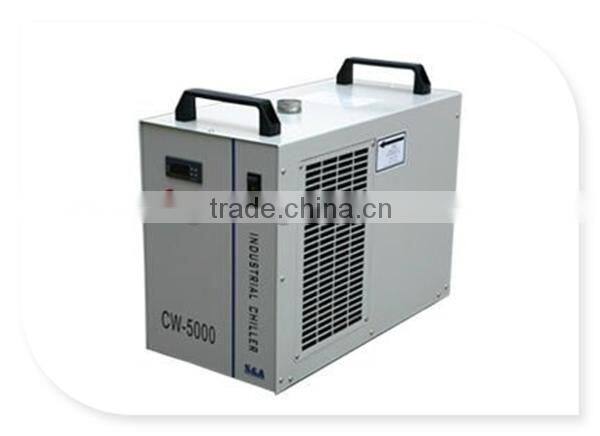

3.Water chiller
3.Red light position

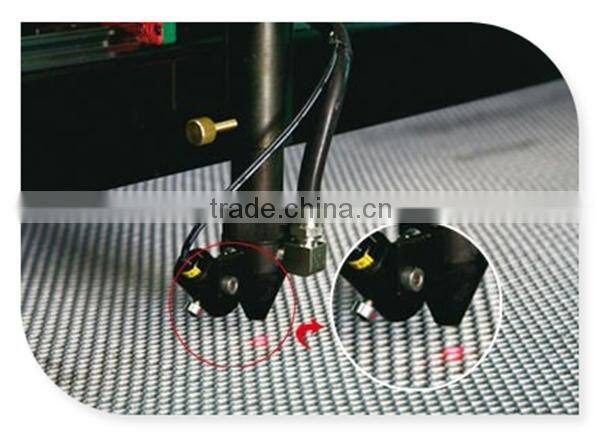

4.Auto Focus
5.HEPA filter
|
|
Recommended Wearing Spare Parts Laser tube Focus lens Reflect Mirror |
Applicable material
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass an d other nonmetal materials
Applicable material
advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry
Sample:

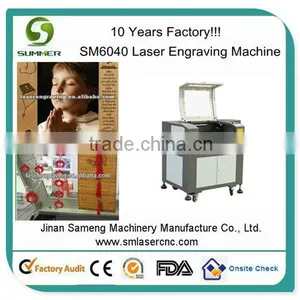

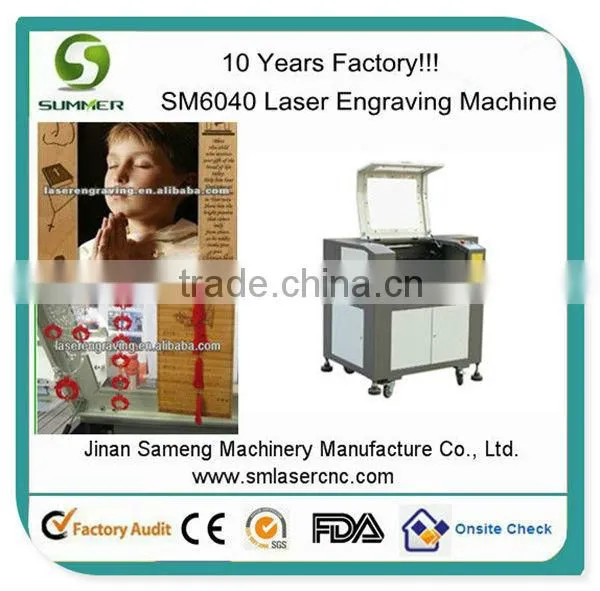

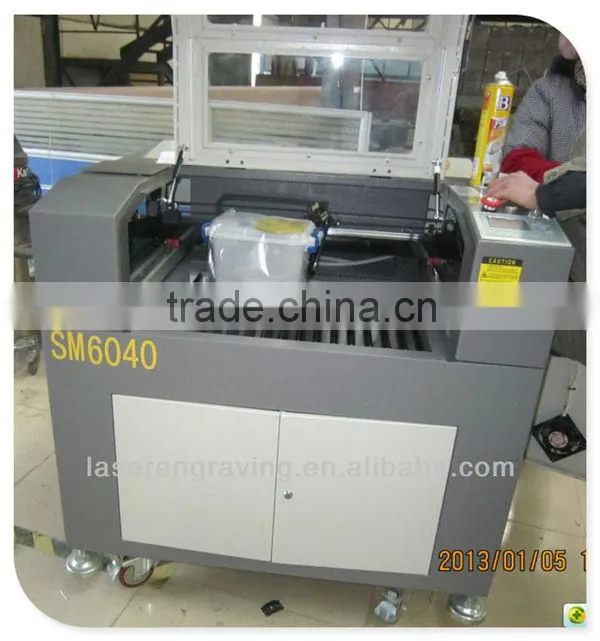

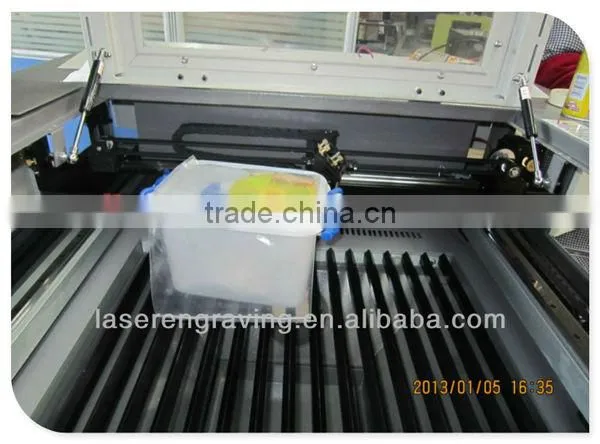

SM6040 co2 laser cutting machine photos:
Package:
Jinan sameng laser is specialized manufacturer of cnc router, laser cutting and engraving machine, laser marking machine with 11 years, located in jinan city. Has 8 producing lines for cnc router, cnc stone engraving machine, cnc advertising machine, plasma cutting machine, laser cutting machine etc.
1.We have 10 years producing experience, and keep R&D new product for market demand.
2.All workers have many years assembling experience, the are proficient with producing, so we can deliver the machine to you in time.
3.Sales persons and technical person are careful and patient, they can answer you any technical questions about machine, documents also will be prepared carefully and detailed.
4.we will provide you best after-sale service, every after-sales person has passport, if there is any big problem, we will send some person for maintenance in time. However, most of our laser machines run well all over the world, there is no big problem by now. If there is small problem, we can solve it within 24 hours.
So please give us a chance to provide you best service, with us, you will be the winner of laser-tech industry.
