Technical parameter:
Model | SM1325FB | |
Working Area (X*Y) | 1300mm*2500 | |
Table type | Knive table | |
Laser wavelength | 1080nm | |
Power and cutting head | 500W Raycus+Au3tech cutting Head | |
Laser power injection | 1.6 KW | |
Water chiller power | 6000 | |
X-axis and Y-axis Location accuracy | ±0.05mm | |
X-axis and Y-axis repeat location accuracy | ±0.01mm | |
Max moving speed | 30m/min | |
Max. cutting speed | 20m/min | |
Min. cutting line width | 0.02mm | |
Applicable material | Stainless steel, carbon steel, aluminum, copper, titanium plate, iron ,etc. | |
Cutting thickness | Stainless steel 3mm, aluminum 2mm, carbon steel 6mm | |
Whole machine floor space | 3.5×2.2×1.5m |
Applicable materials and industry
Suitable for stainless steel, carbon steel and some other metal materials precise cutting, applicable for aerospace technology, rocket, plane, robot,elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc
Samples:

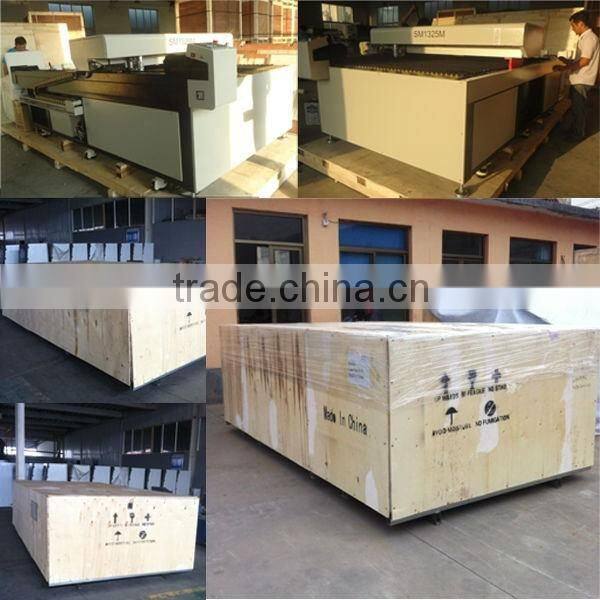

We use fumigation-free strong package, which can bear long time voyage:
Advantage of Fiber laser
1, High electro-optical conversion efficiency, 300% more efficient than CO2 laser
2, Low operating and maintenance cost, only 6% of CO2 laser
3, High cutting speed, 600%~1000% faster than CO2 laser
4, Small in size, light in weight, mobile working position, minimum space requirement

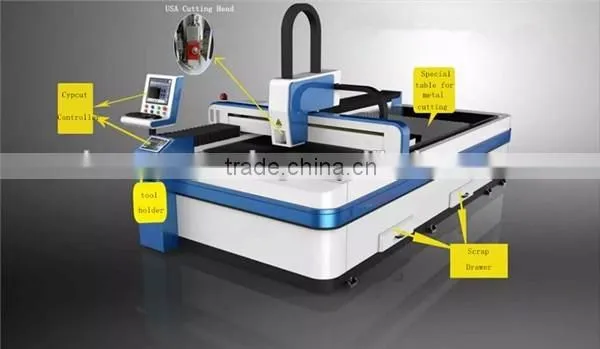

WHY Choose Sameng fiber laser cutting machine
Stable Z-axis and auto focus system
The laser head equipped with Au3Tech adjustor, Able to adjust focal length automatically, guaranty the best cutting quality, prevent material scrapping caused by changing of focal length when metal is not flat Due to non-contact sensing device, when controlled by system, able to achieve stable Z axis floating function, eliminate negative effects caused by non-flat material
Machine shell / Host machine
large scale cutting machine weight 3.7 tons. We take producing cost, machine stability and machine quality all into consideration. After seral times redesign we decide the final simple but strong design. Which produced by professional large scale equipments from military level industry, and passed aging treatment, can guaranty durability for long term use.
Transmission
Machine equipped famous brand high precision ball-screw system, linear guide and motor servo drive system, can guaranty the processing precision. The transmission system can match the CNC control system smoothly.
Control system
Use professional IPC, optimization cutting calculate system, touch screen easy to use, professional cutting software can design all kinds of graphic, text, support CAD, CorelDraw.
Other Machines we can make:
