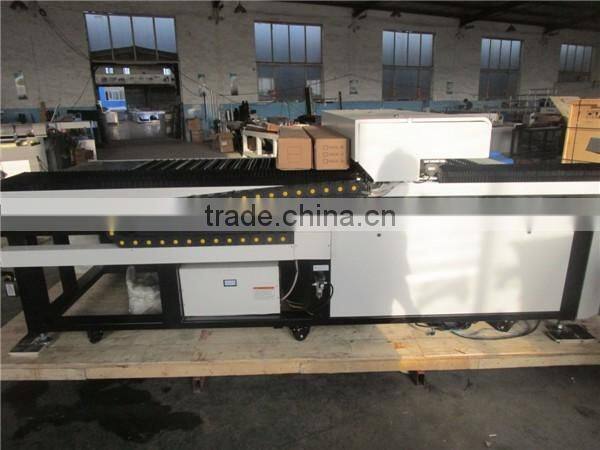

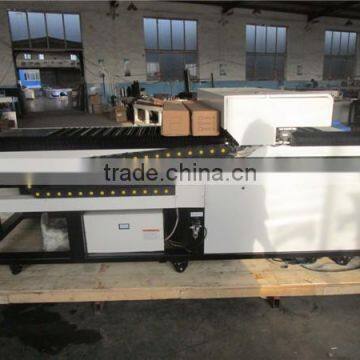

Help CenterSM1325M Metal Cutter Laser 1mm Steel Cutting 20mm Acrylic Cutting 10mm Wood Cutting Co2 Laser Steel Cutting Machine
Related Products
-
Acrylic Fabric Leather Cardboard Wood Engraving 4060 Laser Engraving MachineUS$ 1,999 - 7,999MOQ: 1 Set -
SSM1290 120*90 100W Cheap Double Heads Plywood Wood Mdf Engraving Cardboard Cutting High Quality Laser Engraving Machine Quality ChoiceUS$ 2,999 - 6,999MOQ: 1 Set
-
SM1290 1200*900 100W Double Heads High Quality Laser Engraving MachineUS$ 2,999 - 6,999MOQ: 1 Set
-
SM1625 With Vacuum Table Co2 Laser Tube 100w With Good Quality and Reasonable PriceUS$ 1,999 - 9,999MOQ: 1 Set
-
SM-1490 Brick Laser Engraving Machine on SaleUS$ 1,999 - 7,999MOQ: 1 Set

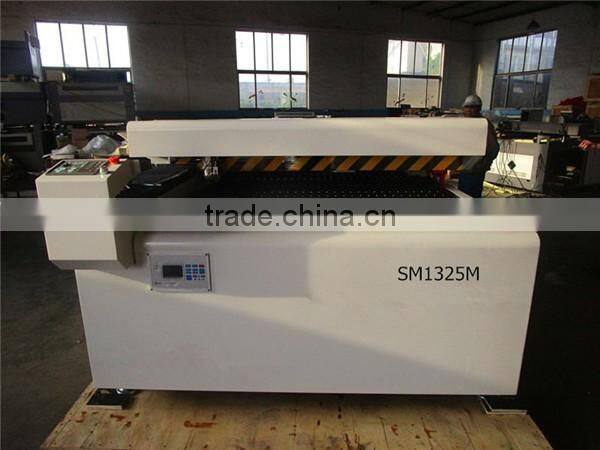

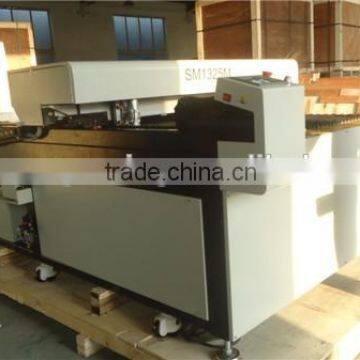

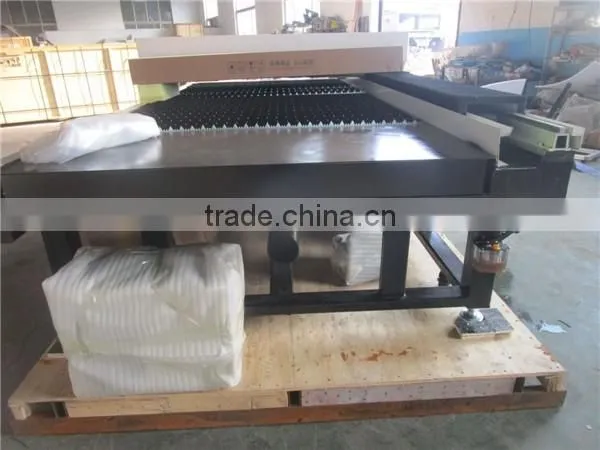

SM1325M is a mixing cutting machine, specialized in cutting stainless steel, carbon steel, MDF and acrylic.
Features:
High efficiency: The cutting speed of 1mm stainless steel is 1800 mm/min. 20mm acrylic with perfect cutting quality.
High precision: SM1325M is matched with the Panasonic Servo system and high precision ball screw system to ensure the high preiciion, running stable and long -operation.
Auto Height controlling system; if the sheet metal is not flat, the system can sense a distance from the nozzle to materal surface and follow the surface up and down automatically to adjust the certain focus distance for keeping high precision cutting quality
Fixed beam optical system: the laser beam is expanding, so the bigger the working area is, the more difficult for machine to get the same cutting quality over the whole working area. The fixed beam optical system can guarantee the consistent beam power and quality over the whole working area so that the machine can get the same cutting quality. High efficiency, high precision, stable performance and long life.
Low running cost about 5KVA/hour
Technical Parameter:
Model | SM1325M |
Laser power | 150W |
Working area | 1250 × 2500 mm |
Positioning accuracy | ±0.05 mm |
Positioning speed | 20m/min |
Weight | 1000 kg |
Power supply | 220V±10%/10A |
Machine Device:

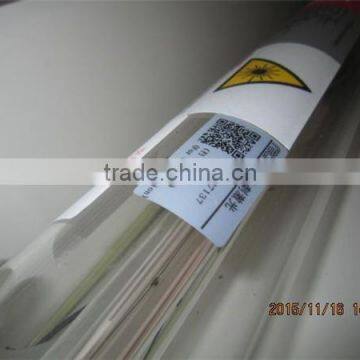

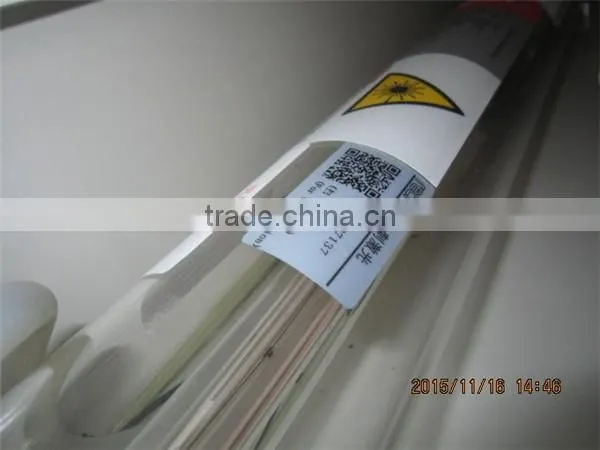

Laser tube (150w)
High precision ball-screw system
Panasonic Servo System
Untouched following system
Fixed beam optical system
Industrial chiller

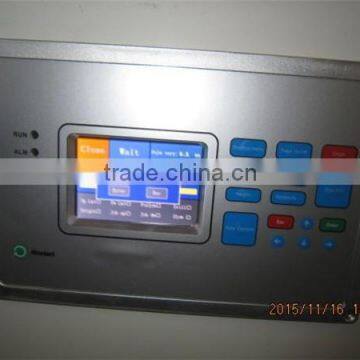

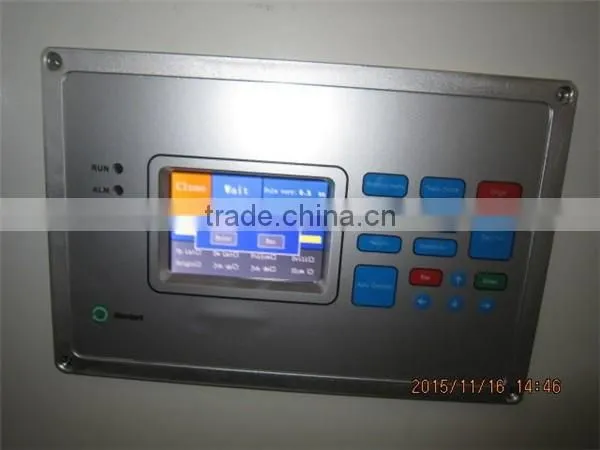

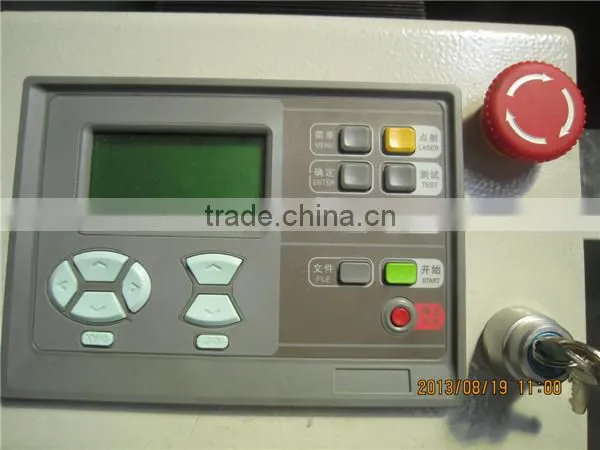

Off-computer controlling system
Application:
Laser power | 150w | |||
Material | Acrylic | MDF | Stainless steel | Carbon steel |
Cutting thickness | 30mm | 10mm | 1.5mm | 1.5mm |
150W Cutting speed:
Material | Cutting thickness | Cutting speed (mm/min) |
Stainless steel | 0.5mm | 2700 |
1mm | 1800 | |
1.5mm | 1000-1200 | |
Carbon steel
| 0.5mm | 3000 |
1mm | 1800 | |
1.5mm | 1000-1200 | |
Acrylic | 10mm | 300 |
20mm | 90-120 | |
MDF | 10mm | 300-400 |
Appliable industries:
Widely used in the line of advertising board, Sheetmetal structure, high and low Voltage elictric cupboard industry, spare parts of the textile machines, hardware, metal handicraft article, kitchen wares, cars, machines, elevators, spare parts of the elictric devices, spring pieces, spare parts of the subway and so on.
Appliable material:
Stainless steel, carbon steel, alloy steel, spring steel, Aluminum alloy, copper plate, Aluminum plate, gold, silver, Titanium, other metal plates and metal pipes
Laser machine cutting sample
About Machines:
1. We have the professional after-sale services teams. When you purchase a laser machine from our company, we will strongly suggest our customer send their engineer to our company to get a training free of charge; If their engineer has the basic knowledge of Coreldraw/AutoCAD/Photoshop, the training will be going more smoothly, and it will only take three days .
2. In the training , we will teach them the general operation rule, maintenance method, and the solution of the general problems of the machines
.
3. During the working process of the laser machine in customer side, if there is any very difficult problems which the customers don't know how to solve, we will provide the corresponding solution to customers via telephone or internet (such as e-mail, MSN , Skype)
.
4. At the same, if the problems still can't be solved via telephone and internet , we will send our technical engineer to visit customer side to solve the problem directly according to the actual situation at that moment.
Spare Parts
If the parts was broken during the guarantee period, we will provide a new parts free of charge; If the parts was broken during the guarantee period is expired, customer can buy a new one from our company
Enough accessories stock to assure in-time delivery and exchanging spare parts:

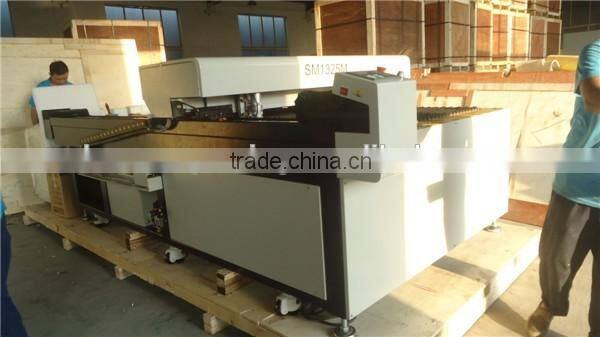

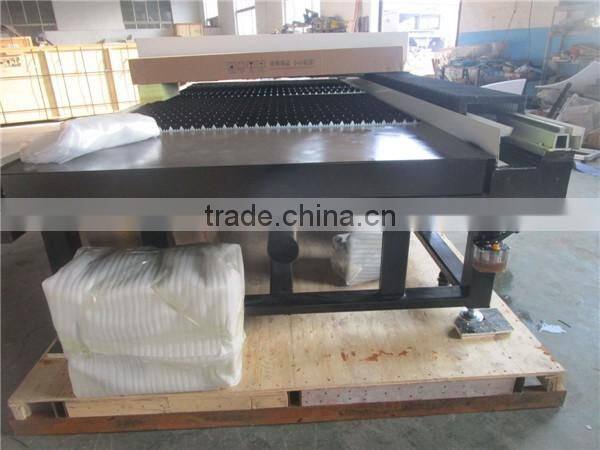

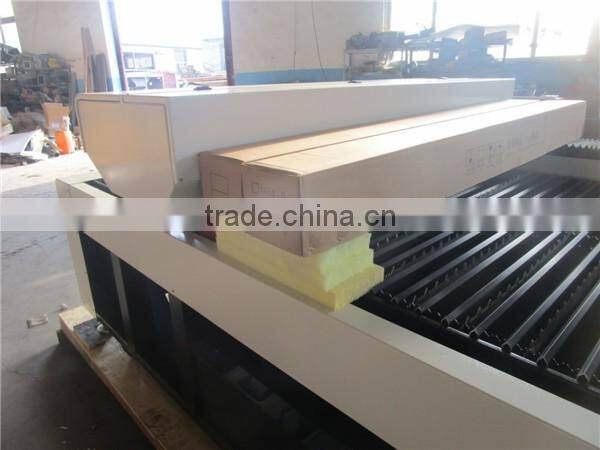

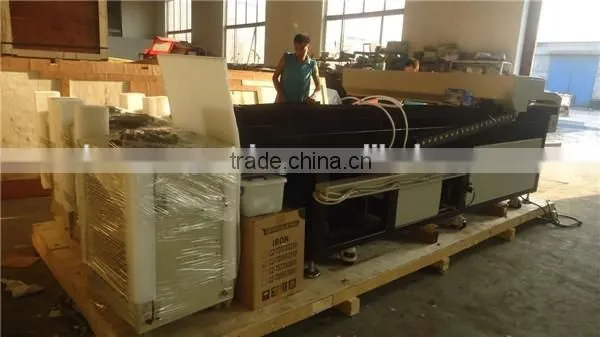

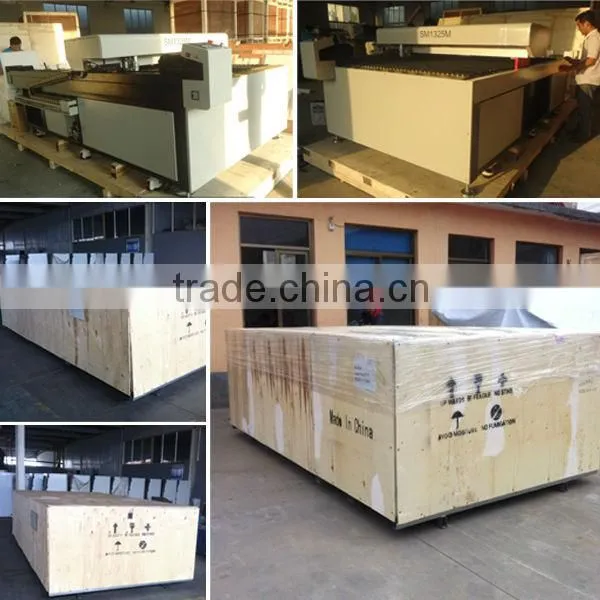

Package: fumigation-free wooden box

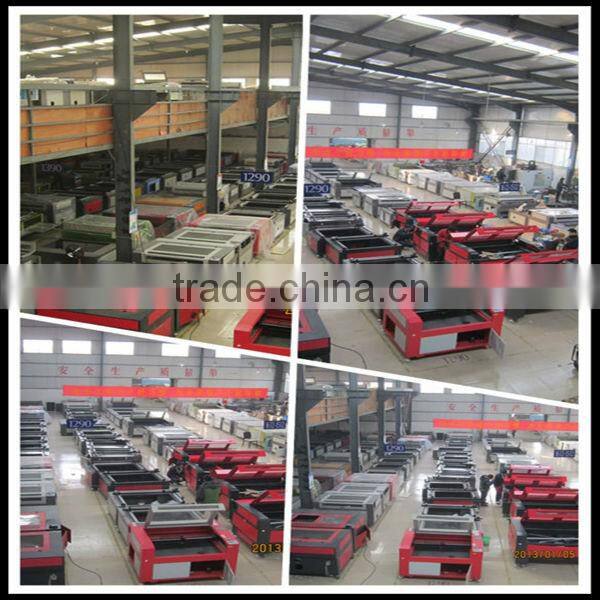

Company Introduction:
We are Manufacturer of Laser Cutting Machine, Laser Engraving Machine, Laser Marking Machine, CNC Router:
1.We have 10 years producing experience, and keep R&D new product for market demand.
2.All workers have many years assembling experience, the are proficient with producing, so we can deliver the machine to you in time.
3.Sales persons and technical person are careful and patient, they can answer you any technical questions about machine, documents also will be prepared carefully and detailed.
4.we will provide you best after-sale service, every after-sales person has passport, if there is any big problem, we will send some person to your factory for maintenance in time. However, most of our laser machines run well all over the world, there is no big problem by now. If there is small problem, we can solve it within 24 hours.
So please give us a chance to provide you best service, with us, you will be the winner of laser-tech industry.
