Product Details
Place of Origin: | Shandong, China | Brand Name: | Ruiheng | Model Number: | RH-geocell |
Material: | PP, Other, PP, PE |
Product Description
Geocell Introduction
Geocell is reinforced by high intensity HDPE broadband, after the powerful welding face to become a reticular lattice room structure. It retractile,transportation can shrink fold super to,when using ,open and filling earth-rock,or concrete materials,constitute has strong lateral restrictions and taking degrees structures ,it can be used as a cushion,dealing with weak foundation bearing capacity , also can be laid on slope surface slope protection structure constitute, still can be used to build retaining structures,etc
Geocell Specifications
Geocell To Support The Sewer
Model | Expanded Size (m) | Height (mm) | Welding distance (mm) | Yield strength of cell (Mpa) | Seam Peel strength (N) | Thickness (Smooth or Textured) | Perforated percentage |
TGLG500/400 | 5.7X6.22 | 50 |
330
400
500 |
≥20 | ≥500 |
Smooth sheet: 1,1.2,1.5,2mm
Textured sheet: 1.2,1.7,2mm |
15%, 20%, 40% , 60%, 80% |
TGLG75/400 | 5.7X6.22 | 75 | ≥750 | ||||
TGLG100/400 | 5.7X6.22 | 100 | ≥1000 | ||||
TGLG150/400 | 5.7X6.22 | 150 | ≥1500 | ||||
TGLG200/400 | 5.7X6.22 | 200 | ≥2000 | ||||
TGLG240/400 | 5.7X6.22 | 240 | ≥2400 | ||||
Remarks: Welding distance can be made: 330mm, 400mm, and 600mm, with various mesh sizes.
|

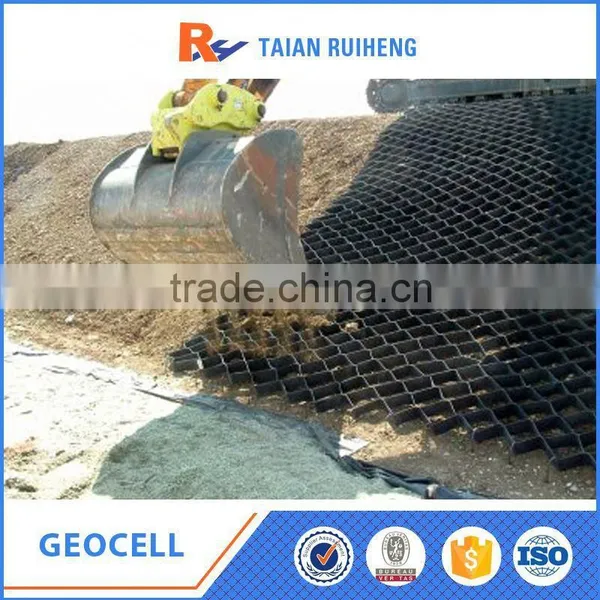

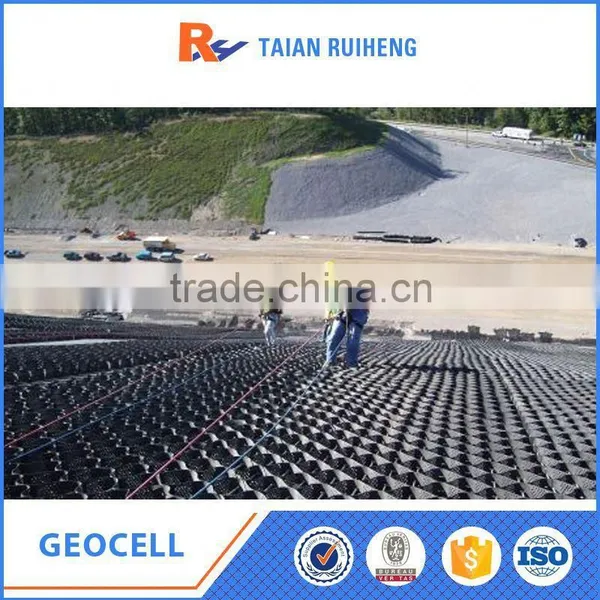

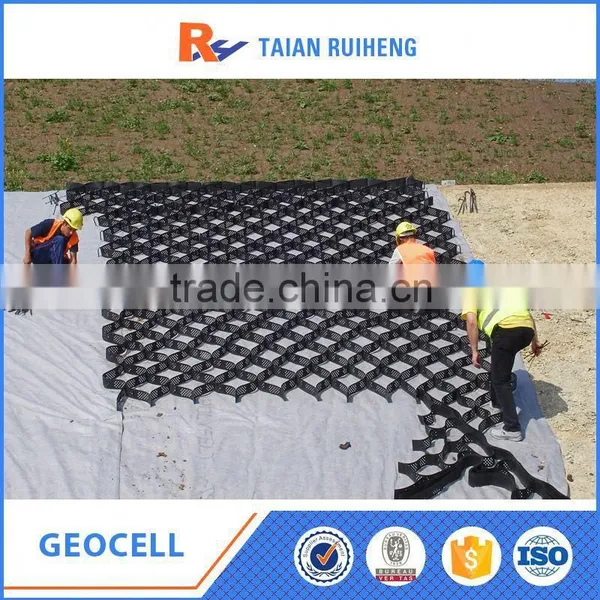

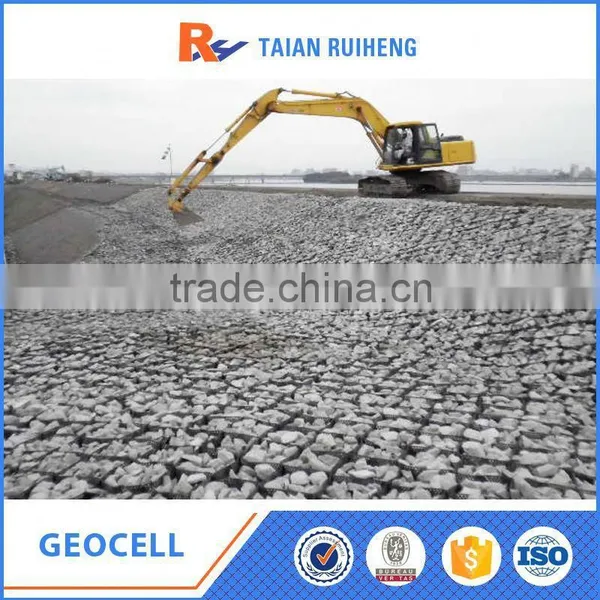

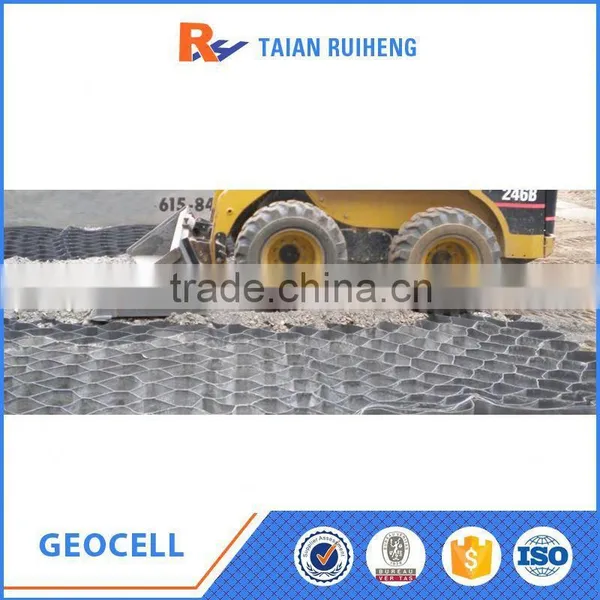

Geocell Applications
Geocell To Support The Sewer
A.solid railway roadbed
B.highway's soft foundation
C.withstand truck force embankments,retaining wall
D.running shallow river
E.pipeline and the sewer's support structure
F.to prevent landslides and load force by the hybrid wall
G.to use independent wall ,wharf ,breakwater and so on
H.to govern the desert, beaches and the riverbed , banks
Geocell To Support The Sewer
