US$ 2,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Contact Supplier Request Quote Chat Now
Jinan Sameng Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Laser Type CO2
Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Cutting Thickness 20mm
Cutting Area 1400*900mm
Cutting Speed 24m/min
CNC or Not Yes
Cooling Mode Water Cooling
Control Software lasercut
Graphic Format Supported AI, BMP, DST, DXF, PLT
Place of Origin Shandong, China
Brand Name Sameng
Model Number SM 1490 laser cutting machine
Certification CE, ISO, Other, CE, ISO, FDA
After-sales Service Provided Engineers available to service machinery overseas



Product Description





 laser cutting machine  SM1490 140*90 laser cutting machine with red dot up down table






Product Description





Product Features:

1.Adopt DSP control system, USB interface and can support AutoCAD, Coreldraw, CAD, CAM and other graphical software.

2.Adopt double orbit and four pieces of specialized laser lens, high precision, and the cutting surface is smoother than normal.

3.LCD display users can randomly access to store documents, human convenient.

4.Select sealed CO2 laser tube, the beam of light is of high quality and the life is long.

5.Equipped with the protected water-cooling system and it makes the continuous operation ability stable



Application Industry:

Advertisement industry: organic glass cutting, sign sculpture, double color boards sculpture, Acrylic engraving.

Gift industry: in the wood, bamboo, marble, double color boards, density board, crystal, leather and other materials beautifully carved on the words and patterns.

Cardboard printing: sculpture products, used for carving the rubber board, double board, plastic board sculpture and cutting.

Leather and clothing: in genuine leather, synthetic leather, artificial leather, cloth on the complex characters and graphics of engraving and cutting, carve patterns or designs on woodwork, hollow out, computer embroidery cutting processes.

Other industries: model making, decoration, the product packaging engraving.



Application materials:

Wood,Paper,cloth.bowlder,Bamboo,jade,marble,granite,acrylic,crystal,leather,plastic,paper,rubber,ceramic,glass,MDF,PVC,rubber sheet and other non-metal materials etc



Technical Parameters:



Working area1400*900mm
Laser TypesHermetic CO2 Laser Tube 40W(optional:60W/80w)
Engraving speed0-75,000mm/min
Cutting speed0-40,000mm/min
Location precision<=0.01mm
Resetting positioning accuracy0.01mm
Power supplyAC 110V-220(+,-)10% / 50-60Hz
Minimum shaping characterEnglish 1.0 x 1.0mm Chinese 2.0*2.0mm
Driving systemStepper
Cooling modeWater-cooling and protection system
Compatible SoftwareCoreDraw, AutoCAD, PhotoShop
Graphic format supportedBMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DWG,etc

Standard accessories

(01) User manual of machine(English version)
(02) User manual of software(English)
(03) USB cable (04) Communication cable
(05) Air exhaust fan (06) Air pump
(07) 3 reflecting mirrors (has been installed in the machine)
(08) One focus lens(has been installed in the machine )
(09) One laser tube(has been installed in the machine)
(10) Water chiller



Optional accessories



1). Lifting platform: to adjust the height of table, for putting 450mm depth materials.

2). Rotary axis: to engrave cylindrical shape materials, such as pens, bottles and so on.

3). Chiller unit: to cool circular water.

4). Focus lens: different focus lens.

5). Red light position: to realize simulation engraving, quickly find the position.

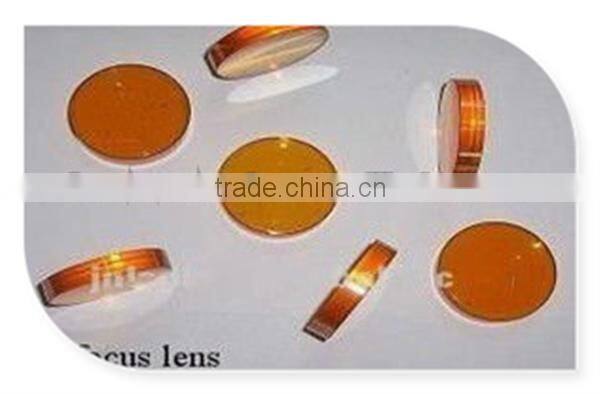

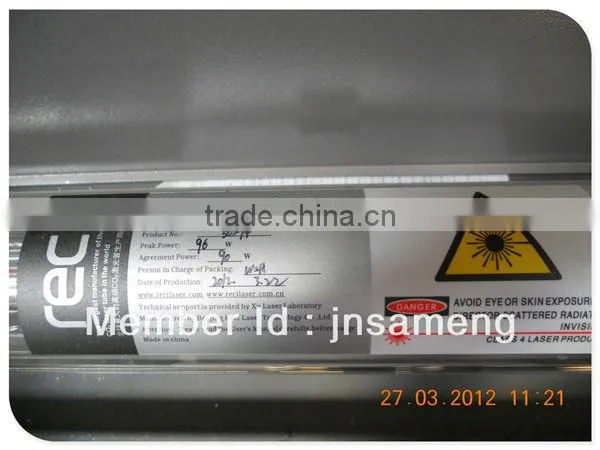

sealed CO2 laser tube and focus lens

SM1490 140*90 laser cutting machine with red dot up down table

SM1490 140*90 laser cutting machine with red dot up down table

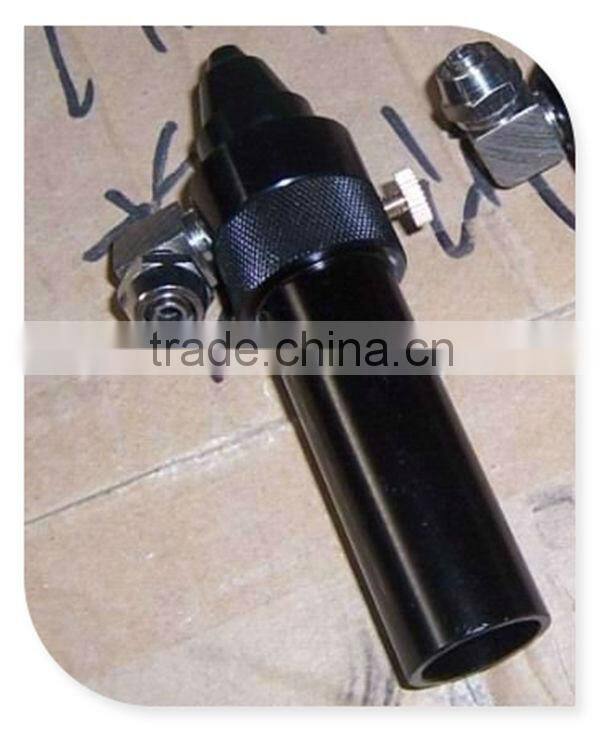

Laser head and red light position

SM1490 140*90 laser cutting machine with red dot up down table





stepper motor and gear



 SM1490 140*90 laser cutting machine with red dot up down table







Our Services







Warranty and Service:

1.one year equipment warranty and maintenance for lifetime.

2.Free installation and test before sending and free training for operators

3.Advice for the solutions best for customers requirements

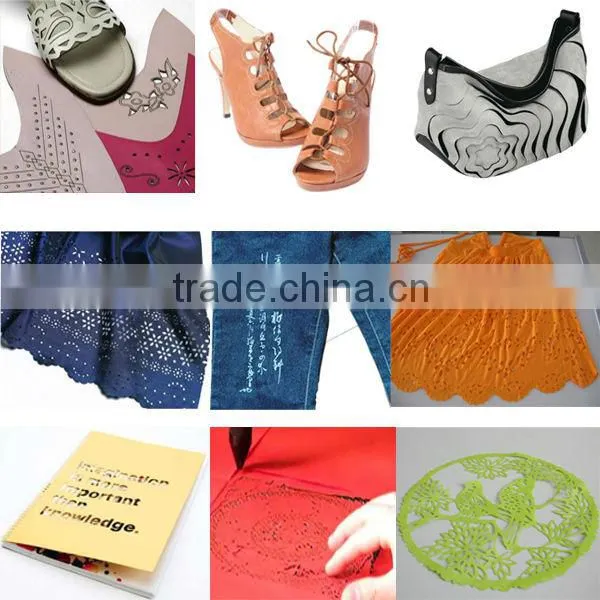

Samples:



 SM1490 140*90 laser cutting machine with red dot up down tableSM1490 140*90 laser cutting machine with red dot up down tableSM1490 140*90 laser cutting machine with red dot up down tableSM1490 140*90 laser cutting machine with red dot up down table

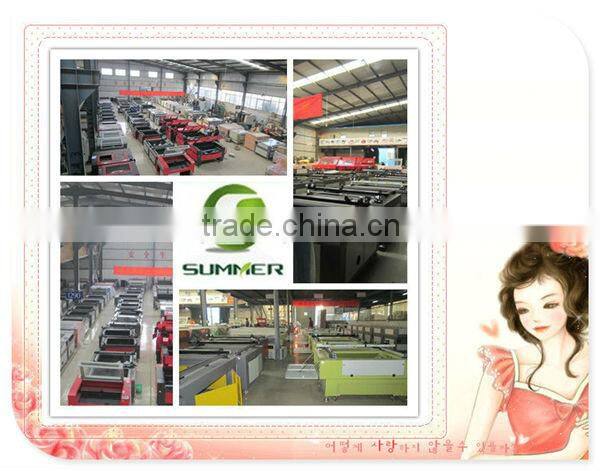

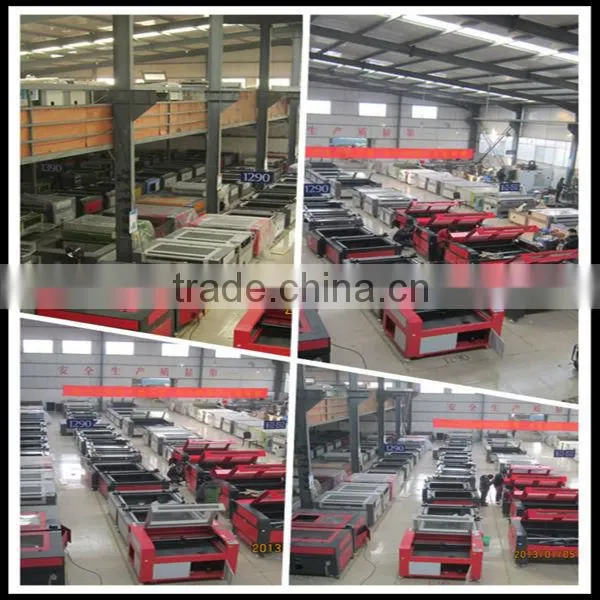

Sameng Laser Machine Making Workshop:



SM1490 140*90 laser cutting machine with red dot up down tableSM1490 140*90 laser cutting machine with red dot up down tableSM1490 140*90 laser cutting machine with red dot up down table

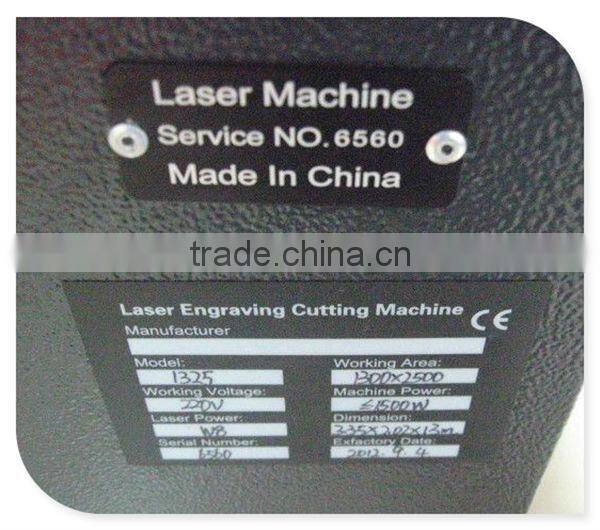

Each machine has unique service number, which make it easier for after-sale service:



SM1490 140*90 laser cutting machine with red dot up down table







Company Information







Company Introduction:



We are Manufacturer of Laser Cutting Machine, Laser Engraving Machine, Laser Marking Machine, CNC Router:



1.We have 10 years producing experience, and keep R&D new product for market demand.



2.All workers have many years assembling experience, the are proficient with producing, so we can deliver the machine to you in time.



3.Sales persons and technical person are careful and patient, they can answer you any technical questions about machine, documents also will be prepared carefully and detailed.



4.we will provide you best after-sale service, every after-sales person has passport, if there is any big problem, we will send some person to your factory for maintenance in time. However, most of our laser machines run well all over the world, there is no big problem by now. If there is small problem, we can solve it within 24 hours.



So please give us a chance to provide you best service, with us, you will be the winner of laser-tech industry.
