denim jeans laser engraving machine
denim jeans laser engraving machine Product features:
The machine is especially designed for garment industry, it can do accurate cutting on different kinds of on
various textile fabrics in random figure. Adopt in size crawler working table and negative pressure absorb

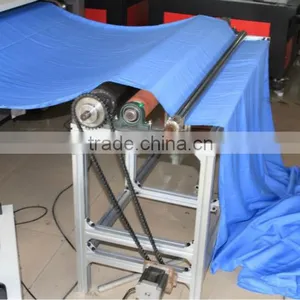

conveyer, so it can ensure the smooth of the material when cutting. . Working in with feeding system,it can
meet the requirement for continuous and automatic batch cutting.
denim jeans laser engraving machine Specification:
| SM-1625 Laser Fabric Cutting Machine with auto feeder system |
Machine Performance:can cut roll to roll fabrics, clothes, leather etc. | |
Laser-type | Hermetic and detached CO2 laser tube |
Laser-power | 80W |
Cooling Mode | Circulating-water-cooling |
Power Adjustment | 0-100% controlling, no segment and adjusting by software |
Machine Control and Drive | Speedy DSP controlling, stepper motor |
Max Engraving Speed | 1200mm/s |
Max Cutting Speed | 500mm/s |
Repeating Location | ±0.01mm |
Minimum Character | Chinese character 1.5mm, crisscross-row 1mm |
Max Power | <2500W |
Adjustable Up-down Distance of Laser Head | 30mm |
Working Travel Area | 1600*2500mm, 1600mm width with infinity material-feeding |
Table Area | 1650*2550mm |
Up-down Range of Working Table | 180mm |
Working Voltage | AC220V 50Hz |
Working Environment | Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed |
Controlling Software Language | English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Dictate Format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting |
Packaging | Wooden box |
Machine Color | Red/Grey |
Delivery Time | 20 working days |
Payment | T/T |
Optional Equipment | Auto Focus |
| Rotary Attachment |
| Water-cooling unit |
| Red-light position |
| Air Filter |
| DSP Off-line operation with usb flash |
denim jeans laser engraving machine Characteristics:
1) Japanese technical engine running, making sure the products to run at high aped and high precision.

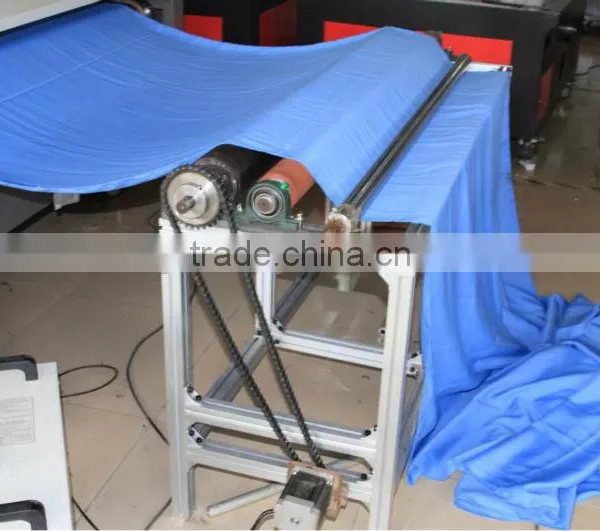

3) Channel feeding, the feeding can be unlimited
4)The body of the machine adopts high quality aluminum, professional model and has the specification of
strong and not easy for distortion.
5) The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip
adopts double face CPU
denim jeans laser engraving machine Applicable materials:
wood, MDF, balsa, timber, veneer, plywood, bamboo, acrylic, crystal, glass, plexiglass, mirror glass, textiles,
garments plastics, PMMA, paper, cardboard, foam, foils and films, packaging film, PES, Laminate sheet,
double color board/plate, granite, marble, slate, leather, rubber, ceramic and other nonmetal materials.
denim jeans laser engraving machine Applicable industries:
advertisement, arts and crafts, gifts, printing and packaging, leather industry, garment cloths industry, model
industry, gravestone/combstone industry, photographic sutio industry, computerized embroidery and clipping,
paper industry and decoration industry
denim jeans laser engraving machine Optional Parts
Warranty and Service:
1.one year equipment warranty and maintenance for lifetime.
2.Free installation and test before sending and free training for operators
3.Advice for the solutions best for customers requirements.
4.free training and sample provided
Jinan Sameng Machinery Manufacture Co.,Ltd specialized in laser engraving machine, laser
machine, CNC router, Laser marking machine etc. we are looking for agents and hope to cooperate with you
1.We have 10 years producing experience, and keep R&D new product for market demand.
2.All workers have many years assembling experience, the are proficient with producing, so we can deliver the machine to you in time.
3.Sales persons and technical person are careful and patient, they can answer you any technical questions about machine, documents also will be prepared carefully and detailed.
4.we will provide you best after-sale service, every after-sales person has passport, if there is any big problem, we will send some person to your factory for maintenance in time. However, most of our laser machines run well all over the world, there is no big problem by now. If there is small problem, we can solve it within 24 hours.
So please give us a chance to provide you best service, with us, you will be the winner of laser-tech industry.
Sample

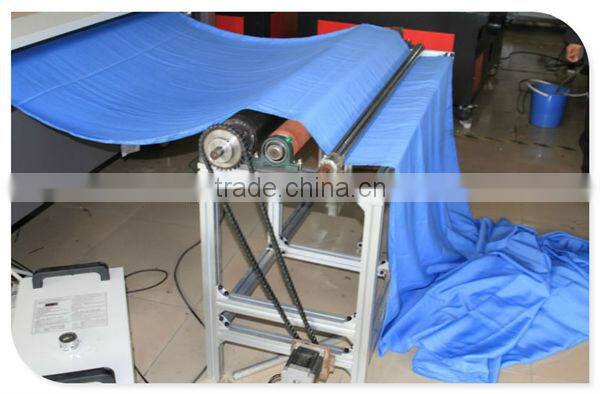

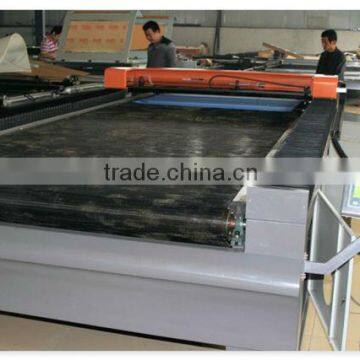

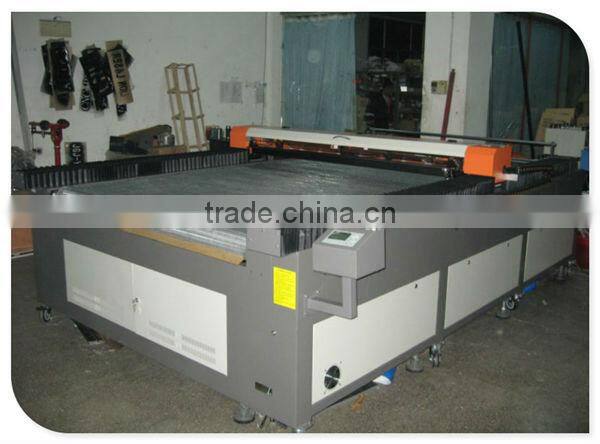

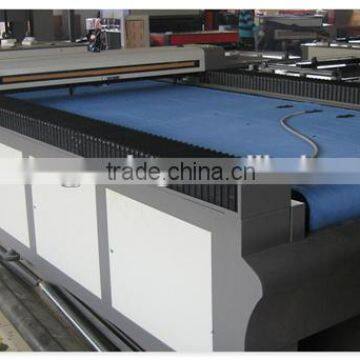

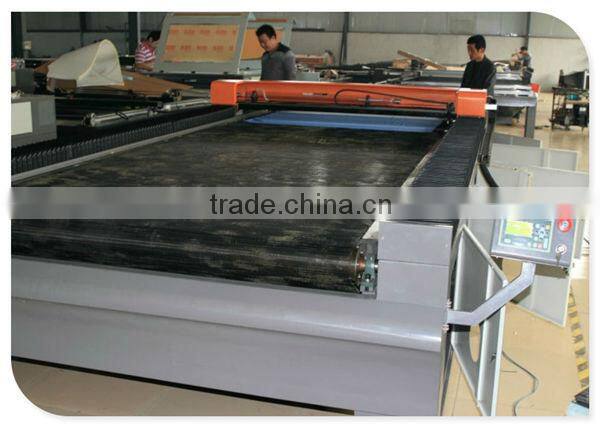

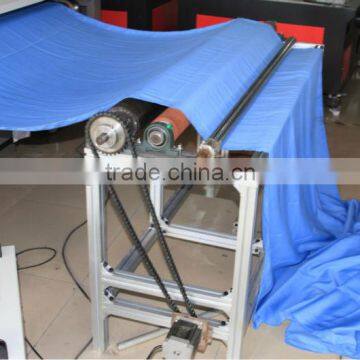

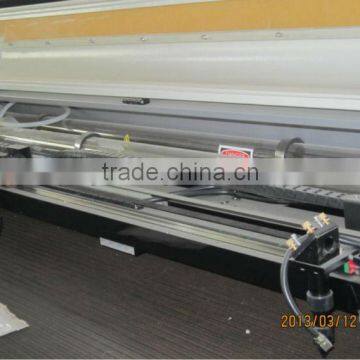

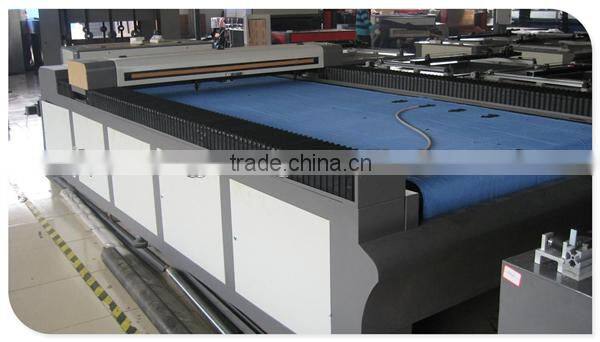

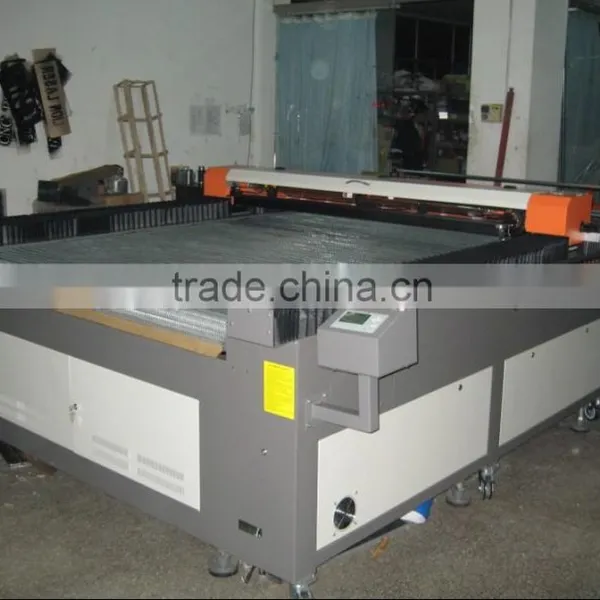

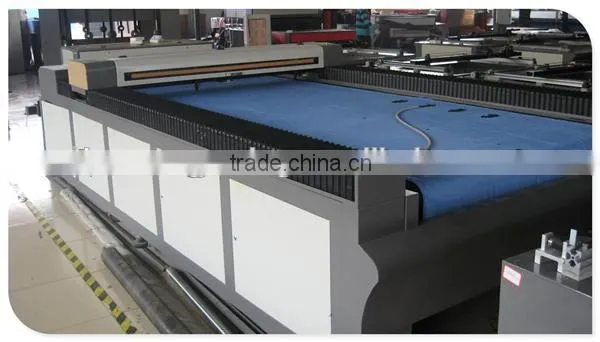

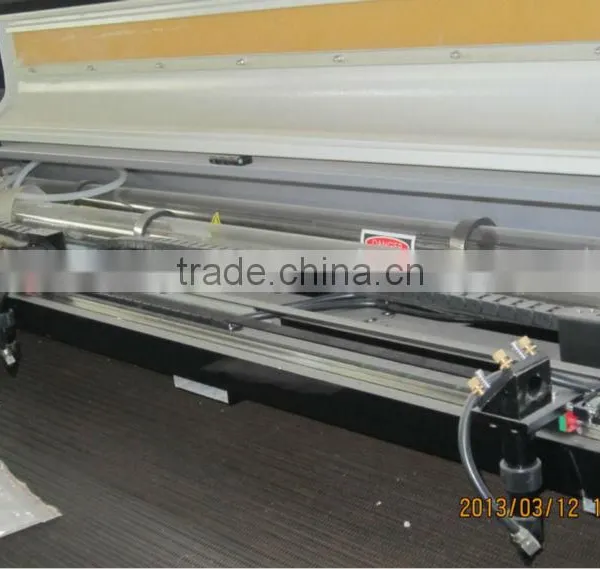

denim jeans laser engraving machine Machine Picture:

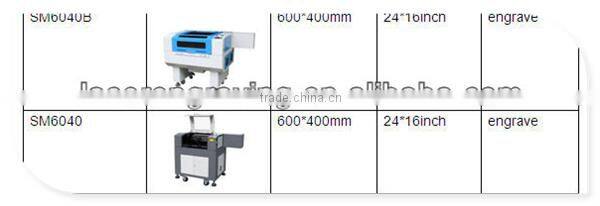

Other Models of laser cutting and engraving machine:
