Exporting auto feeding laser cutting machine with 80w laser tube
Technical parameters
Models | SM1612 | |
Laser power | 80W laser tube | |
Working area(mm) | 1600*1200mm | |
Gross power | <=2500W | |
Laser type | CO2 sealed laser tube | |
Engraving speed | 0~75,000mm/min | |
Max cutting thickness | 30mm | |
Cutting speed | 0~40,000mm/min | |
Resetting positioning accuracy | <0.01mm | |
Power supply | 220V±10% 50HZ or 110V±10% 60HZ | |
Minimum forming character | English:1.0*1.0mm | |
Software supported | ArtCut,CorelDraw,Photoshop,AutoCAD | |
Graphic format supported | PLT,DXF,BMP,JPG,GIF,PGN,TIF | |
Engraver for curve surfaces(option) | We can provide rotary system so as to engrave on curve surface.(with rotary axis) | |
Cooling mode | Water cooling and protection system | |
Maximum height of materials to engrave(option) | 380mm(by motor) with up and down worktable | |
Laser tube(life hours) | 10000~12000hours | |
Working environment | Temperature:0~45 | Humidity:0%~95% |
Control system and driver | High speed DSP control,high subdivision driver,stepper motor | |
Laser output control | 0~100% no section controls.Soft inner 0~100% adjustable | |
Standard machine | DSP control system,stepper motor and driver,1 focus lense,3 reflect mirrors,co2 sealed glass laser tube,water pump.air pump,exhaust fans,blower,air compressor,power supply,honeycomb or knives worktable,blower,CD video,user manual,design software,soft dog | |
Extra parts | Up and down worktable,rotary axis | |
1.Adopt the advanced DSP control technology, high precision
2.Strong laser beam, non-contact cutting/engraving, avoid scratching or pressing the workpieces.
3.Smooth cutting surface, high cutting speed, strong cutting force, high working efficiency.
4.Unique integrated controller, all operations can be done on user-friendly display.
5.Long lifetime of laser tube: 12K hours
crafts gifts laser engraving machine parts

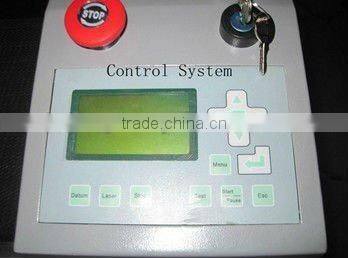

DSP control system | It adopts current most mature technology control system,with stable performance,easy operation,practical function and friendly operation surface. |
| Air pump provided with strong air current,and it can effectively avoid the material damage which is caused by high temperature of laser processing,thus ensure there is no deformation for processed materials. |
| The laser tube from china top manufacture,it has perfect light,it can supply effective engraving precision of user’s materials,it also can cut common non-metal materials with high precision. |
Blower | Can better extract the smoking which is caused by machine working,keeping working environment clean and playing in a role in protecting environment effectively. |
Extra parts
CW3000 Chiller | CW3000 with water circulation function, is good to protect machine and laser tube, if water temperature become hot, water need to be changed. Generally, we recommend it for 80W laser machine |
CW5000 Chiller | CW5000 with both water circulation and cooling function, can set temperature, needn’t change water, even it is hot summer outside more than 35 degree, it can keep water at 20-30 degree. 25 degree is best temperature for laser tube. It is suitable for laser machine with more than 100W laser power, include 100W |
Applicable materials:
Non-metal materials such as double color board, Plexiglas,
glass, bamboo and wood, rubber, marble, granite and tiles, leather
Applicable industry:
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry.
crafts gifts laser engraving machine Samples
According to your requirement,you also can choose 1300*2500mm working size or more.
